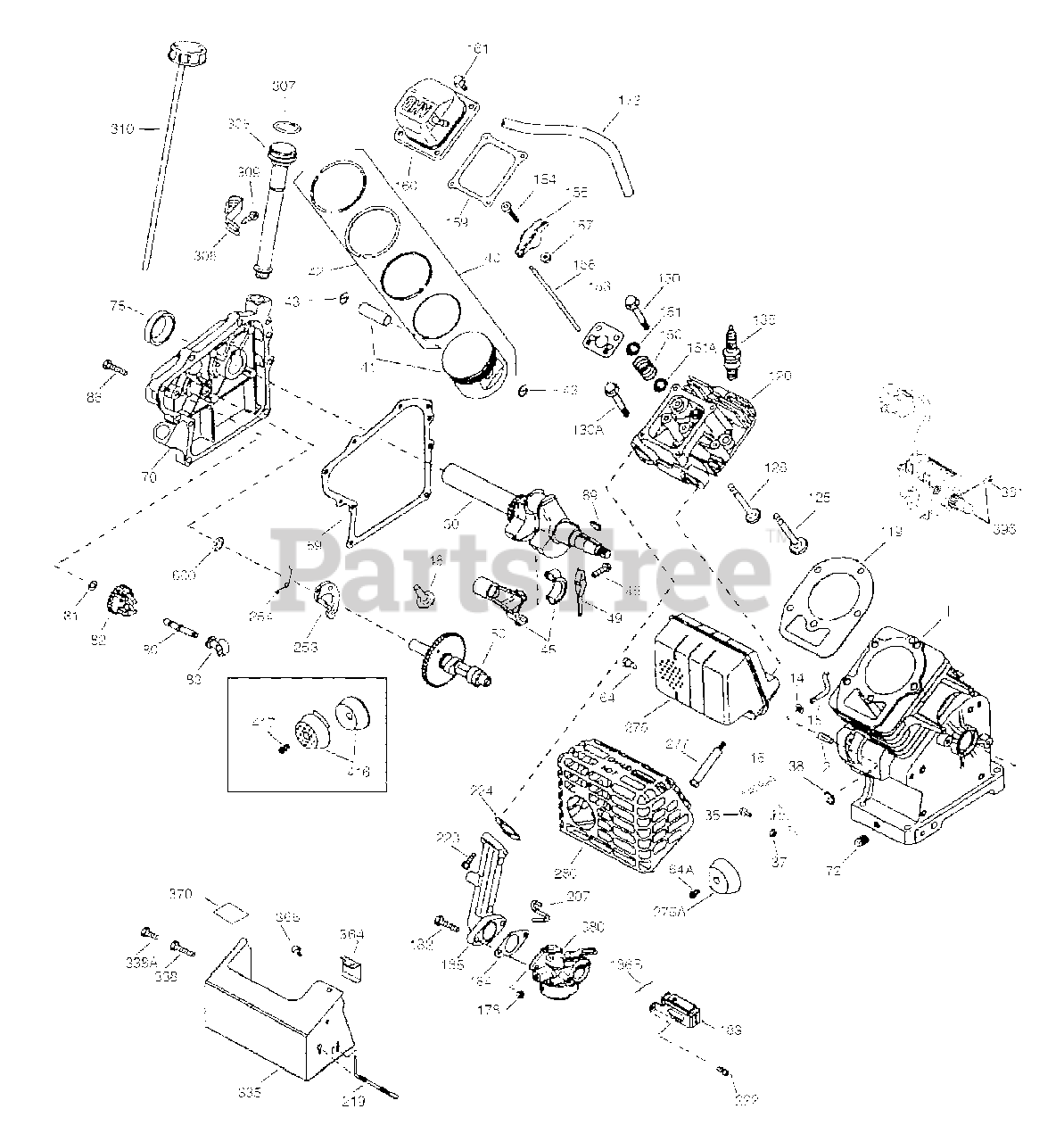

721 E (31AE295-100) - Cub Cadet 21" Snow Thrower Engine (2002) General Assembly Parts Diagram

21" Snow Thrower Engine

General Assembly Parts Diagram

  • Title

1

Cub Cadet TC-37120B

Cylinder

Note: (Incl. 2 & 20)

$116.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Cub Cadet TC-651052

Washer

$1.99

$

In Stock, Qty 5

0

15

Cub Cadet TC-37108

Governor Rod

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet TC-37110

Governor Lever

$5.49

$

In Stock, only 1 left!

0

30

Cub Cadet TC-37681

Crankshaft

$

$

Not available

35

Cub Cadet TC-651053

Screw, 10-32 x 63/64"

$1.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Cub Cadet TC-37109

Retaining Ring

$1.99

$

In Stock, Qty 5

0

40

Cub Cadet TC-40004

Piston, Pin & Ring Set (Std.)

$74.99

$

In Stock, only 1 left!

0

40

Cub Cadet TC-40005

Piston, Pin & Ring Set (.010" OS)
(Superseded to TC-40045)

$

$

Not available

41

Cub Cadet TC-36070

Piston & Pin Ass'y (Std.)

Note: (Incl. 43)

$

$

Not available

41

Cub Cadet TC-36071

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Not available

42

Cub Cadet TC-40006

Ring Set (Std.)

$42.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-40007

Ring Set (.010" OS)

$34.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Cub Cadet TC-32875A

Connecting Rod Ass'y
(Superseded to TC-32875B)

Note: (Incl. 46 & 49)

$47.99

$

In Stock, only 1 left!

0

46

Cub Cadet TC-32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Cub Cadet TC-35616

Valve Lifter

$

$

Not available

49

Cub Cadet TC-36611

Oil Dipper

$1.99

$

In Stock, only 1 left!

0

50

Cub Cadet TC-37040

Camshaft

Note: (Incl. 253 & 254)

$30.99

$

In Stock, only 1 left!

0

64A

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

64

Cub Cadet TC-651027

Screw, 1/4-20 x 27/32"

$3.49

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-36624

Cylinder Cover Gasket

$6.99

$

In Stock, only 1 left!

0

70

Cub Cadet TC-36625

Cylinder Cover

Note: (Incl. 75 thru 83)

$111.99

$

Usually ships in 3-12 days

0

72

Cub Cadet TC-27642

Oil Plug

$1.99

$

In Stock, only 3 left!

0

75

Cub Cadet TC-27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

80

Cub Cadet TC-30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

81

Cub Cadet TC-30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Cub Cadet TC-30591

Governor Gear Ass'y

Note: (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Cub Cadet TC-36057

Governor Spool

$1.99

$

In Stock, only 4 left!

0

86

TC650488

Screw, 1/4-20 x 1-1/4"

$

$

Not available

89

Cub Cadet TC-610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

119

Cub Cadet TC-36719

Cylinder Head Gasket

$10.99

$

In Stock, only 2 left!

0

120

Cub Cadet TC-37474

Cylinder Head

$

$

Not available

125

Cub Cadet TC-36471

Exhaust Valve (Std.)

Note: (Incl. 151)

$13.99

$

Usually ships in 3-12 days

0

125

Cub Cadet TC-36472

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

126

Cub Cadet TC-37711

Intake Valve (Std.)

Note: (Incl. 151)

$13.99

$

In Stock, only 1 left!

0

130A

Cub Cadet TC-650999

Screw, 5/16-18 x 2-41/64"

$3.99

$

In Stock, Qty 5

0

130

Cub Cadet TC-650912

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 2 left!

0

135

Cub Cadet TC-34645

Resistor Spark Plug (RN4C)
(Superseded to RN4C)

$4.49

$

In Stock, Qty 20+

0

150

Cub Cadet TC-37039

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151A

Cub Cadet TC-40016A

Intake Valve Seal

$7.49

$

In Stock, only 1 left!

0

151

Cub Cadet TC-31673

Valve Spring Cap

$1.99

$

In Stock, only 1 left!

0

153

Cub Cadet TC-36649

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

154

Cub Cadet TC-650913

Rocker Arm Stud

$1.99

$

Usually ships in 3-12 days

0

155

Cub Cadet TC-35624A

Rocker Arm

$26.99

$

Usually ships in 3-12 days

0

157

Cub Cadet TC-650914

Nut, 1/4-28

$1.99

$

Usually ships in 3-12 days

0

158

Cub Cadet TC-36629

Push Rod

$3.99

$

In Stock, only 2 left!

0

159

Cub Cadet TC-35626

Rocker Arm Cover Gasket

$3.99

$

In Stock, only 1 left!

0

160

Cub Cadet TC-36630A

Rocker Arm Cover

$

$

Not available

173

Cub Cadet TC-37676

Breather Tube

$3.99

$

Usually ships in 3-12 days

0

178

Cub Cadet TC-650852

Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

182

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

183

Cub Cadet TC-36867

Choke Bracket

$

$

Not available

184

Cub Cadet TC-26756

Carburetor To Intake Pipe Gasket

$2.99

$

In Stock, Qty 10

0

185

Cub Cadet TC-36631

Intake Pipe

$43.99

$

Usually ships in 3-12 days

0

186B

Cub Cadet TC-36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

207

Cub Cadet TC-36632

Throttle Link

$1.49

$

In Stock, Qty 18

0

219

Cub Cadet TC-36868

Choke Rod

$

$

Not available

222

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

223

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

224

Cub Cadet TC-36581

Intake Pipe Gasket

$1.49

$

In Stock, Qty 13

0

253

Cub Cadet TC-36701

Compression Release Weight

$5.49

$

In Stock, only 2 left!

0

254

Cub Cadet TC-36702

Compression Release Spring

$1.99

$

In Stock, only 2 left!

0

275

Cub Cadet TC-37595

Muffler
(Superseded to TC-37595A)

$30.99

$

Usually ships in 3-12 days

0

275A

Cub Cadet TC-36663

Exhaust Deflector(Black)

$7.49

$

Usually ships in 3-12 days

0

277

Cub Cadet TC-650988

Screw, 1/4-20 x 2-9/32"

$4.49

$

In Stock, only 3 left!

0

305

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

307

Cub Cadet TC-35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-37079

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

309

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

310

Cub Cadet TC-36902

Dipstick

$7.49

$

Usually ships in 3-12 days

0

335

Cub Cadet TC-36873

Carburetor Cover
(Superseded to TC-36873A)

$

$

Not available

338A

Cub Cadet TC-28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 1 left!

0

338

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

361

Cub Cadet TC-650990

Screw, T-30, 1/4-20 x 15/32"

$3.99

$

In Stock, only 4 left!

0

364

Cub Cadet TC-36872

Carburetor Cover Bracket

$1.99

$

In Stock, only 2 left!

0

365

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

370I

Cub Cadet TC-37119

Warning Decal

$2.49

$

Usually ships in 3-12 days

0

380

Cub Cadet TC-640298

Carburetor

Note: (Incl. 184)

$

$

Not available

396

Cub Cadet TC-37657

Electric Starter Motor (120V)

$

$

Not available

416

Cub Cadet TC-36085

Spark Arrestor Kit

Note: (Incl. 417) (Optional)

$12.99

$

Usually ships in 3-12 days

0

417

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

Note: (Optional)

$1.99

$

Usually ships in 3-12 days

0

600

Cub Cadet TC-651013

Washer

$1.99

$

In Stock, only 2 left!

0
