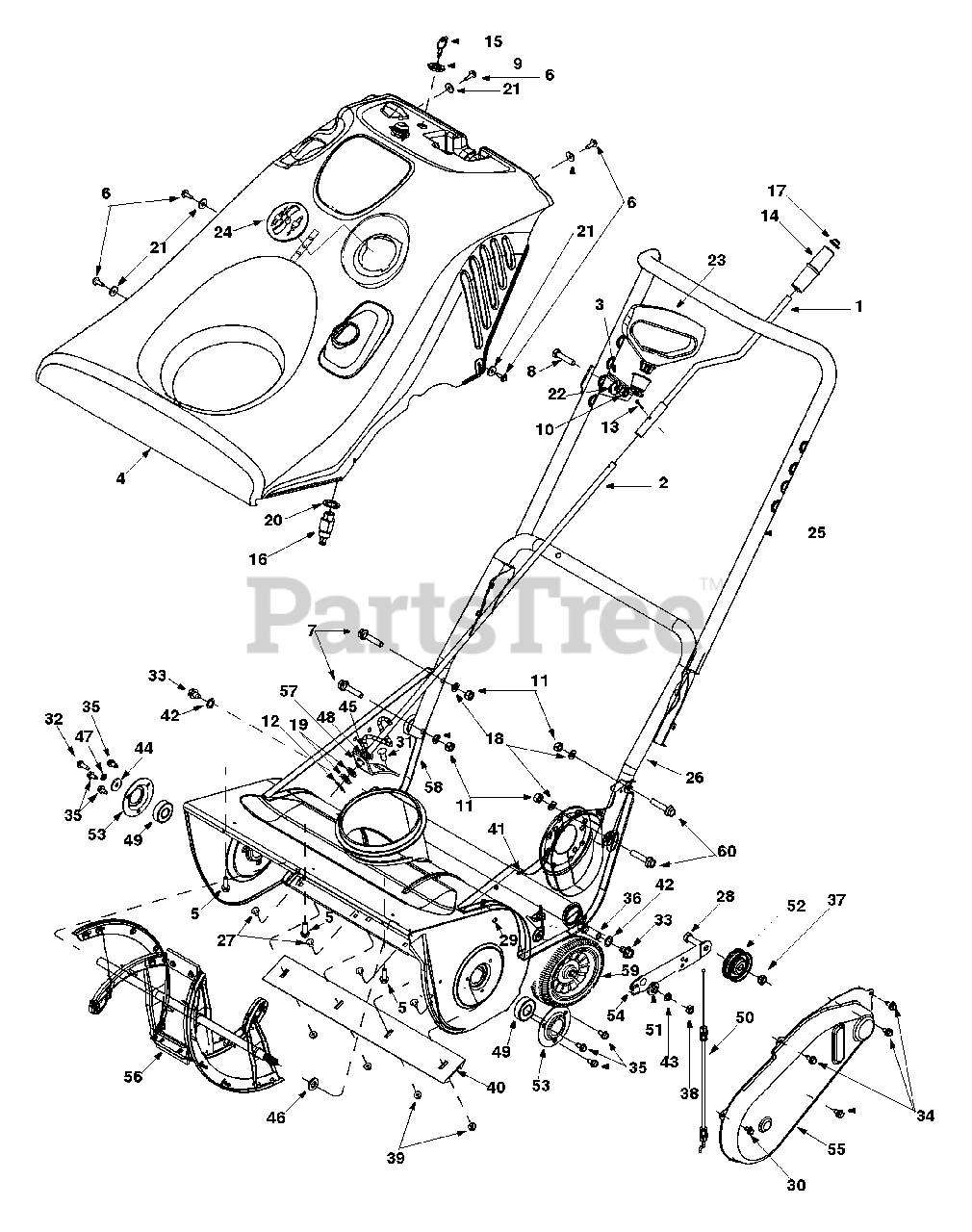

721 E (31AE295-100) - Cub Cadet 21" Snow Thrower (2002) General Assembly Parts Diagram

21" Snow Thrower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 684-0174

Upper Chute Crank Assembly
(Superseded to 684-0174-0637)

Variations

Cub Cadet 684-0174-0637

CRANK-CHUTE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 684-0177

Lower Chute Crank Assembly

$

$

Not available

3

Cub Cadet 684-0178

Bracket Assembly: Mitten Grip
(Superseded to 984-0178)

$

$

Not available

4

Cub Cadet 684-0192

Shroud:Black, 7 Hp. Electric

$

$

Not available

5

Cub Cadet 710-0895

TT Screw 1/4-15 x 0.75"

$6.49

$

In Stock, only 4 left!

0

6

Cub Cadet 710-1003

B Screw #10-16 x 0.625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1882

Hex Flange Screw

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3083

Hex Bolt 5/16-18 x 1.375"

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0252

Jam Nut

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0429

Lock Nut

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 720-0201A

Knob: Chute Crank

$10.99

$

In Stock, Qty 5

0

15

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet 725-2018

Switch: Electric Start Key
(Superseded to 925-2018)

$

$

Not available

17

Cub Cadet 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0225

Internal Lock Washer

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0400

Flat Washer

$5.49

$

In Stock, Qty 12

0

22

Cub Cadet 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

23

Cub Cadet 7519636

Mitten Grip Handle
(Superseded to 7510009636)

$

$

Not available

24

Cub Cadet 684-0190

Spark Plug Access, Yellow
(Superseded to 684-0189)

$

$

Not available

24

Cub Cadet 684-0189

Spark Plug Access, Black

$

$

Not available

25

Cub Cadet 749-0711A

Upper Handle: Gull Wing

Variations

Cub Cadet 749-0711A-0637

UPPER HANDLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0711A-0638

UPPER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

Cub Cadet 749-0796B

Lower Handle

Variations

Cub Cadet 749-0796B-0638

LOWER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

27

Cub Cadet 710-0167

Carriage Screw 1/4-20 x 0.50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0191

Hex Bolt

$4.99

$

In Stock, Qty 9

0

29

Cub Cadet 710-0323

Machine Screw

$4.99

$

In Stock, only 2 left!

0

30

Cub Cadet 710-0352

B Screw 1/4-14 x 0.375"

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0642

TT Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0773

TT Screw 3/8-16 x 0.5"

$7.49

$

In Stock, only 3 left!

0

34

Cub Cadet 710-0896

AB Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-1005

B Screw 1/4-14 x 0.5"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 711-0848A

Axle Tube
(Superseded to 753-05480)

$

$

Not available

37

Cub Cadet 712-0116

Jam Lock Nut

$4.99

$

In Stock, Qty 6

0

38

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 712-3027

Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

41

Cub Cadet 732-0357A

Extension Spring

$4.49

$

In Stock, Qty 13

0

42

Cub Cadet 736-0108

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0176

Flat Washer

$4.99

$

In Stock, only 4 left!

0

45

Cub Cadet 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0326

Flat Washer

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

48

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

50

Cub Cadet 746-0910A

Clutch Cable
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 18

0

51

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 756-0313

Flat Idler

$26.99

$

In Stock, Qty 5

0

53

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

54

Cub Cadet 784-5175B

Bracket: Brake Idler
(Superseded to 753-05156)

Variations

Cub Cadet 784-5175B-0637

USE 753-05156 KIT:IDLER SINGL - POWDER BLACK (0637)

$

$

Not available

$

$

55

Cub Cadet 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 784-5485

Auger Assembly
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

57

Cub Cadet 784-5720

Chute Crank Bracket
(Superseded to 784-5720-0637)

Variations

Cub Cadet 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

58

Cub Cadet 684-0196

Auger Housing Assembly

Variations

Cub Cadet 684-0196-0650

AUGER HOUSING - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0196-0665

HOUSING ASM-AUGER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0196-0638

AUGER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0196-0709

AUGER HOUSING (MASTERCRAFT GREEN) - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 684-0196-0716

HOUSING ASSY-AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

59

Cub Cadet 734-1811

Wheel Assembly

$

$

Not available

60

Cub Cadet 710-1090

Hex Flange Screw

$3.99

$

Usually ships in 3-6 days

0
