721 (31AE295-101) - Troy-Bilt Squall 21" Snow Thrower (2004) Drive Parts Diagram

Squall 21" Snow Thrower

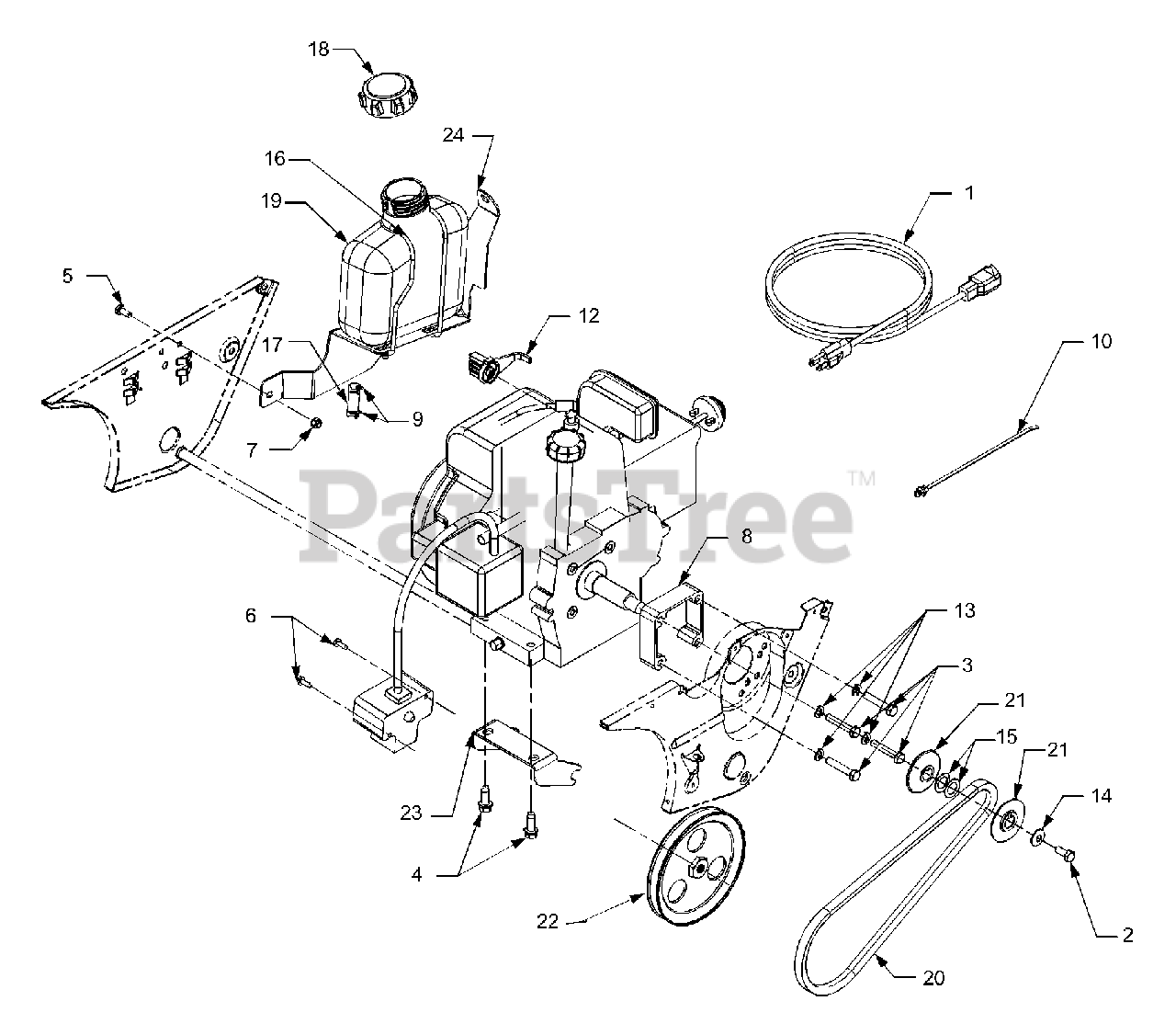

Drive Parts Diagram

  • Title
1

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

2

Troy-Bilt 710-0157

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-0409

Hex Screw, 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0654A

Self Tapping Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0751

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0324

Hex Nut, 1/4-20 Nylon

$3.99

$

In Stock, Qty 16

0

8

Troy-Bilt 719-0581

Spacer, Engine 4 Cycle

$

$

Not available

9

Troy-Bilt 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-2825

Knob, Choke

$17.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0337

Flat Washer, 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 9

0

16

MTD 747-04169

Support, Wire Gas Tank

$

$

Not available

17

Troy-Bilt 751-0535

Hose, Fuel Line

$

$

Currently unavailable

18

Troy-Bilt 751-0603

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

20

Troy-Bilt 754-0101A

V-Belt 1/2 x 35.0 LG
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 756-04060

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-04060)

$

$

Not available

22

Troy-Bilt 756-0475

Pulley, 1/2 V 1/2-20 LH x 6.0

$79.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 790-00047

Bracket, Engine 4 Cycle
(Superseded to 790-00047-0637)

Variations

Troy-Bilt 790-00047-0637

BRACKET-ENGINE - POWDER BLACK

$

$

Not available

$

$

24

MTD 790-00059

Bracket Support Gas Tank 4 Cycle Snow

$

$

Not available
