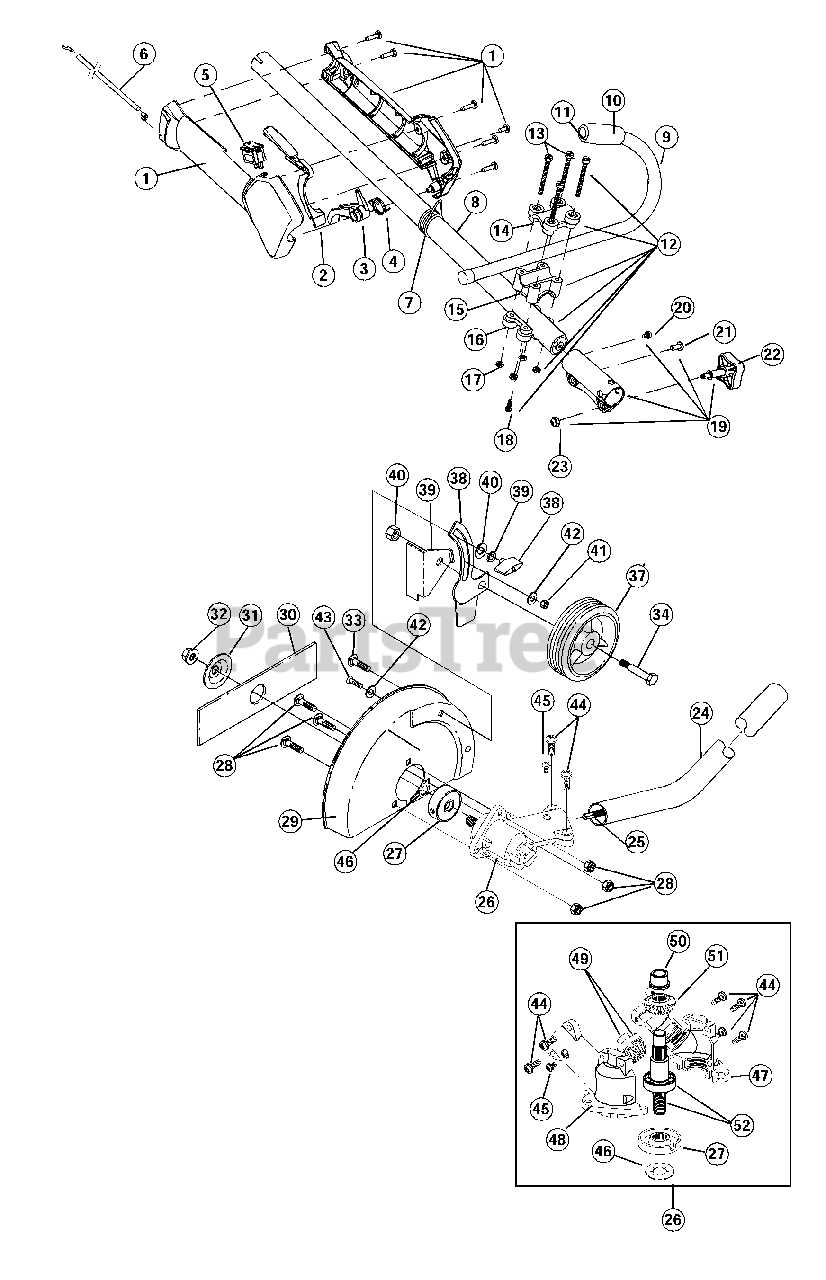

720r DE (41AD72EC034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182801

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-182802

Throttle Trigger Lock-Out
(Superseded to 753-04340)

$

$

Not available

3

MTD 791-182803

Throttle Trigger
(Superseded to 753-04119)

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 791-182893

Switch

$

$

Not available

6

MTD 753-04136

Throttle Cable
(Superseded to 746-04085A)

$10.99

$

In Stock, only 2 left!

0

7

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

9

MTD 791-180687

J-Handle Assembly

Note: (includes 10 & 11)

$41.99

$

Usually ships in 3-6 days

0

10

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

12

MTD 791-683295

Handle Bracket Assembly

Note: (includes 13-18)

$45.99

$

Usually ships in 3-6 days

0

13

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

14

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

16

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

17

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

18

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

19

MTD 791-181616B

Split Boom Link Coupler
(Superseded to 753-1190)

Note: (includes 20-23)

$23.99

$

In Stock, only 1 left!

0

20

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

21

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

22

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

23

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

24

MTD 791-180915

Drive Shaft Housing Assembly

$

$

Not available

25

MTD 791-181570

Drive Shaft Assembly

$61.99

$

Usually ships in 3-6 days

0

26

MTD 791-182193

Gearbox Assembly

Note: (includes 5 & 6)

$99.99

$

In Stock, only 2 left!

0

27

MTD 791-182196

Spacer

$22.99

$

In Stock, only 1 left!

0

28

MTD 753-1217

Shield Mount Screw

$3.49

$

Usually ships in 3-6 days

0

29

MTD 791-182256

Blade Shield

$

$

Not available

30

MTD 791-613223B

Edger Blade
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

31

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

32

MTD 791-147491

Lock Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

33

MTD 791-182213

Shoulder Bolt
(Superseded to 710-0703)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-181591

Wheel Mounting Hardware

$

$

Not available

35

MTD 791-181592

Deflector

$

$

Not available

36

MTD 791-181593

Guide Bracket

$

$

Not available

37

MTD 791-181242

Wheel

$

$

Not available

38

MTD 791-182214

Adjustment Knob

$

$

Not available

39

MTD 791-182215

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

40

MTD 791-182216

Washer

$

$

Not available

41

MTD 791-182237

Locknut

$

$

Not available

42

MTD 791-182236

Washer

$5.99

$

Usually ships in 3-6 days

0

43

MTD 791-181858

Screw

$

$

Not available

44

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, only 1 left!

0

45

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

46

MTD 753-1159

Palnut

$

$

Not available

MTD 791-613226

Locking Rod

Note: Not Shown

$14.99

$

In Stock, only 1 left!

0

MTD 791-180014B

Blade Retainer Kit

Note: Not Shown; (includes 9 & 10)

$12.99

$

In Stock, only 1 left!

0

47

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

48

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

49

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 26

$31.99

$

Usually ships in 3-6 days

0

50

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

51

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

52

MTD 791-182197

Output Shaft Assembly

Note: (includes 50 & 51); 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available
