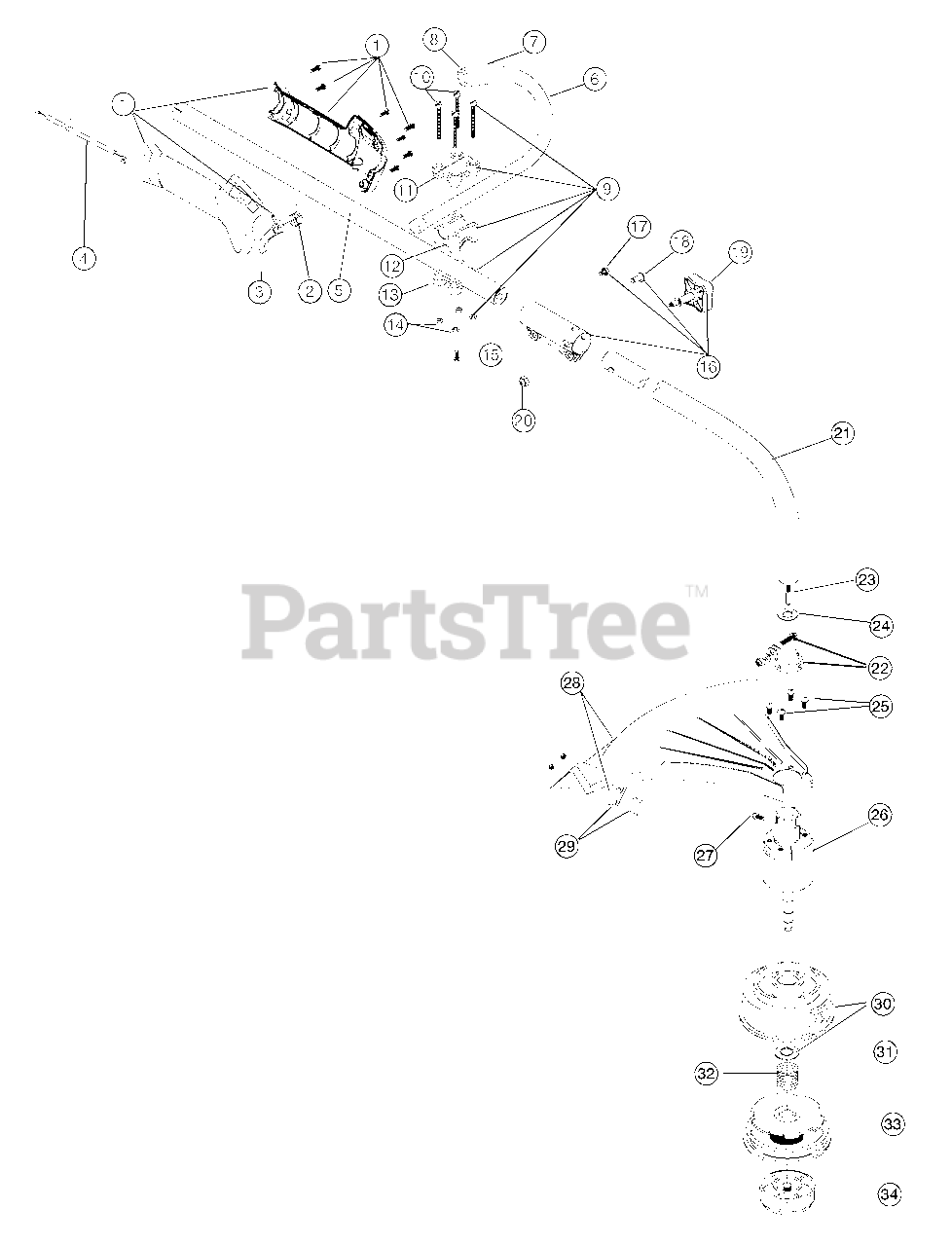

720r (41AD720A034) - Ryobi String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-180339

Upper Drive Shaft Housing Assembly
(Superseded to 753-04344)

$85.99

$

In Stock, only 3 left!

0

6

MTD 791-180687

J-Handle Assembly

Note: (includes 7 & 8)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

8

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

9

MTD 791-683295

Handle Bracket Assembly

Note: (includes 10-15)

$45.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

16

MTD 791-181616

Click-Link Coupler

Note: (includes 17-20)

$

$

Currently unavailable

17

MTD 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

18

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

19

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

MTD 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

22

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

23

MTD 791-683608

Lower Flexible Drive Shaft
(Superseded to 791-181852)

$59.99

$

In Stock, Qty 11

0

24

MTD 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

In Stock, only 3 left!

0

25

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

26

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

27

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

28

MTD 791-683274

Shield and Blade Assembly

Note: (includes 29)

$36.99

$

In Stock, only 1 left!

0

29

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

30

MTD 791-153619

Outer Spool and Eyelet Assembly

Note: (includes 31)

$27.99

$

Usually ships in 3-6 days

0

31

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

32

MTD 791-610317

Spring
(Superseded to 791-610317B)

$10.99

$

In Stock, only 2 left!

0

33

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$22.99

$

In Stock, Qty 20+

0

34

MTD 791-147153

Bump Head Knob Assembly
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 18

0

MTD 791-181472

Replacement Line, 0.080 Diameter
(Superseded to 791-181460B)

Note: (Eight - 10 ft lengths); Optional Accessories; Items Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessories; Items Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessories; Items Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessories; Items Not Shown

$

$

Not available
