72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 416506841 - 416736778) LH Hydraulic Motor Assembly No. 126-8134 Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

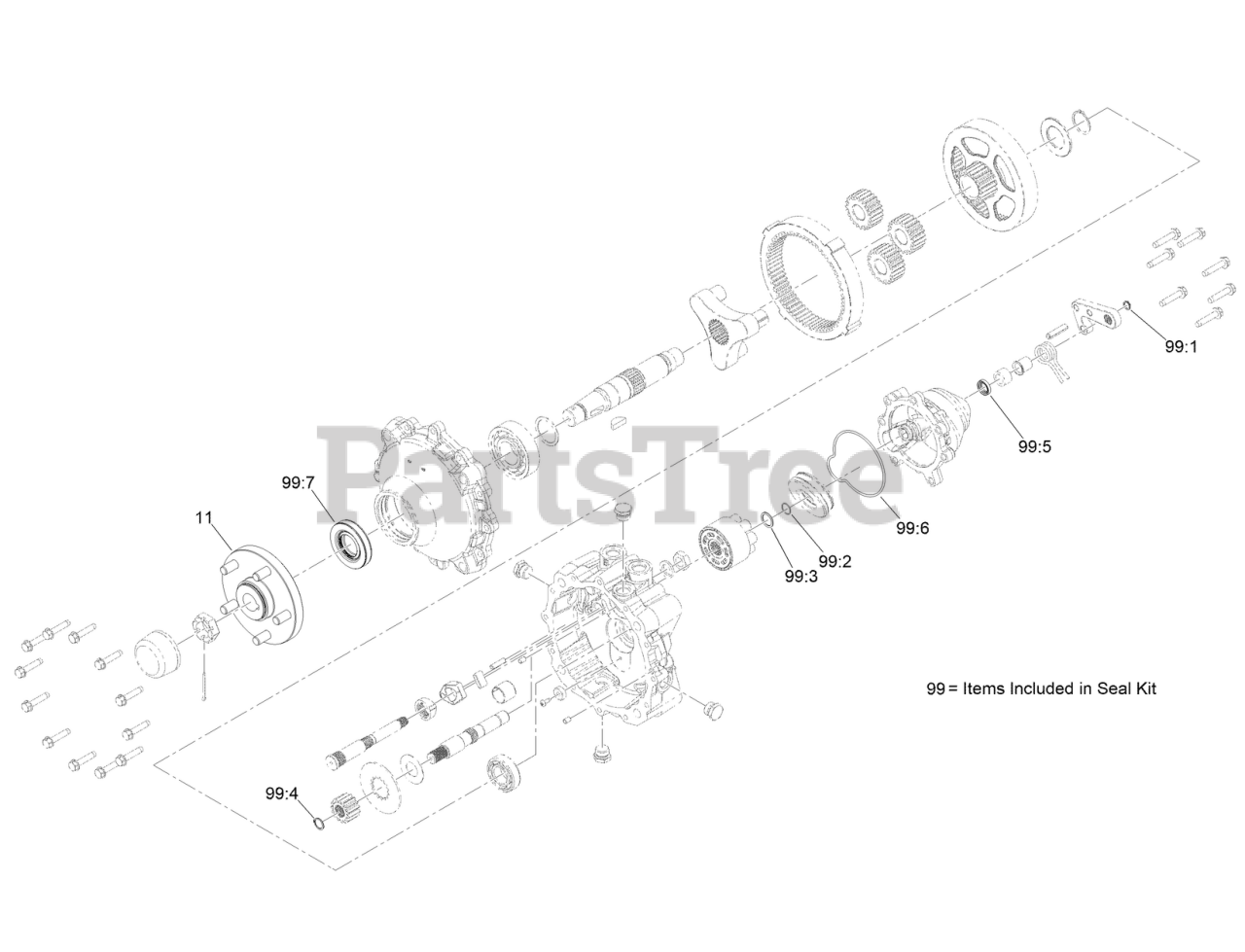

LH Hydraulic Motor Assembly No. 126-8134 Parts Diagram

  • Title

11

Toro 135-5333

5 STUD WHEEL HUB KIT

$298.99

$

In Stock, only 2 left!

0

99

Toro 126-0315

SEAL KIT

$68.99

$

Usually ships in 3-6 days

0

99:1

Toro 161-0915

RETAINER RING

$

$

Currently unavailable

99:2

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

99:3

Toro 161-0916

WASHER

$

$

Currently unavailable

99:4

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

99:5

Toro 145-3637

SEAL, BRAKE

$5.99

$

Usually ships in 3-6 days

0

99:6

Toro 161-0917

O-RING, ROUND

$

$

Currently unavailable

99:7

Toro 161-0942

SEAL, AXLE

$

$

Currently unavailable
