72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 412442127 - 412807010) Center Deck Fold Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

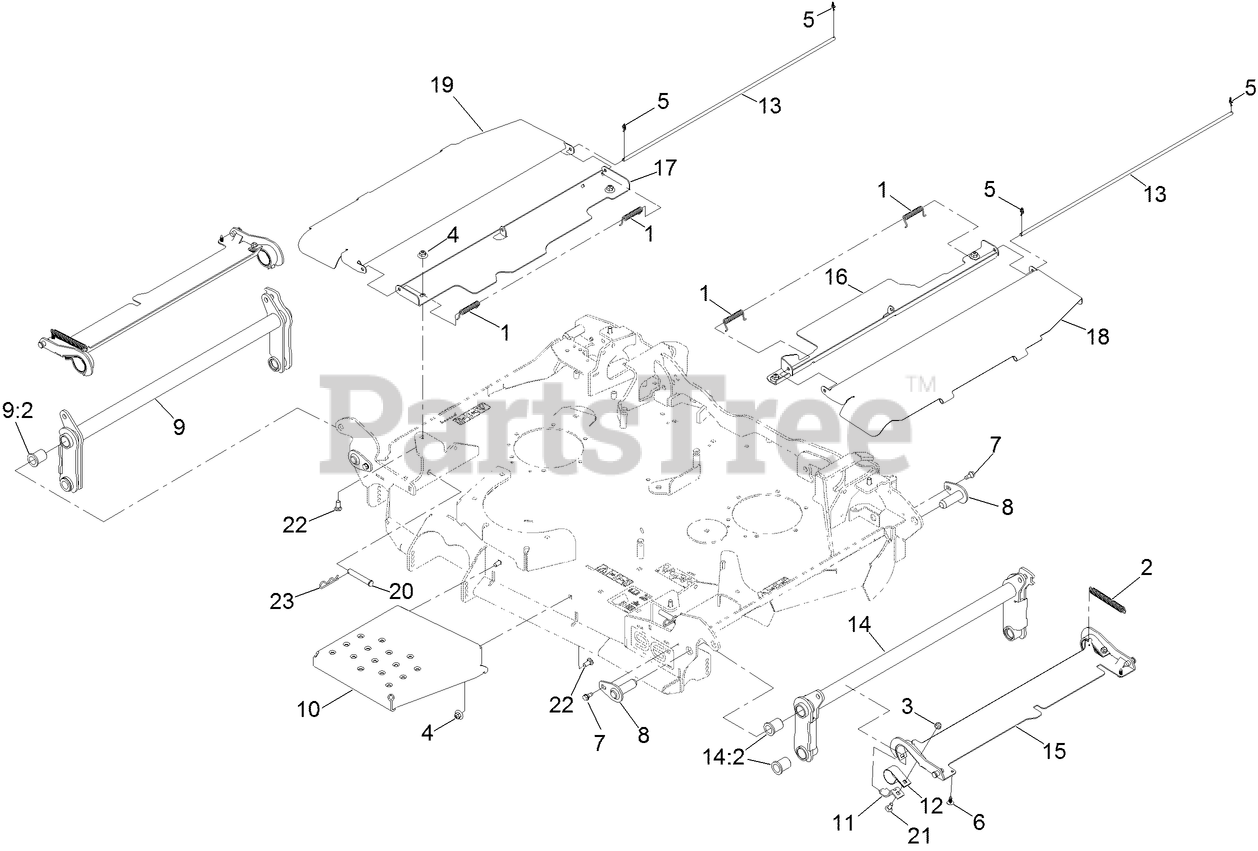

Center Deck Fold Assembly Parts Diagram

  • Title

1

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

2

Toro 103-4813

SPRING

$6.49

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 4 left!

0

6

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

7

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 8

0

8

Toro 142-4813

ASM-DECK PIN

$23.99

$

In Stock, only 3 left!

0

9

Toro 142-5423

ASM-FOLS ARM, RH

$406.99

$

Usually ships in 3-6 days

0

9:2

Toro 142-4794

BUSHING-FLANGED

$15.99

$

In Stock, Qty 7

0

10

Toro 126-9745-03

PANEL-STEP

$103.99

$

Usually ships in 3-6 days

0

11

Toro 126-9764

PLATE-RETAINER, BEARING

$13.99

$

Usually ships in 3-6 days

0

12

Toro 135-0584

BEARING-STRAP, NYLON

$6.49

$

Usually ships in 3-6 days

0

13

Toro 135-1023

COVER-ROD, PIVOT

$37.99

$

Usually ships in 3-6 days

0

14

Toro 142-5424

ASM-FOLD ARM, LH

$406.99

$

Usually ships in 3-6 days

0

14:2

Toro 142-4794

BUSHING-FLANGED

$15.99

$

In Stock, Qty 7

0

15

Toro 135-2630-01

COVER-WING

$180.99

$

Usually ships in 3-6 days

0

16

Toro 135-2651-01

SHIELD-CENTER, LH

$63.99

$

Usually ships in 3-6 days

0

17

Toro 135-2652-01

SHIELD-CENTER, RH

$53.99

$

Usually ships in 3-6 days

0

18

Toro 135-6178-03

PANEL-SHIELD HINGE, LH

$87.99

$

Usually ships in 3-6 days

0

19

Toro 135-6174-03

PANEL-SHIELD HINGE, RH

$87.99

$

Usually ships in 3-6 days

0

20

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

21

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

22

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

23

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0
