72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 411400000 - 412442126) Gasket Set Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

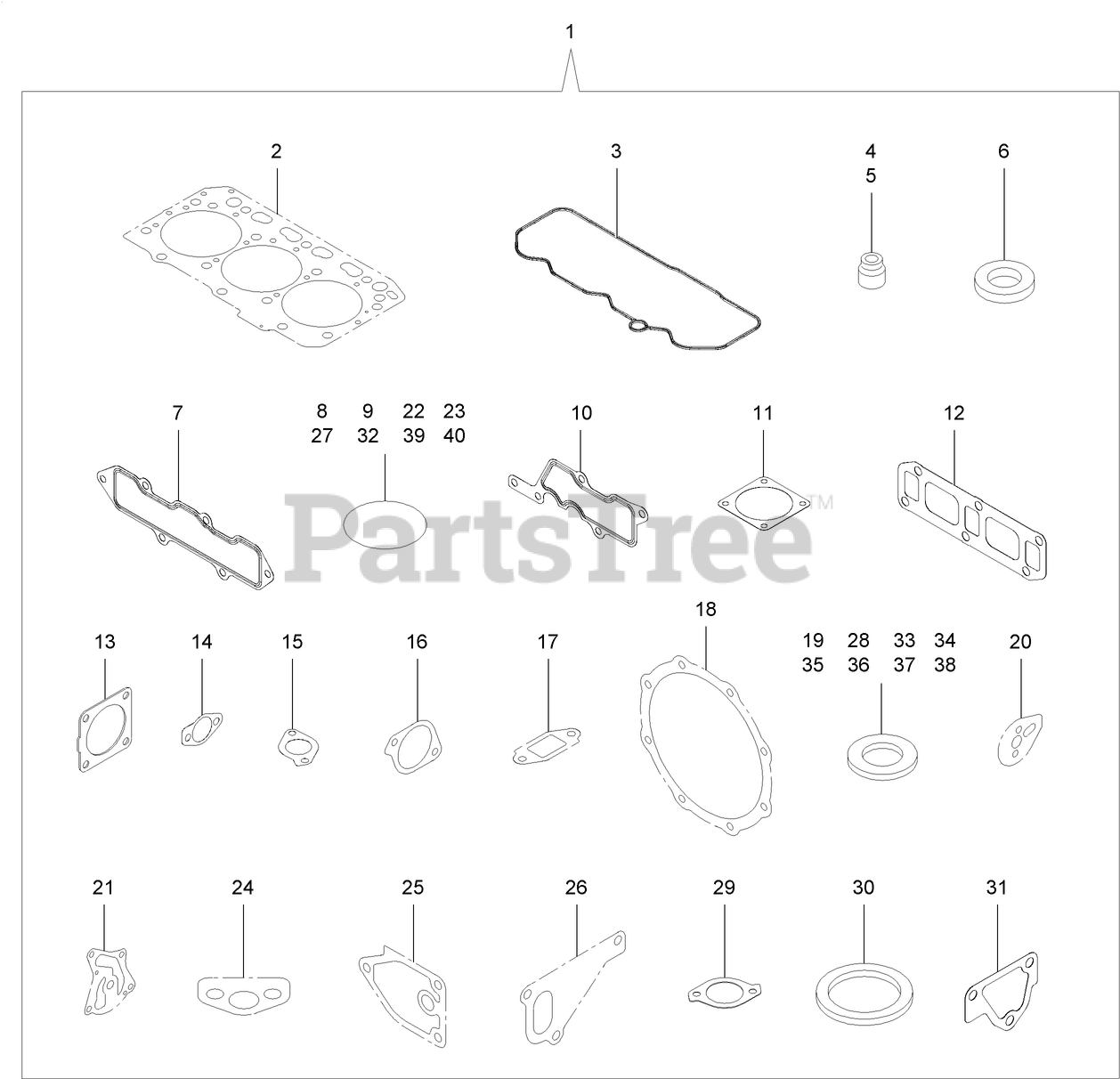

Gasket Set Parts Diagram

  • Title
1

Toro 130-7440

PACKING (GASKET SET)

$886.99

$

In Stock, only 1 left!

0

2

Toro 127-4716

HEAD GASKET ASM

$79.99

$

Usually ships in 3-6 days

0

3

Toro 127-3856

GASKET-HEAD, CYLINDER

$71.99

$

In Stock, only 1 left!

0

4

Toro 127-2986

SEAL-STEM, VALVE

$6.99

$

Usually ships in 3-6 days

0

5

Toro 127-3027

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

6

Toro 127-3021

GASKET-INJECTOR

$4.99

$

Usually ships in 3-6 days

0

7

Toro 127-3857

GASKET-MANIFOLD, INTAKE

$12.99

$

Usually ships in 3-6 days

0

8

Toro 127-3032

O RING-SENSOR, PRESSURE

$20.99

$

Usually ships in 3-6 days

0

9

Toro 127-3033

O-RING

$13.99

$

Usually ships in 3-6 days

0

10

Toro 127-3034

GASKET-COLLECTOR

$10.99

$

Usually ships in 3-6 days

0

11

Toro 127-3037

GASKET-THROTTLE

$2.99

$

Usually ships in 3-6 days

0

12

Toro 127-3775

GASKET-MANIFOLD, EXHAUST

$10.99

$

Usually ships in 3-6 days

0

13

Toro 127-2987

GASKET-SILENCER

$15.99

$

In Stock, only 1 left!

0

14

Toro 127-3043

GASKET-COOLER, E G R

$3.99

$

Usually ships in 3-6 days

0

15

Toro 127-3016

GASKET

$3.99

$

Usually ships in 3-6 days

0

16

Toro 127-3050

GASKET-INTAKE VALVE, E G R

$5.49

$

Usually ships in 3-6 days

0

17

Toro 127-3051

GASKET-OUT VALVE, E G R

$4.99

$

Usually ships in 3-6 days

0

18

Toro 127-3859

GASKET-D P F

$12.99

$

Usually ships in 3-6 days

0

19

Toro 127-3056

GASKET-SENSOR

$2.99

$

Usually ships in 3-6 days

0

20

Toro 127-3069

GASKET-IDLE, SHAFT B

$4.49

$

Usually ships in 3-6 days

0

21

Toro 127-3004

GASKET

$2.99

$

Usually ships in 3-6 days

0

22

Toro 125-6909

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 127-2973

O-RING

$3.49

$

Usually ships in 3-6 days

0

24

Toro 125-7022

GASKET

$8.49

$

In Stock, only 1 left!

0

25

Toro 125-7024

GASKET

$3.49

$

Usually ships in 3-6 days

0

26

Toro 125-7047

GASKET

$5.49

$

Usually ships in 3-6 days

0

27

Toro 125-7048

O-RING

$2.99

$

Usually ships in 3-6 days

0

28

Toro 125-6979

GASKET

$2.99

$

Usually ships in 3-6 days

0

29

Toro 125-7110

GASKET

$4.49

$

Usually ships in 3-6 days

0

30

Toro 125-7026

GASKET

$3.49

$

Usually ships in 3-6 days

0

31

Toro 125-6978

GASKET

$2.49

$

Usually ships in 3-6 days

0

32

Toro 127-3074

O-RING

$30.99

$

Usually ships in 3-6 days

0

33

Toro 125-7174

WASHER-SEAL

$6.99

$

Usually ships in 3-6 days

0

34

Toro 125-7176

WASHER-SEAL

$8.99

$

Usually ships in 3-6 days

0

35

Toro 127-3166

WASHER-SEAL

$8.49

$

Usually ships in 3-6 days

0

36

Toro 125-7177

WASHER-SEAL

$7.49

$

Usually ships in 3-6 days

0

37

Toro 125-7192

GASKET

$1.49

$

Usually ships in 3-6 days

0

38

Toro 127-3174

GASKET

$1.49

$

Usually ships in 3-6 days

0

39

Toro 93-0418

O-RING

$7.99

$

In Stock, only 3 left!

0

40

Toro 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0
