72096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 408863600 - 999999999) Caster Fork and Wheel Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

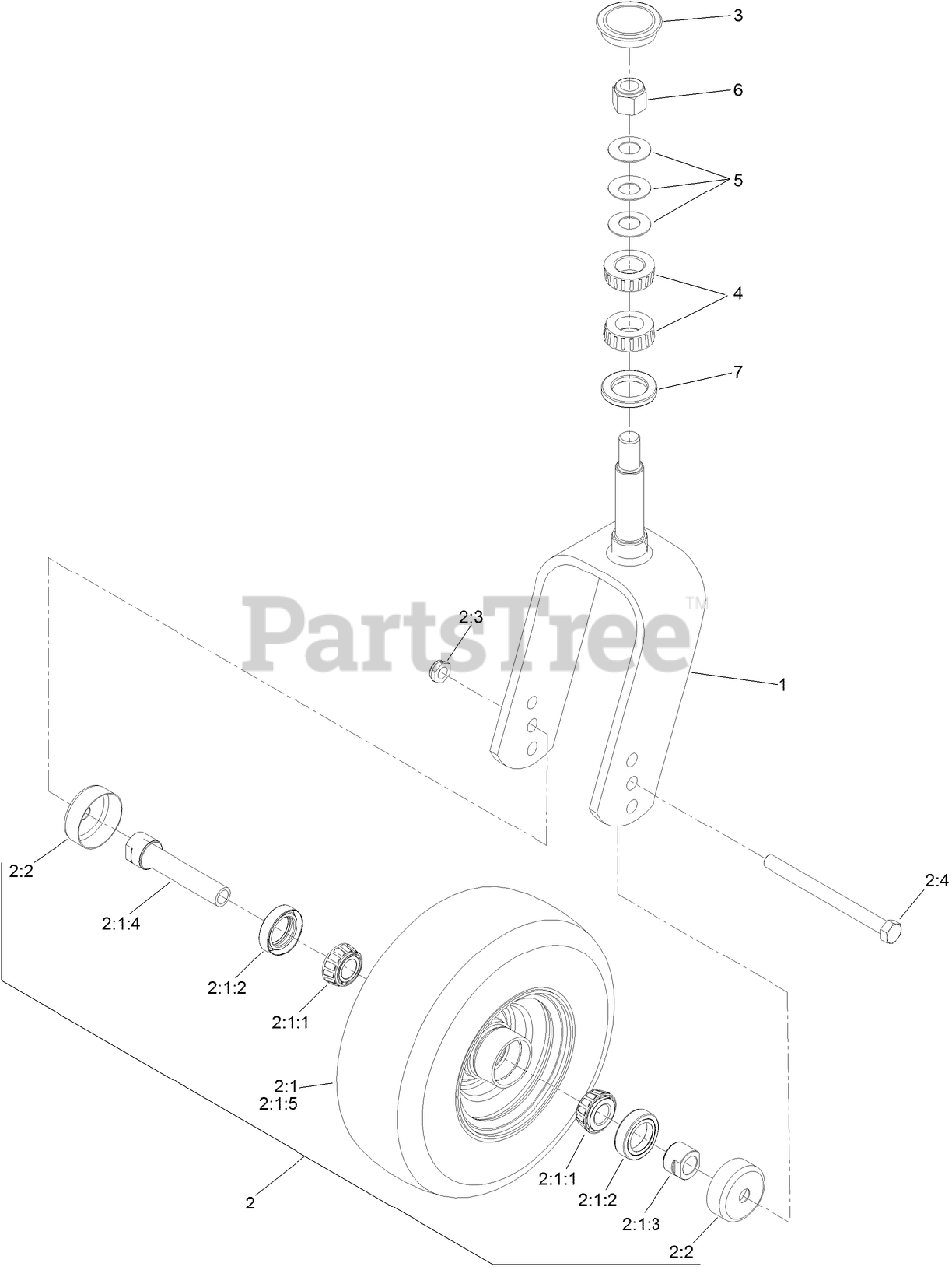

Caster Fork and Wheel Assembly Parts Diagram

  • Title

1

Toro 135-3794-01

CASTER-FORK

$205.99

$

In Stock, only 1 left!

0

2

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$225.99

$

Usually ships in 3-6 days

0

2:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

2:1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

2:1:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut

$9.49

$

In Stock, Qty 20+

0

2:1:4

Toro 126-5359

CASTER AXLE ASM

$18.99

$

In Stock, Qty 11

0

2:1:5

Toro 130-4563

WHEEL AND TIRE ASM

$180.99

$

In Stock, only 2 left!

0

2:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

2:4

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

3

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

4

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

5

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0
