72096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 407110000 - 408851916) Deck Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

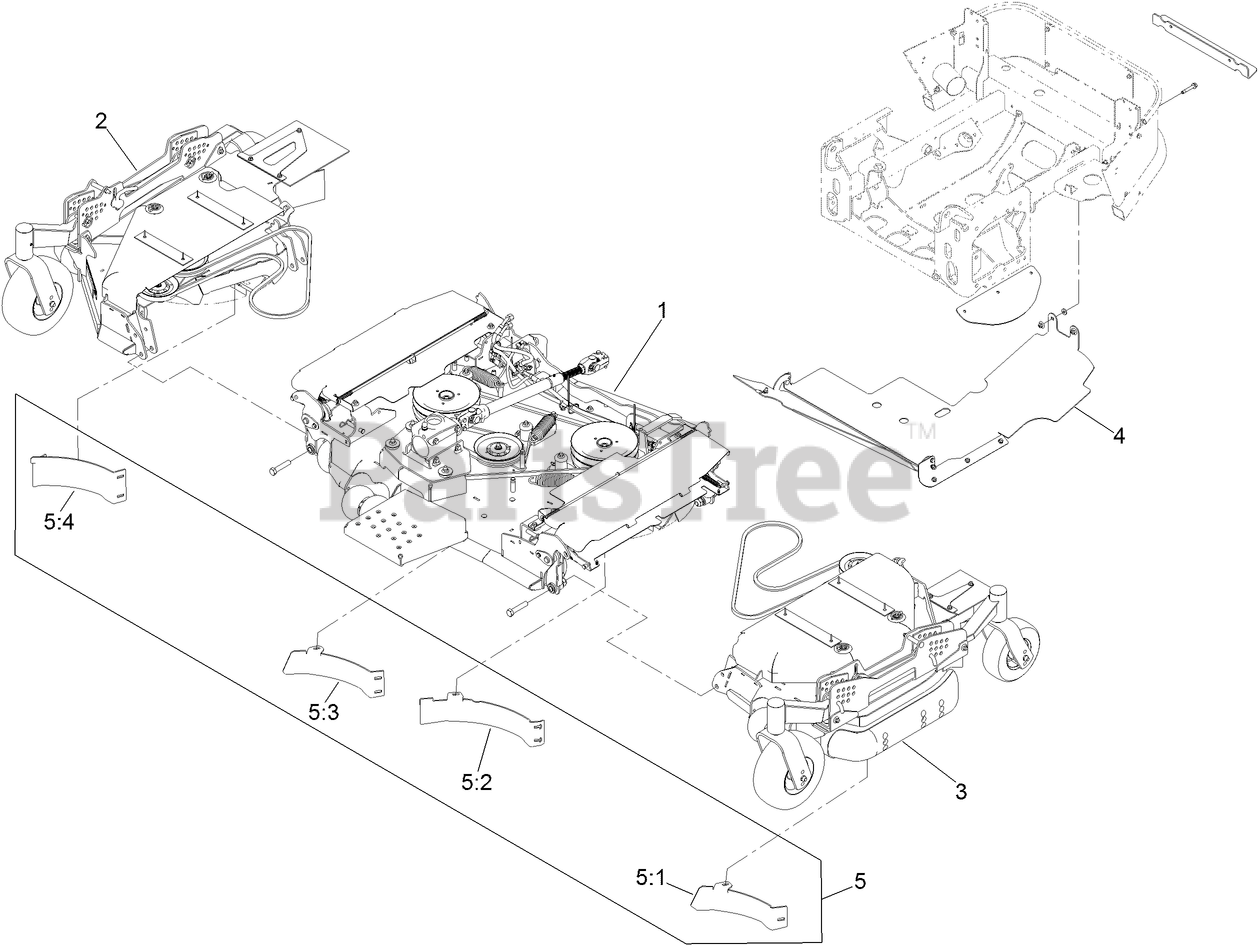

Deck Assembly Parts Diagram

  • Title
1

CENTER DECK ASM

Note: Not serviced separately

$

$

Not available

2

RH WING DECK ASM

Note: Not serviced separately

$

$

Not available

3

LH WING DECK ASM

Note: Not serviced separately

$

$

Not available

4

Toro 135-2075

DISCHARGE TUNNEL ASM

$266.99

$

Usually ships in 3-6 days

0

5

Toro 135-2449

KIT-96RD MULCH

$251.99

$

Usually ships in 3-6 days

0

5:1

Toro 135-3461-01

BAFFLE-BLOCK

$52.99

$

Usually ships in 3-6 days

0

5:2

Toro 135-3462-01

BAFFLE-BLOCK, LH CTR

$81.99

$

Usually ships in 3-6 days

0

5:3

Toro 135-3463-01

BAFFLE-BLOCK, RH CTR

$75.99

$

Usually ships in 3-6 days

0

5:4

Toro 135-3540-01

BAFFLE-BLOCK, RH WING

$52.99

$

Usually ships in 3-6 days

0
