72087 (268-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HYDRAULIC BRAKE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

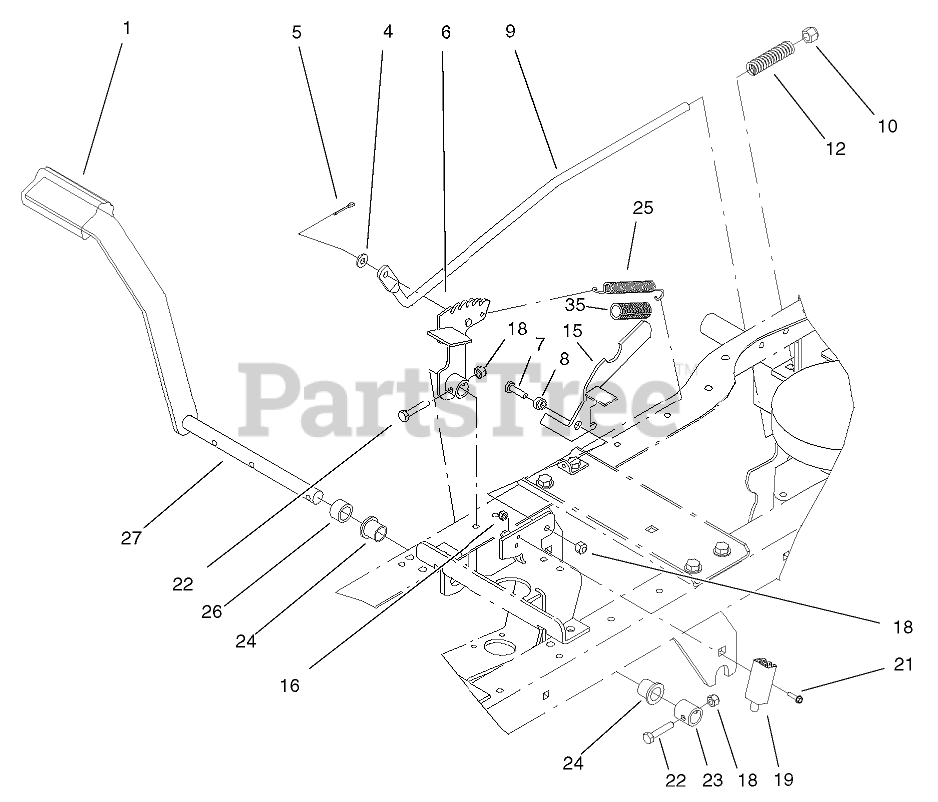

HYDRAULIC BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 104-0828

BRAKE ASM

$69.99

$

Usually ships in 3-6 days

0

7

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-5036

SPACER-SHOULDER

$

$

Not available

9

Toro 104-0836

ROD-BRAKE

$

$

Not available

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 104-0837

SPRING-COMPRESSION

$

$

Not available

15

Toro 104-0834

PARKING BRAKE ASM

$

$

Not available

16

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

19

Toro 86-4690

SWITCH-INTERLOCK
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

21

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

23

Toro 100-8733

TUBE

$

$

Not available

24

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

25

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

26

Toro 92-6982

SPACER-BRAKE

$

$

Not available

27

Toro 100-3476-03

PEDAL-BRAKE

$

$

Not available

35

Toro 94-1743

TUBING - CONDUIT

$

$

Not available
