72087 (268-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) SEAT ASSEMBLY Parts Diagram

Lawn & Garden Tractor

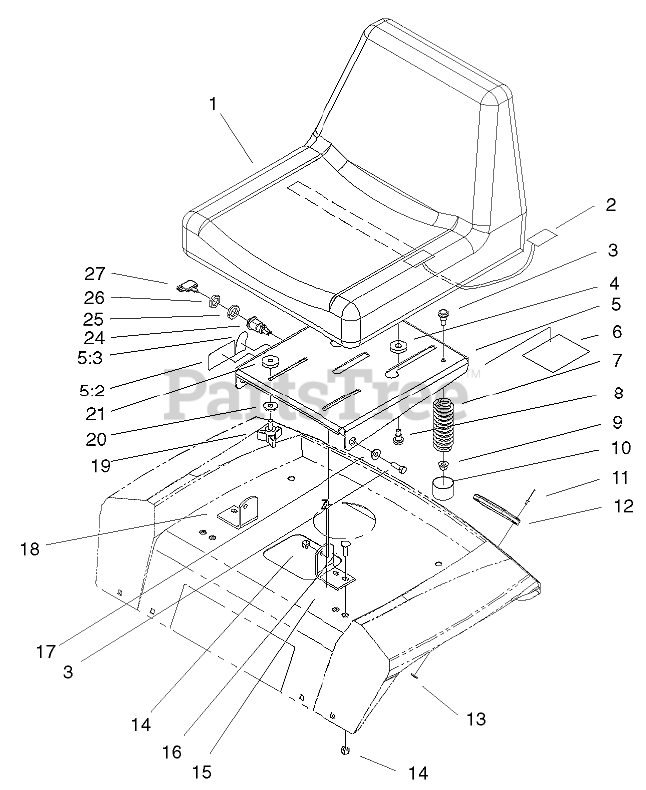

SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6511

SEAT-V-511

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

5

Toro 99-8031

Support-Seat (only on: 72087)

$107.99

$

Usually ships in 3-6 days

0

5

Toro 99-8030

Support-Seat, He ASM (only on: 72107)

$

$

Not available

5:2

Toro 99-2985

Decal-Danger (only on: 72087)

$

$

Not available

5:2

Toro 99-2986

Decal-Danger Intl (only on: 72107)

$

$

Not available

5:3

Toro 99-5340

Decal-Nmir Switch Intl (only on: 72107)

$4.99

$

Usually ships in 3-6 days

0

5:3

Toro 99-5339

Decal-Nmir Switch (only on: 72087)

$

$

Not available

6

Toro 114621

Decal-Europe, Noise (only on: 72107)
(Superseded to 105-2699)

$33.99

$

Usually ships in 3-6 days

0

7

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

8

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

10

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

12

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

16

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

17

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

18

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

19

$20.99

$

In Stock, Qty 5

0

20

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

24

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

26

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

27

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0
