72087 (268-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) REAR WHEEL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

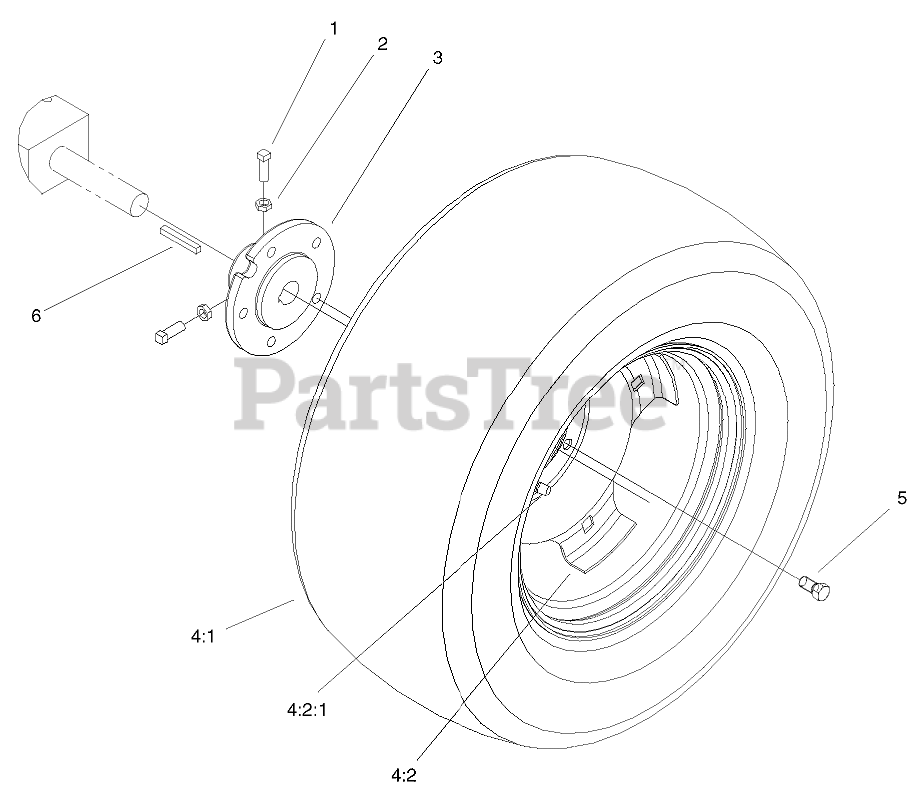

REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 20+

0

2

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

3

Toro 93-3659-03

HUB-WHEEL

$171.99

$

Usually ships in 3-6 days

0

4:1

$

$

Not available

4:2

Toro 78-1221

WHEEL

$

$

Not available

4:2:1

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Not illustrated

$

$

Not available

5

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

6

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0
