72087 (268-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) LIFT LEVER & HOC ASSEMBLY Parts Diagram

Lawn & Garden Tractor

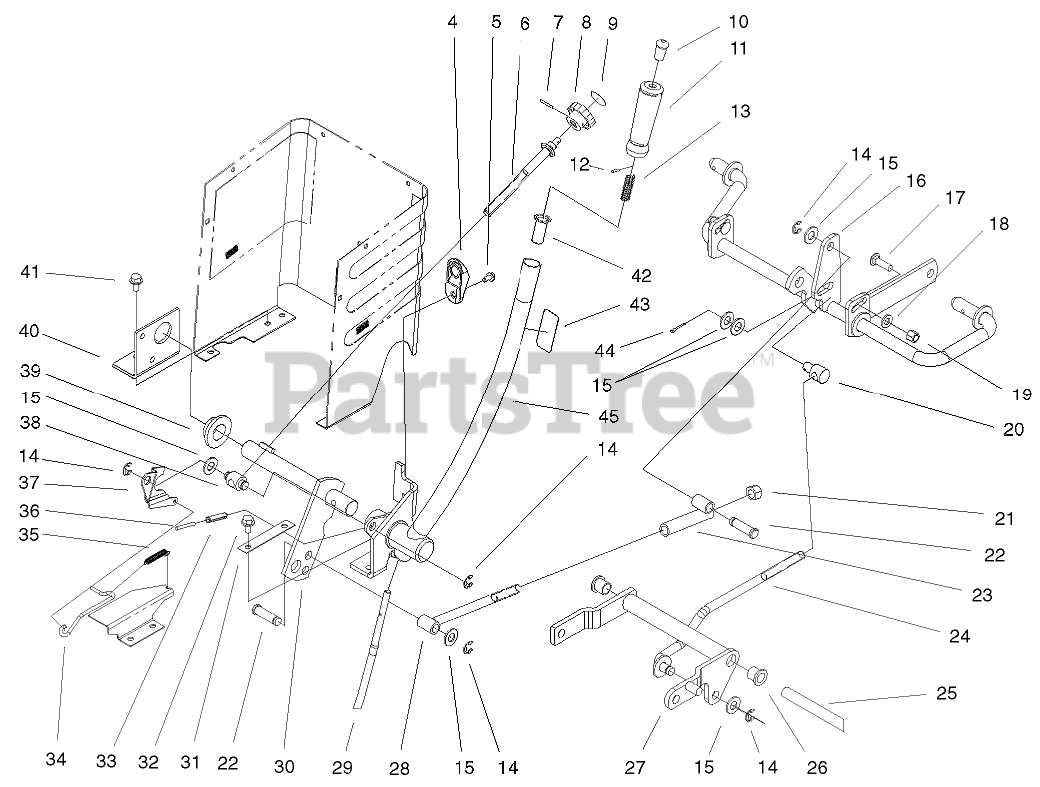

LIFT LEVER & HOC ASSEMBLY Parts Diagram

  • Title
4

Toro 92-6794

WEDGE - HOC

$

$

Not available

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-6965

ROD - HOC

$

$

Not available

7

Toro 933141

PIN-SPIROL

$1.99

$

Usually ships in 3-6 days

0

8

$10.99

$

Usually ships in 3-6 days

0

9

Toro 78-9740

DECAL-HEIGHT KNOB

$

$

Not available

10

Toro 92-6711

TIP-ROD

$

$

Not available

11

Toro 92-6710

GRIP-HANDLE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

13

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

14

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 79-3401-03

SHAFT-GAGE

$355.99

$

Usually ships in 3-6 days

0

17

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

21

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

22

$20.99

$

Usually ships in 3-6 days

0

23

$

$

Not available

24

$

$

Not available

25

Toro 94-4944

SHAFT-PIVOT, PEDAL

$

$

Not available

26

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

27

Toro 92-6855-03

ARM-PIVOT

$

$

Not available

28

$

$

Not available

29

Toro 92-6977-03

ROD-LEVER, LIFT

$

$

Not available

30

Toro 94-3552-03

SHAFT-LIFT

$

$

Not available

31

$

$

Not available

32

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

33

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

34

Toro 92-6978

ROD - HOC INDICATOR

$

$

Not available

35

Toro 92-7007

SPRING - EXTENSION

$

$

Not available

36

Toro 32121-103

PIN-SPRING

$

$

Not available

37

Toro 92-6979

PLATE - HOC GAGE

$

$

Not available

38

Toro 78-2140

TRUNNION

$

$

Not available

39

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

40

Toro 93-0523-03

BRACKET-PIVOT, LINKAGE

$

$

Not available

41

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

42

Toro 8130

RETAINER-SPRING

$23.99

$

Usually ships in 3-6 days

0

43

Toro 112168

Decal-Lift (only on: 72087)

$11.99

$

Usually ships in 3-6 days

0

43

Toro 93-7323

Decal-Lift Int-l (only on: 72107)

$

$

Not available

44

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

45

Toro 94-3761-03

LEVER-LIFT

$

$

Not available
