72087 (268-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) FUEL TANK ASSEMBLY Parts Diagram

Lawn & Garden Tractor

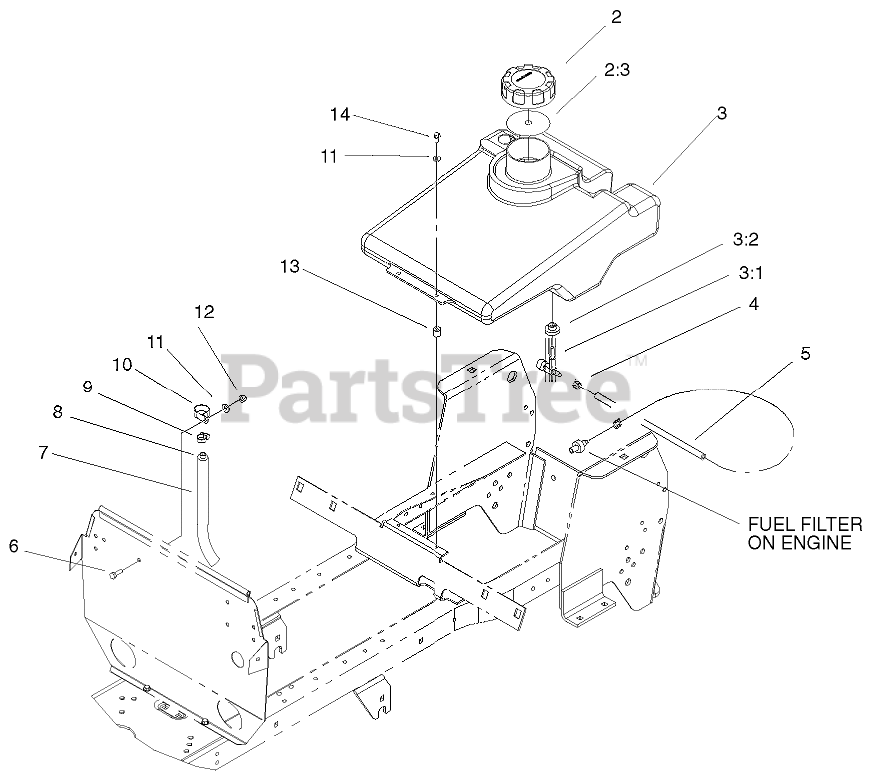

FUEL TANK ASSEMBLY Parts Diagram

  • Title

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

2:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

3

Toro 94-6928

TANK-GAS

$

$

Not available

3:1

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

3:2

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 93-1627

HOSE - FUEL LINE TWIN

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 100-6072

HOSE-BREATHER

$

$

Not available

8

Toro 93-3817

FITTING-VENT

$21.99

$

Usually ships in 3-6 days

0

9

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

10

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 93-1144

SPACER - FUEL TANK

$

$

Not available

14

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0
