72087 (268-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) FRONT AXLE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

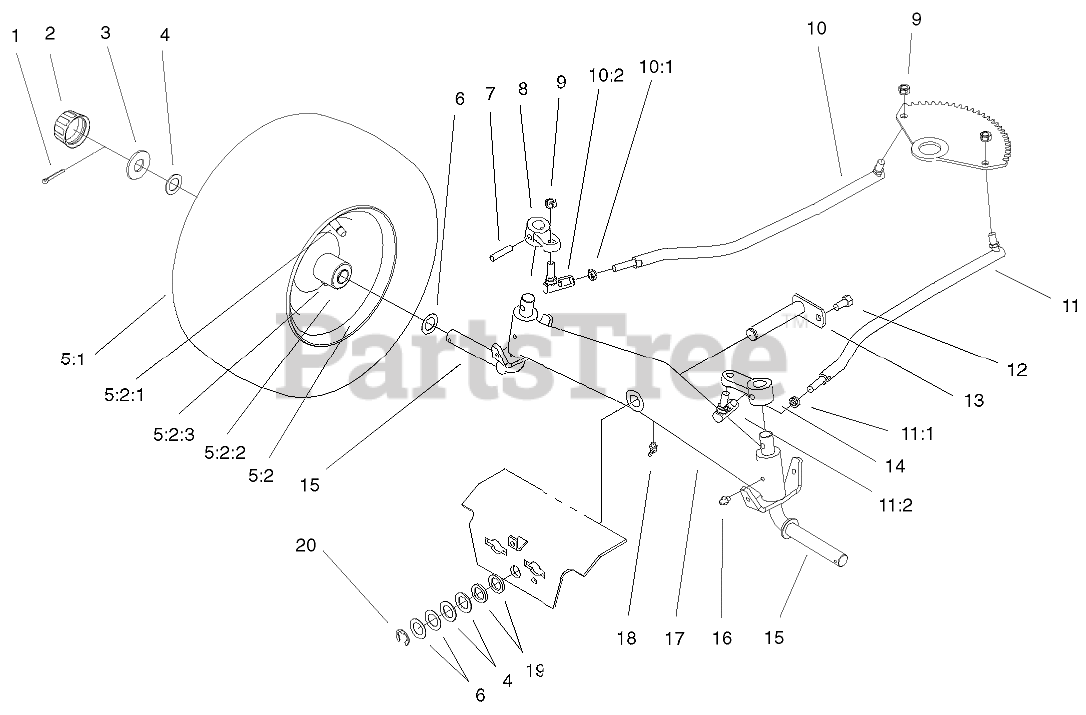

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

2

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

3

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 20+

0

4

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

5:1

Toro 99-2336

TIRE

$165.99

$

Usually ships in 3-6 days

0

5:2

Toro 93-9801

Wheel ASM

$270.99

$

Usually ships in 3-6 days

0

5:2:1

Toro 5108

VALVE

$6.99

$

In Stock, Qty 9

0

5:2:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 17

0

5:2:3

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

Note: Not illustrated

$

$

Not available

6

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

7

Toro 933270

PIN

$6.99

$

In Stock, Qty 6

0

8

Toro 78-1950-01

Arm-Front Spindle
(Superseded to 78-1950-03)

$131.99

$

Usually ships in 3-6 days

0

9

Toro 9150026

Nut

$1.99

$

In Stock, Qty 20+

0

10

Toro 92-6883

LINKAGE-STEERING, RH

$190.99

$

In Stock, only 1 left!

0

10:1

Toro 9150854

NUT-JAM
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 6

0

10:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, Qty 5

0

11

Toro 92-6884

LINKAGE-STEERING, LH

$190.99

$

In Stock, only 4 left!

0

11:1

Toro 9150854

NUT-JAM
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 6

0

11:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, Qty 5

0

12

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

13

Toro 92-7057-03

PIN-AXLE

$76.99

$

Usually ships in 3-6 days

0

14

Toro 78-1940-01

Arm-Front Spindle
(Superseded to 78-1940-03)

$131.99

$

Usually ships in 3-6 days

0

15

Toro 78-2601-01

SPINDLE
(Superseded to 78-2601-03)

$115.99

$

In Stock, only 2 left!

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 78-7960-01

AXLE-FRONT

$

$

Not available

18

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0

19

Toro 9202324

Washer

$1.99

$

In Stock, only 3 left!

0

20

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0
