72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) STARTING SYSTEM Parts Diagram

Lawn & Garden Tractor

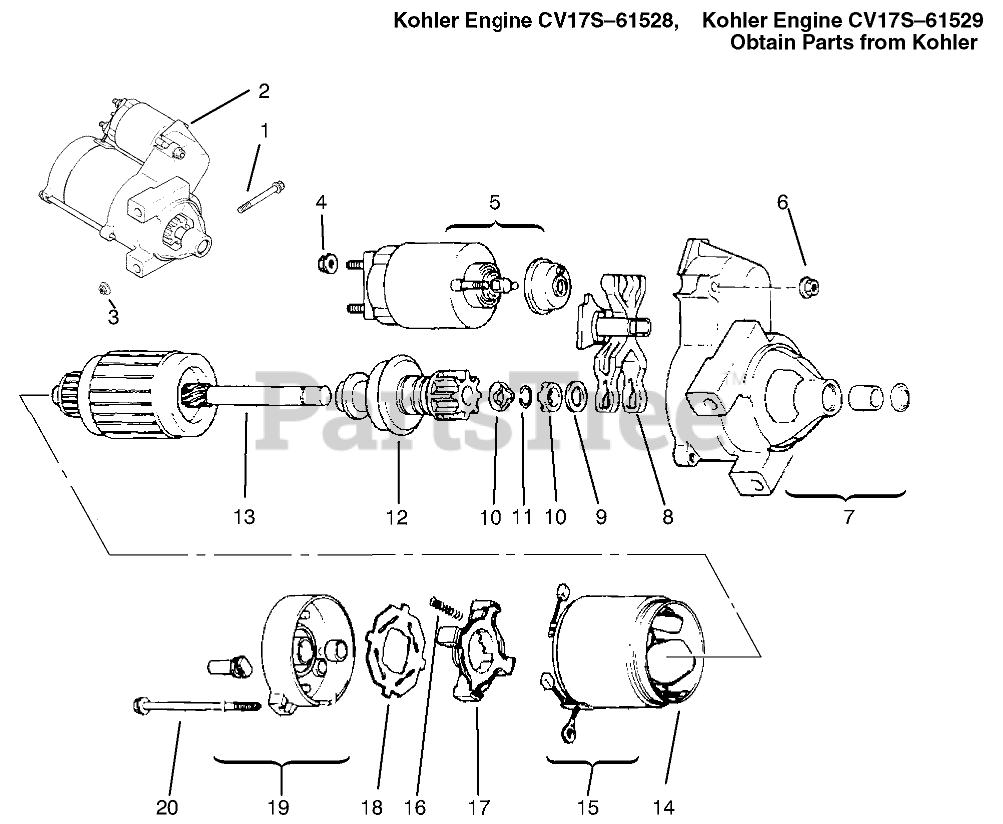

STARTING SYSTEM Parts Diagram

  • Title

1

Toro M-0839080

Scew

$

$

Currently unavailable

2

1209803

Starter INC 4-20

$

$

Not available

3

Toro M-0841080

Nut

$

$

Currently unavailable

4

5210009

Nut

Note: Included in a service kit or in an assembly

$

$

Not available

5

5243502

Solenoid

Note: Included in a service kit or in an assembly

$

$

Not available

6

5210010

Nut

Note: Included in a service kit or in an assembly

$

$

Not available

7

1208102

Cap Drive End

Note: Included in a service kit or in an assembly

$

$

Not available

8

1209010

Lever Starter Drive

Note: Included in a service kit or in an assembly

$

$

Not available

9

4246814

Washer-Thrust

Note: Included in a service kit or in an assembly

$

$

Not available

10

5210008

Nut

Note: Included in a service kit or in an assembly

$

$

Not available

11

5214103

Ring-Retainer

Note: Included in a service kit or in an assembly

$

$

Not available

12

1223901

Drive Pinion

Note: Included in a service kit or in an assembly

$

$

Not available

13

1217003

Armature

Note: Included in a service kit or in an assembly

$

$

Not available

14

1247101

Frame

Note: Included in a service kit or in an assembly

$

$

Not available

15

5222101

Brush Kit

Note: Included in a service kit or in an assembly

$

$

Not available

16

5208909

Spring Brush

Note: Included in a service kit or in an assembly

$

$

Not available

17

5232303

Holder-Brush

Note: Included in a service kit or in an assembly

$

$

Not available

18

5216801

Insulator

Note: Included in a service kit or in an assembly

$

$

Not available

19

1230101

Cap-Commutator End

Note: Included in a service kit or in an assembly

$

$

Not available

20

5221105

Bolt

Note: Included in a service kit or in an assembly

$

$

Not available

2475584

Washer

$

$

Not available
