72086 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE CONTROLS Parts Diagram

Lawn & Garden Tractor

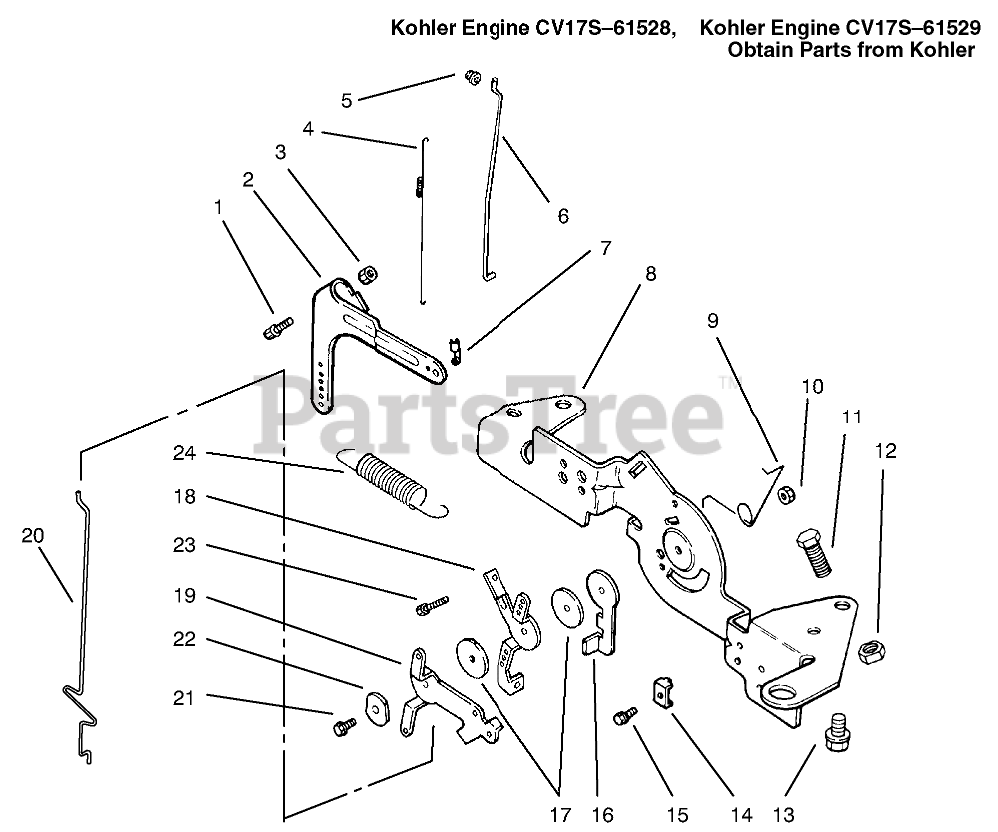

ENGINE CONTROLS Parts Diagram

  • Title
1

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

2

2409014

Lever-Govenor

$

$

Not available

3

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 8

0

4

Kohler 24 089 01

Spring-Linkage
(Superseded to 24 089 01-S)

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 19

0

6

2407904

Linkage-Throttle

$

$

Not available

7

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

$5.99

$

In Stock, Qty 13

0

8

2412613

Bracket-Control

$

$

Not available

9

2408903

Spring-Choke Return

$

$

Not available

10

Kohler M-0547050

Nut
(Superseded to M-547050-S)

$2.49

$

In Stock, only 2 left!

0

11

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

12

Kohler M-0446030

Nut
(Superseded to M-446030-S)

$2.49

$

In Stock, only 4 left!

0

13

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 15

0

14

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

15

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

16

Kohler 24 090 07

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

17

Kohler 24 468 01

Washer
(Superseded to 24 468 01-S)

$2.49

$

In Stock, only 2 left!

0

18

2409003

Lever-Throttle Control

$

$

Not available

19

Kohler 24 090 05

Lever-Choke
(Superseded to 24 090 05-S)

$5.49

$

In Stock, only 2 left!

0

20

2407905

Linkage-Choke

$

$

Not available

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

22

Kohler 41 468 03

Washer-Wave
(Superseded to 41 468 03-S)

$3.49

$

In Stock, only 2 left!

0

23

Kohler M-0403025

Screw-Hex.
(Superseded to M-403025-S)

$4.99

$

In Stock, only 1 left!

0

24

Kohler 24 089 15

Carriage Bolt
(Superseded to 24 089 15-S)

$7.49

$

In Stock, only 1 left!

0
