72085 (267-H) - Toro Lawn & Garden Tractor (SN: 089000400 - 089099999) (1998) HOOD AND GRILL Parts Diagram

Lawn & Garden Tractor

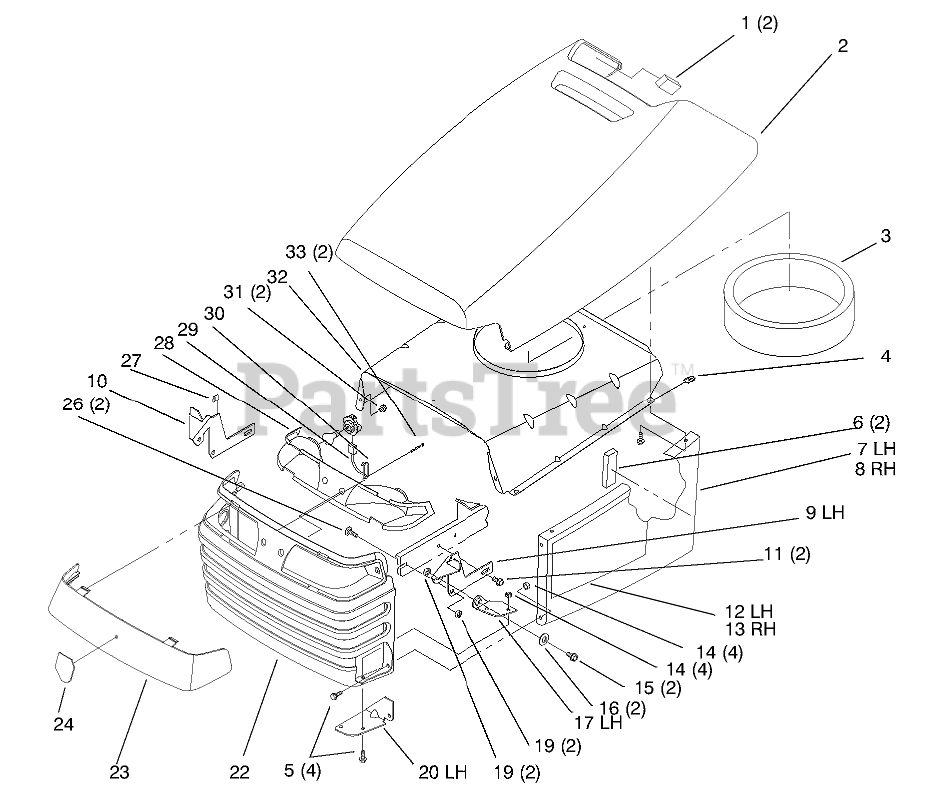

HOOD AND GRILL Parts Diagram

  • Title
1

Toro 94-1980

FOAM-HOOD

$3.99

$

Usually ships in 3-6 days

0

2

Toro 93-0490

HOOD ASM

$

$

Not available

3

Toro 92-7076

SEAL-AIR INLET, TWIN

$73.99

$

Usually ships in 3-6 days

0

4

$4.99

$

Usually ships in 3-6 days

0

5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

6

Toro 92-7148

FOAM-SIDEPANEL

$4.49

$

Usually ships in 3-6 days

0

7

Toro 93-0491

HOOD-SIDE, LH

$193.99

$

Usually ships in 3-6 days

0

8

Toro 93-0492

HOOD-SIDE, RH

$

$

Not available

9

Toro 92-6918-03

BRACKET-HINGE, LH

$66.99

$

Usually ships in 3-6 days

0

10

Toro 92-6917-03

BRACKET-HINGE, RH

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

12

Toro 95-0801

DECAL-HOOD, LH

$

$

Not available

13

Toro 95-0800

DECAL-HOOD, RH

$

$

Not available

14

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

16

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

17

Toro 92-6997-03

HINGE-HOOD, LH

$

$

Not available

18

Toro 92-6996-03

HINGE-HOOD, RH

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 92-7049-03

BRACKET-HOOD HINGE, RH

$

$

Not available

21

Toro 92-7048-03

BRACKET-HOOD HINGE, LH

$

$

Not available

22

Toro 93-0494

Screen/Grill ASM
(Superseded to 100-1344)

$

$

Not available

23

Toro 92-6656

LENS - HEADLIGHT

$106.99

$

Usually ships in 3-6 days

0

24

Toro 92-6987

EMBLEM-HORSEHEAD
(Superseded to 95-4248)

$36.99

$

Usually ships in 3-6 days

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

28

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$179.99

$

Usually ships in 3-6 days

0

29

Toro 88-4320

HARNESS-WIRE, LIGHTS

$76.99

$

Usually ships in 3-6 days

0

31

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 92-6914-03

BAFFLE-HOOD, UPPER

$

$

Not available

33

$2.99

$

Usually ships in 3-6 days

0
