72085 (267-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) HYDRO TRANSAXLE Parts Diagram

Lawn & Garden Tractor

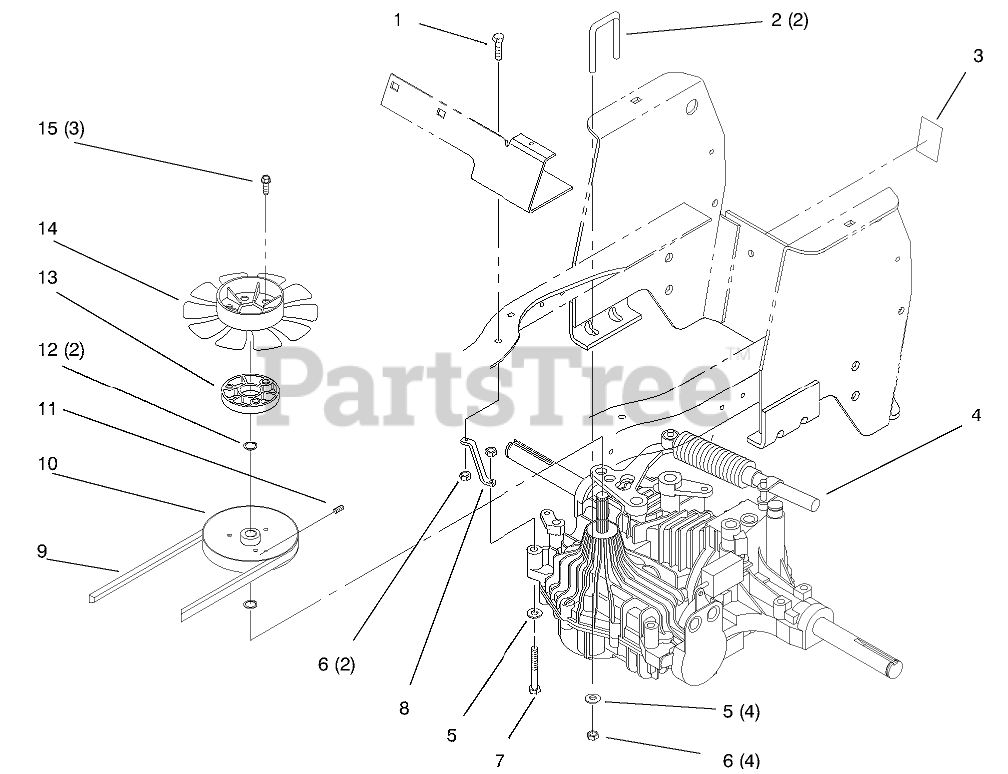

HYDRO TRANSAXLE Parts Diagram

  • Title

1

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Toro 92-6769

U-BOLT

$18.99

$

Usually ships in 3-6 days

0

3

Toro 92-6726

Decal-Hydro Valve (Only On: 72085)

$

$

Not available

3

Toro 92-7090

Decal-Bypass (Only On: 72104)

$

$

Not available

4

Toro 94-4205

TRANSAXLE - HYDROSTATIC
(Superseded to 105-1383)

$

$

Not available

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

8

Toro 93-0546-03

STRAP-TRQ HY

$

$

Not available

9

Toro 92-6954

V-BELT, HYDRO

$63.99

$

In Stock, only 1 left!

0

10

Toro 92-6686

PULLEY-HYDRO TRANS

$94.99

$

In Stock, only 1 left!

0

11

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

12

Toro 936118

SNAP RING

$3.99

$

In Stock, only 2 left!

0

13

Toro 92-6943

SPACER - FAN

$

$

Not available

14

Toro 92-6742

FAN - HYDRO

$41.99

$

In Stock, only 1 left!

0

15

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0
