72084 (266-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) HYDRO TRANSAXLE Parts Diagram

Yard Tractor

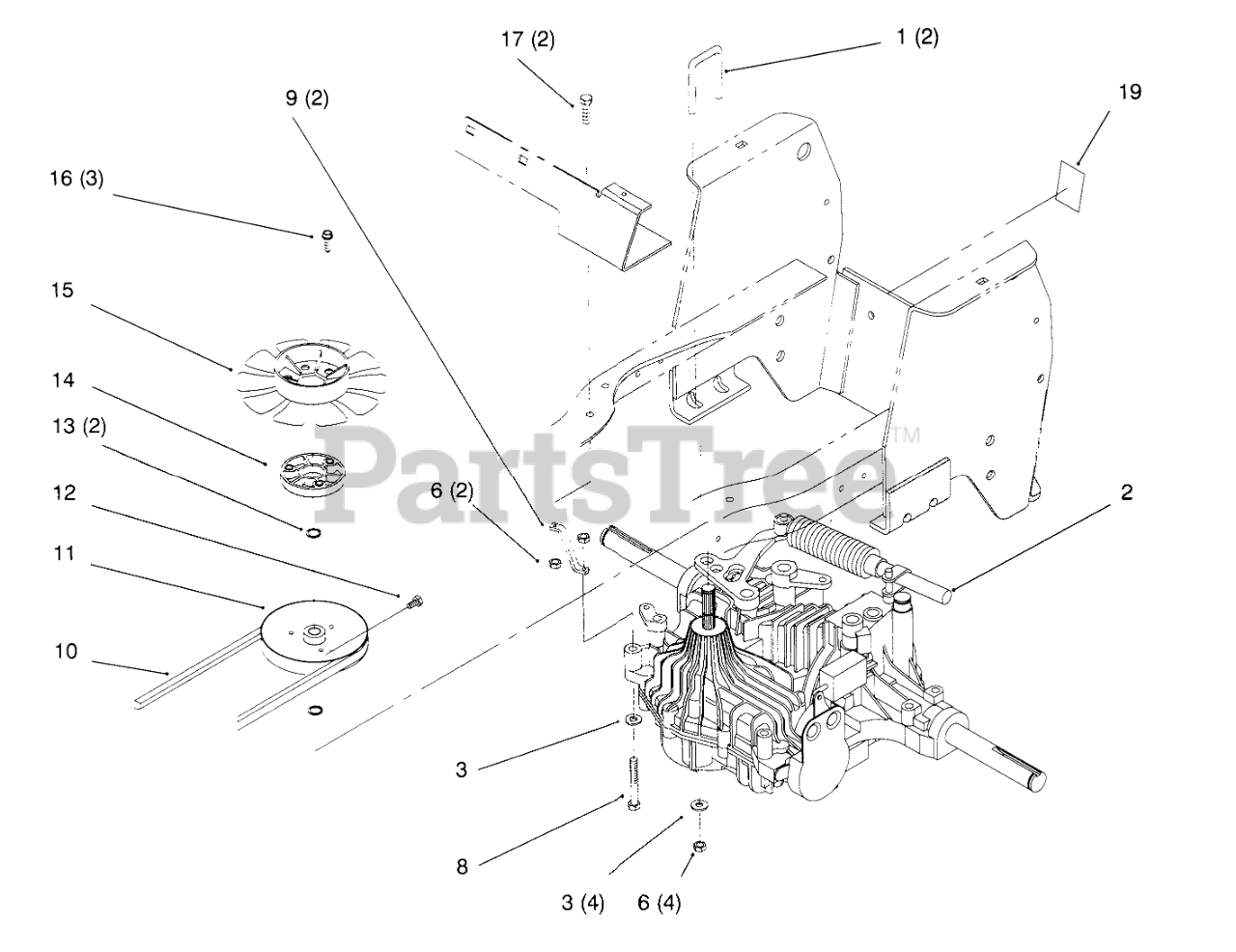

HYDRO TRANSAXLE Parts Diagram

  • Title

1

Toro 92-6769

U-BOLT

$18.99

$

Usually ships in 3-6 days

0

2

Toro 92-6762

Transaxle-Tuff Torq K61
(Superseded to 105-1383)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

9

Toro 93-0525-03

Strap-Torque

$

$

Currently unavailable

10

Toro 92-6718

Belt-Hydro
(Superseded to 92-6954)

$63.99

$

In Stock, only 1 left!

0

11

Toro 92-6686

PULLEY-HYDRO TRANS

$94.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

13

Toro 936118

SNAP RING

$3.99

$

In Stock, only 2 left!

0

14

Toro 92-6943

SPACER - FAN

$

$

Not available

15

Toro 92-6742

FAN - HYDRO

$41.99

$

In Stock, only 1 left!

0

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 92-6726

DECAL-VALVE, HYDRO

$

$

Not available
