72084 (266-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) HEAD/VALVE/BREATHER KOHLER ENGINE CV16S-PS61514 Parts Diagram

Yard Tractor

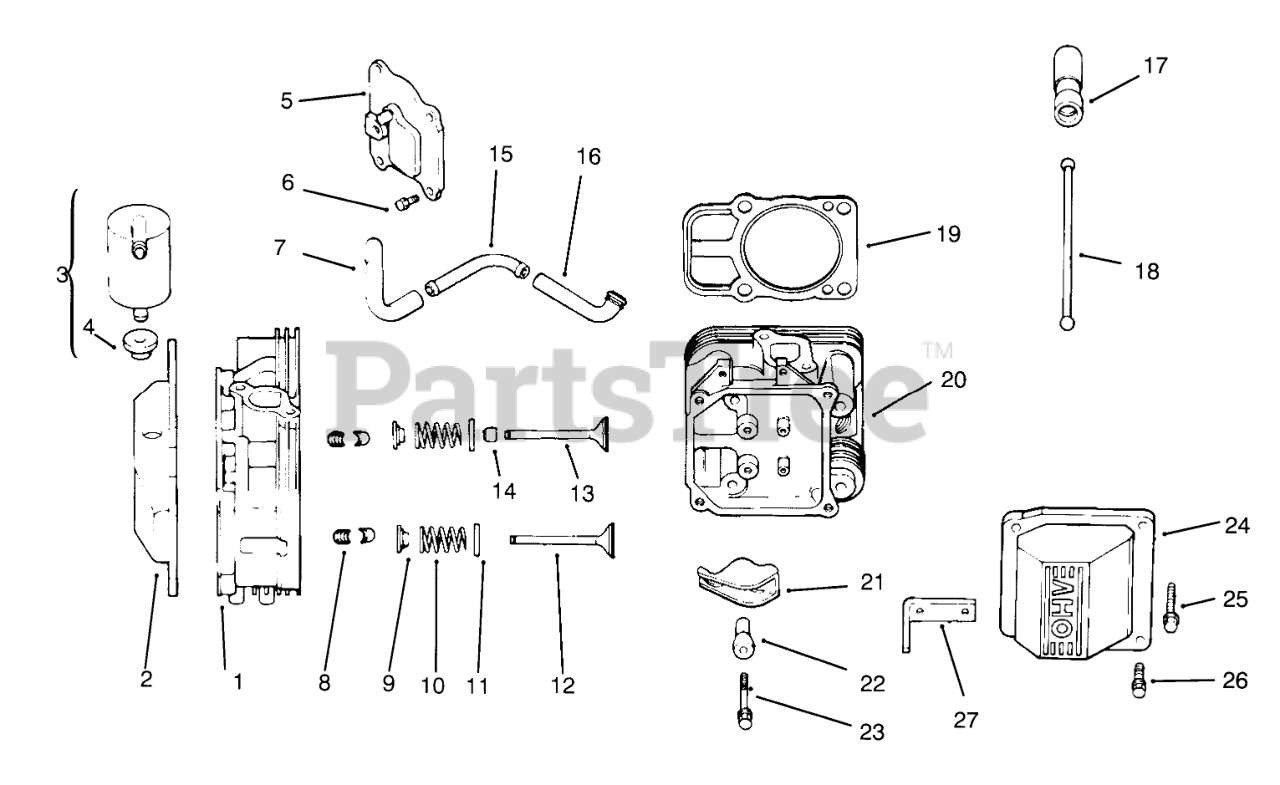

HEAD/VALVE/BREATHER KOHLER ENGINE CV16S-PS61514 Parts Diagram

  • Title

1

24318 11

Head ASM-#1 Cylinder

$

$

Not available

2

2409616

Cover-Rocker

$

$

Not available

3

2475520

Kit-Breather INC 4

$

$

Not available

4

2531302

Grommet-Rubber

Note: Included in a service kit or in an assembly

$

$

Not available

5

2409615

Cover-Breather

$

$

Not available

6

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

7

2432605

Hose-Breather

$

$

Not available

8

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, only 3 left!

0

9

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 9

0

10

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

$7.99

$

Usually ships in 2-5 days

0

11

5201801

Retainer-Spring

$

$

Not available

12

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

$15.99

$

In Stock, Qty 7

0

13

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

$30.99

$

In Stock, Qty 20+

0

14

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 8

0

15

2429402

Fitting

$

$

Not available

16

2432604

Hose-Breather

$

$

Not available

17

1235101

Lifter-Valve

$

$

Not available

18

2441102

Rod-Push

$

$

Not available

19

2404108

Gasket-Cylinder Head

$

$

Not available

20

2431812

#2 Cyl. Head Asm,

$

$

Not available

21

2418602

Arm-Rocker

$

$

Not available

22

2419401

Pivot-Rocker Arm

$

$

Not available

23

Kohler M-0640034

Screw

$

$

Not available

24

2409612

Cover-Rocker

$

$

Not available

25

1208616

Screw

$

$

Not available

26

Kohler M-0651030

Screw
(Superseded to M-651030-S)

$

$

Not available

27

2444501

Strap-Lifting

$

$

Not available
