72084 (266-H) - Toro Yard Tractor (SN: 059000001 - 059999999) (1995) HYDRO BRAKE Parts Diagram

Yard Tractor

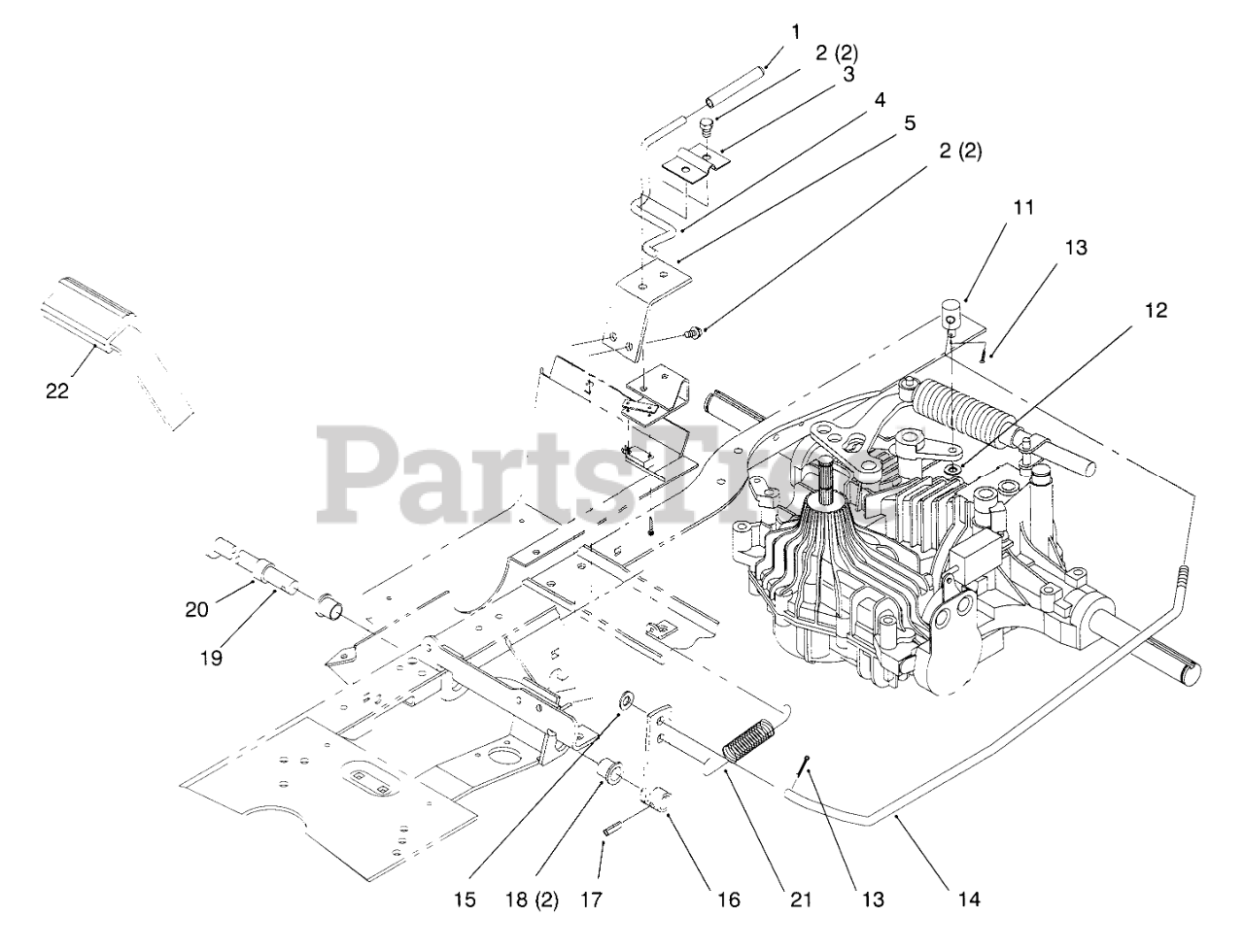

HYDRO BRAKE Parts Diagram

  • Title

1

Toro 92-7009

GRIP - PARKING BRAKE

$

$

Not available

2

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

3

Toro 92-7000-03

BRKT-PARKING BRAKE

$

$

Not available

4

Toro 93-3167

ROD - PARKING BRAKE

$

$

Not available

5

Toro 92-7004-03

SUPPORT - P. BRAKE

$16.99

$

Usually ships in 3-6 days

0

11

Toro 92-6968

TRUNNION - BRAKE

$43.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6988

ROD - BRAKE

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 92-6948-03

Lever-Brake
(Superseded to 94-1722-03)

$

$

Not available

17

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

18

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

19

Toro 92-6951-03

Pedal-Brake
(Superseded to 94-4233-03)

$

$

Not available

20

Toro 92-6982

SPACER-BRAKE

$

$

Not available

21

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

22

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0
