72084 (266-H) - Toro Yard Tractor (SN: 059000001 - 059999999) (1995) FUEL SYSTEM KOHLER ENGINE CV16S-PS61514 Parts Diagram

Yard Tractor

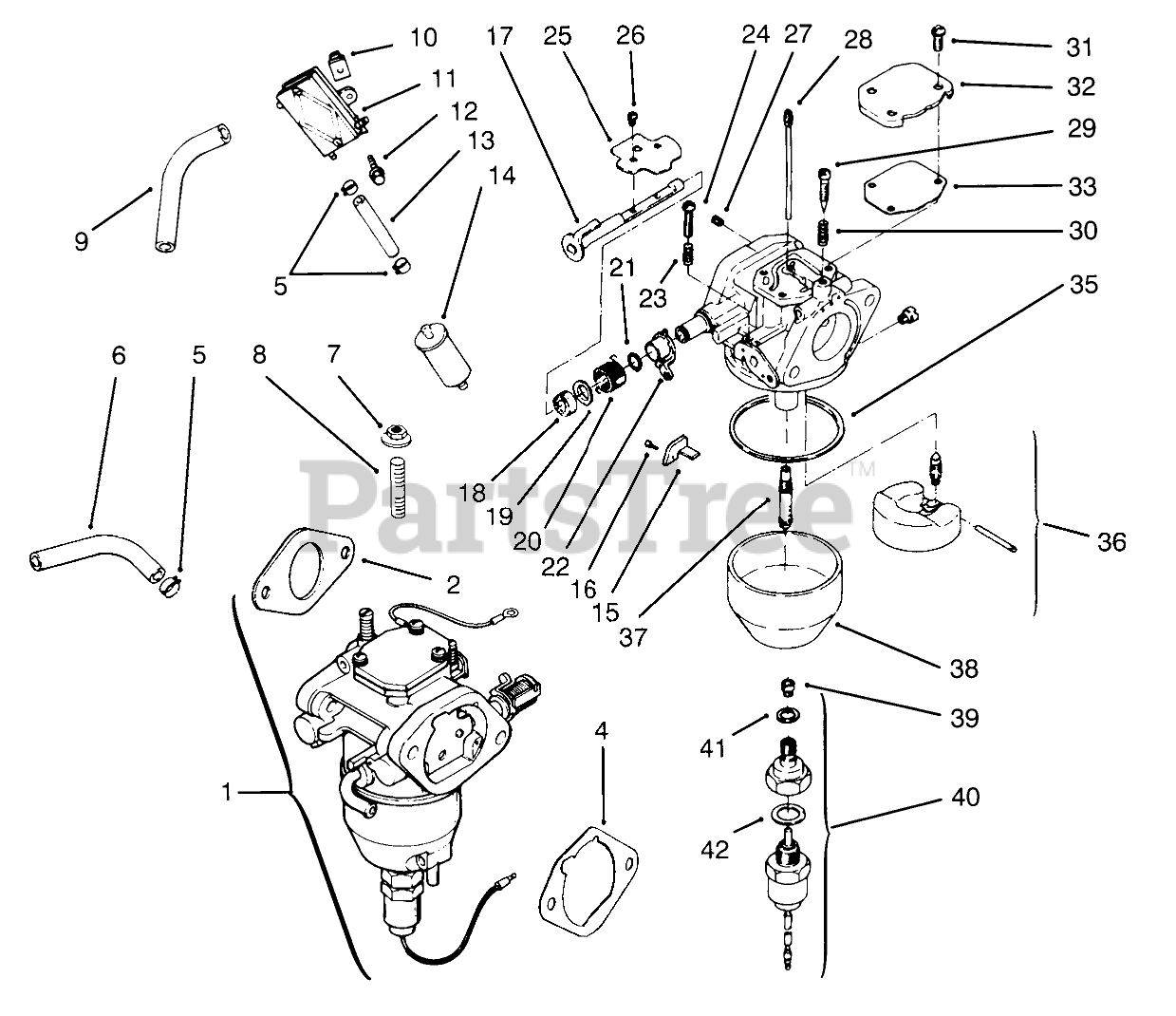

FUEL SYSTEM KOHLER ENGINE CV16S-PS61514 Parts Diagram

1

Kohler 24 853 24

Kit-Carb INC 2/4/15-42
(Superseded to 24 853 41-S)

$411.99

$

Usually ships in 2-5 days

0

2

2404115

Kit-Carburetor

Note: Included in a service kit or in an assembly

$

$

Not available

4

2404114

Gasket-A/C Base

Note: Included in a service kit or in an assembly

$

$

Not available

5

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

6

2435303

Line-Fuel

$

$

Not available

$

$

Not available

$

$

Not available

9

5235322

Line-Fuel 12"

$

$

Not available

10

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

11

2439304

Pump-Fuel

$

$

Not available

12

2408612

Screw

$

$

Not available

13

2535315

Line-Fuel

$

$

Not available

14

2505002

Filter-Fuel

$

$

Not available

15

Kohler 2412629

Bracket-Throttle Stop

Note: Included in a service kit or in an assembly

$

$

Not available

16

Kohler M-0259006

Screw

Note: Included in a service kit or in an assembly

$0.99

$

Usually ships in 2-5 days

0

17

2414415

Shaft-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

18

2446805

Washer

Note: Included in a service kit or in an assembly

$

$

Not available

19

2424101

Collar-Coke

Note: Included in a service kit or in an assembly

$

$

Not available

20

2408922

Spring-Choke Return

Note: Included in a service kit or in an assembly

$

$

Not available

21

2414104

Ring-Choke Lever

Note: Included in a service kit or in an assembly

$

$

Not available

22

2409010

Lever-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

23

2408924

Sprin-Throttle Screw

Note: Included in a service kit or in an assembly

$

$

Not available

24

2408619

Screw-Throttle Adjust

Note: Included in a service kit or in an assembly

$

$

Not available

25

2446202

Valve-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

26

2408620

Screw

Note: Included in a service kit or in an assembly

$

$

Not available

27

2433727

Jet-Air Bleed

Note: Included in a service kit or in an assembly

$

$

Not available

28

2433711

Jet-Slow

Note: Included in a service kit or in an assembly

$

$

Not available

29

2408622

Screw

Note: Included in a service kit or in an assembly

$

$

Not available

30

2408923

Spring-idler Screw

Note: Included in a service kit or in an assembly

$

$

Not available

31

2408621

Screw

Note: Included in a service kit or in an assembly

$

$

Not available

32

2409613

Cover-Passage

Note: Included in a service kit or in an assembly

$

$

Not available

33

Kohler 24 041 18

Gasket-PassageCover
(Superseded to 24 757 20)

Note: Included in a service kit or in an assembly

$62.99

$

In Stock, only 1 left!

0

35

Kohler 24 041 19

Gasket-FloatChamber
(Superseded to 24 757 20)

Note: Included in a service kit or in an assembly

$62.99

$

In Stock, only 1 left!

0

36

2475705

Kit-Float Repair

Note: Included in a service kit or in an assembly

$

$

Not available

37

2436901

Nozzle-Main

Note: Included in a service kit or in an assembly

$

$

Not available

38

2423401

Chamber-Float

Note: Included in a service kit or in an assembly

$

$

Not available

39

2433720

Jet-Main

Note: Included in a service kit or in an assembly

$

$

Not available

40

Kohler 24 755 15

Kit-Solenoid INC41-42
(Superseded to 24 757 22)

Note: Included in a service kit or in an assembly

$217.99

$

In Stock, only 2 left!

0

41

Kohler 24 041 21

Gasket-ChamberScrew
(Superseded to 24 041 21-S)

Note: Included in a service kit or in an assembly

$

$

Not available

42

2404120

Gasket-Solenoid

Note: Included in a service kit or in an assembly

$

$

Not available

2404115

Kit-Carburetor

Note: Not illustrated

$

$

Not available

2406322

Baffle-Carburetor

Note: Not illustrated

$

$

Not available

Kohler 24 755 25

Kit-Hi Alt 1500-3000M
(Superseded to 24 755 25-S)

Note: Not illustrated

$

$

Not available

Kohler 24 755 26

Kit-Hi Alt Over 3000M
(Superseded to 24 755 26-S)

Note: Not illustrated

$

$

Not available

2475706

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
