72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) HYDRO CONTROL Parts Diagram

Yard Tractor

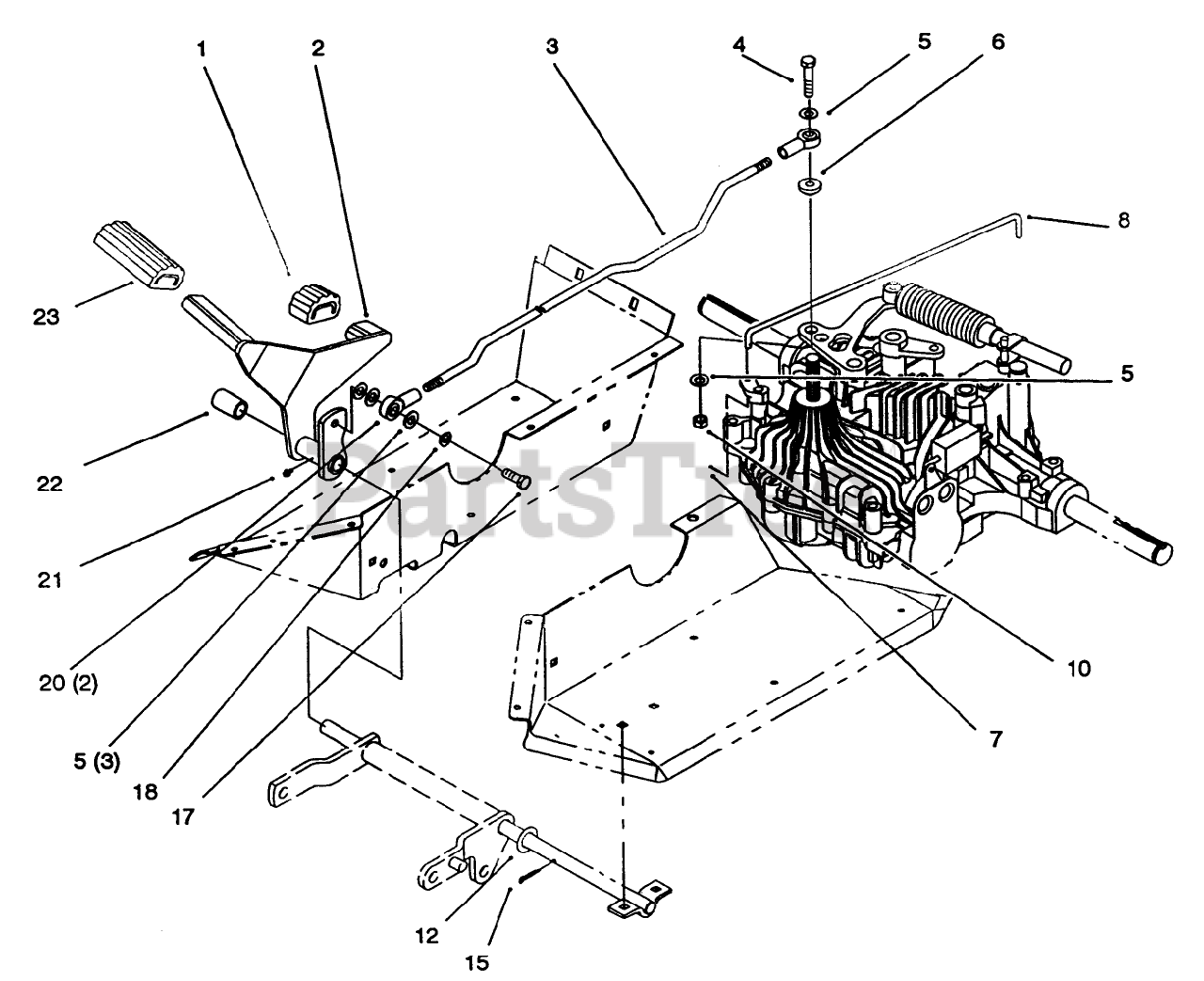

HYDRO CONTROL Parts Diagram

  • Title

1

Toro 92-6903

Pad-Pedal Reverse (Only On: 72043, 72103, 72063, 72083)

$7.99

$

Usually ships in 3-6 days

0

2

Toro 92-6913-03

Pedal-Hydro (Only On: 72043, 72103, 72063, 72083)

$

$

Not available

3

Toro 92-7018

Rod (Only On: 72043, 72103, 72063, 72083)

$

$

Not available

4

Toro 323-9

Screw-HH (Only On: 72043, 72103, 72063, 72083)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

Washer-Flat (Only On: 72043, 72103, 72063, 72083)

$0.99

$

In Stock, Qty 20+

0

6

Toro 92-6962

Bushing (Only On: 72043, 72103, 72063, 72083)

$

$

Not available

7

Toro 3272-2

Pin-Cotter (Only On: 72043, 72103, 72063, 72083)

$2.99

$

In Stock, only 2 left!

0

8

Toro 92-6970

Rod-Bypass (Only On: 72043, 72103, 72063, 72083)

$

$

Not available

10

Toro 3296-39

Nut-Hex Lock (Only On: 72103, 72063, 72083, 72043)

$2.99

$

In Stock, Qty 16

0

12

Toro 9202154

Washer-Flat (Only On: 72043, 72103, 72063, 72083)

$3.49

$

In Stock, Qty 5

0

15

Toro 3272-16

Pin-Cotter (Only On: 72043, 72103, 72063, 72083)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 323-7

Screw (Only On: 72103, 72063, 72083, 72043)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3253-5

Washer-Lock (Only On: 72043, 72103, 72063, 72083)

$0.99

$

In Stock, Qty 19

0

20

Toro 92-7008

Rod End (Only On: 72043, 72103, 72063, 72083)

$52.99

$

Usually ships in 3-6 days

0

21

Toro 302-26

Fitting-Grease (Only On: 72043, 72103, 72063, 72083)

$7.49

$

In Stock, only 1 left!

0

22

Toro 92-6966

Spacer-Hydro Pedal (Only On: 72043, 72103, 72063, 72083)

$

$

Not available

23

Toro 92-6902

Pad-Pedal Forward (Only On: 72043, 72103, 72063, 72083)

$

$

Not available
