72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) GEAR DRIVE COMPONENTS Parts Diagram

Yard Tractor

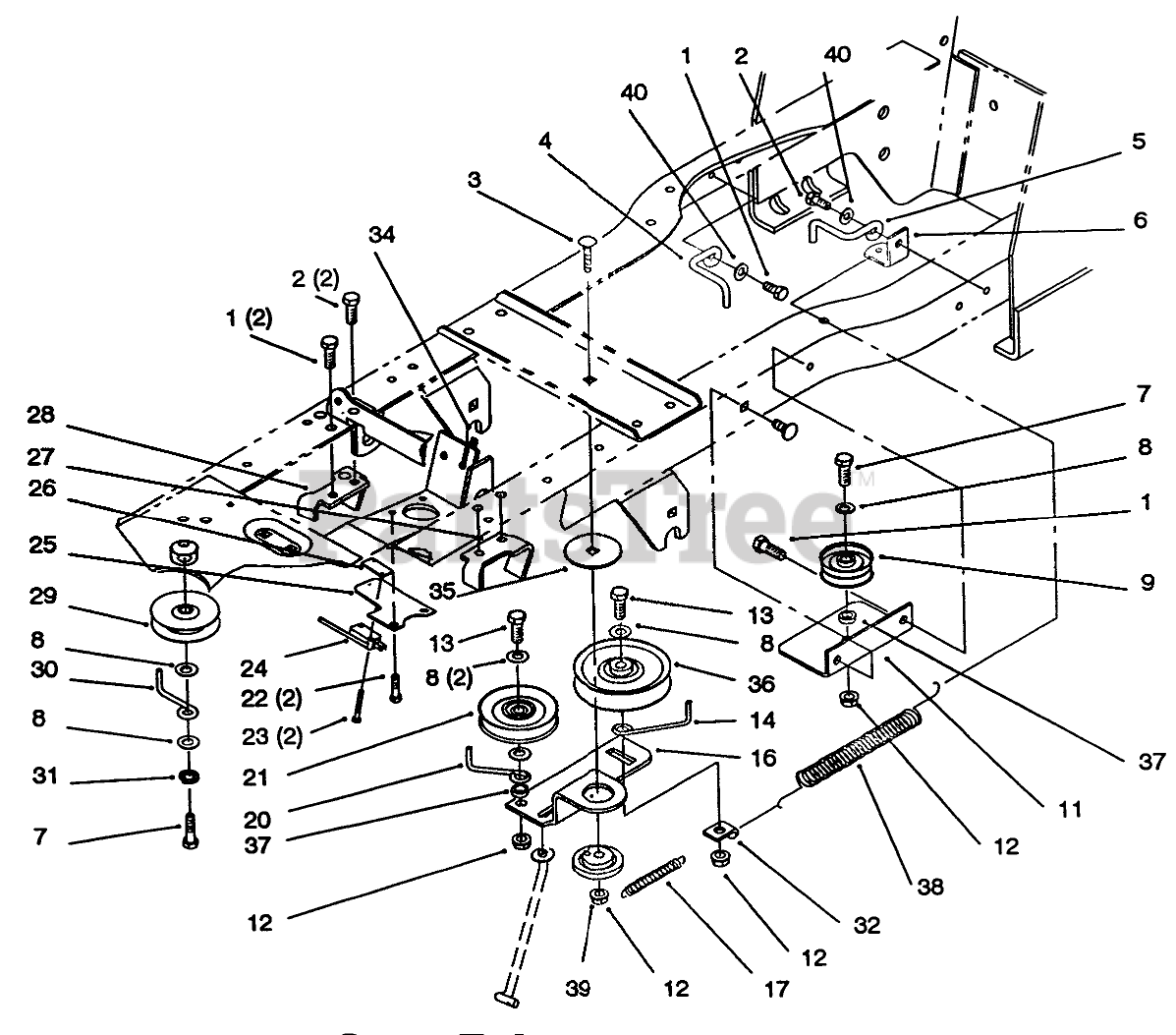

GEAR DRIVE COMPONENTS Parts Diagram

  • Title

1

Toro 32144-14

Screw-HH (Only On: 72042, 72062)

$4.99

$

In Stock, only 3 left!

0

2

Toro 32144-70

Screw-TAF (Only On: 72042, 72042, 72062)

$2.99

$

In Stock, Qty 20+

0

3

Toro 3231-25

Screw-CARR (Only On: 72042, ,2062)
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

4

Toro 92-7001

Guide-Belt RH (Only On: 72042, 72062)

$

$

Not available

5

Toro 92-7002

Guide-Belt LH (Only On: 72042, 72062)

$

$

Not available

6

Toro 92-6891-03

Bracket-Idler Spring (Only On: 72042, 72062)
(Superseded to 92-6891)

$

$

Not available

7

Toro 323-9

Screw-HH (Only On: 72042, 72062)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

Washer-Flat (Only On: 72042, 72062)

$0.99

$

In Stock, Qty 20+

0

9

Toro 607978

Pulley-Idler (Only On: 72042, 72062)

$27.99

$

In Stock, only 1 left!

0

11

Toro 92-6894-03

Bracket-Idler Rear (Only On: 72042, 72062)

$

$

Not available

12

Toro 3296-39

Nut-Hex Loek (Only On: 72042, 72062)

$2.99

$

In Stock, Qty 20+

0

13

Toro 323-10

Screw (Only On: 72042, 72062)

$0.99

$

In Stock, Qty 20+

0

14

Toro 79-0390

Guide-Belt (Only On: 72042, 72062)

$

$

Not available

16

Toro 78-6771

Arm-Idler (Only On: 72042, 72062)

$

$

Not available

17

Toro 107788

Spring-Extension (Only On: 72042, 72062)

$14.99

$

Usually ships in 3-6 days

0

20

Toro 79-0400

Guide-Belt (Only On: 72042, 72062)

$

$

Not available

21

Toro 92-7102

Pulley-Idler (Only On: 72042, 72062)

$71.99

$

In Stock, only 1 left!

0

22

Toro 32144-4

Screw-TAP (Only On: 72042, 72062)

$1.49

$

In Stock, Qty 20+

0

23

Toro 147665

Screw (Only On: 72042, 72062)
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

24

Toro 88-9930

Switch-Micro (Only On: 72042, 72062)

$41.99

$

In Stock, only 2 left!

0

25

Toro 92-6932

Bracket-Microswitch (Only On: 72042, 72062)
(Superseded to 93-0526-03)

$

$

Not available

26

Toro 3290-354

Nut-Speed (Only On: 72042, 72062)

$10.99

$

Usually ships in 3-6 days

0

27

Toro 92-6670

Bracket-Clutch (Only On: 72042, 72062)

$

$

Not available

28

Toro 92-6671

Bracket-Brake (Only On: 72042, 72062)
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

29

Toro 93-0320

Pulley-Idler (Only On: 72042, 72062)

$21.99

$

In Stock, only 4 left!

0

30

Toro 79-1790

Guide-Belt (Only On: 72042, 72062)

$

$

Not available

31

Toro 3253-5

Washer-Lock (Only On: 72042, 72062)

$0.99

$

In Stock, Qty 15

0

32

Toro 2534

Clip-Spring (Only On: 72042, 72062)

$4.99

$

In Stock, only 2 left!

0

34

Toro 614249

Tie Strap (Only On: 72042, 72062)

$1.49

$

In Stock, only 2 left!

0

35

Toro 111419

Washer-Bearing (Only On: 72042, 72062)

$

$

Not available

36

Toro 92-7101

Pulley-Flat Idler (Only On: 72042, 72062)

$34.99

$

In Stock, only 2 left!

0

37

Toro 93-3658-03

Spacer (Only On: 72042, 72062)

$

$

Currently unavailable

38

Toro 79-7530

Spring-Extension (Only On: 72042, 72062)

$37.99

$

Usually ships in 3-6 days

0

39

Toro 111418

Bushing (Only On: 72042, 72062)

$32.99

$

Usually ships in 3-6 days

0

40

Toro 3256-23

Washer-Flat (Only On: 72042, 72062)

$2.49

$

In Stock, Qty 20+

0
