72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) ENGINE CONTROLS Parts Diagram

Yard Tractor

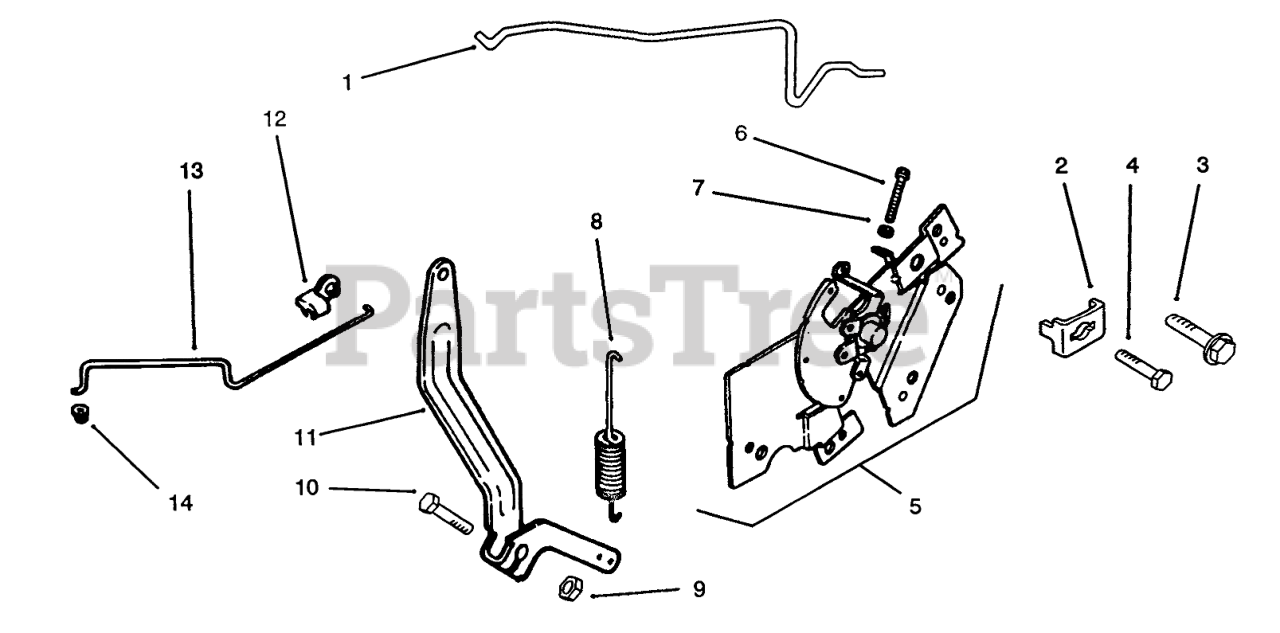

ENGINE CONTROLS Parts Diagram

  • Title

1

1207907

Linkage-Choke (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

2

Kohler 12 237 01

Clamp-Cable (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler M-0645016

Screw-HH (Only On: 72042, 72063, 72362, 72043)
(Superseded to M-645016)

$3.99

$

In Stock, Qty 13

0

4

Kohler M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

5

1253602

Control-ASM INC 6-7 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

6

Kohler M-0401030

Screw-HHF M4x0.7x28 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-401030-S)

Note: Included in a service kit or in an assembly

$3.49

$

In Stock, Qty 9

0

7

Kohler M-0446030

Nut-Hex M4x0.7 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-446030-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 4 left!

0

8

5208907

Spring-Governor (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

9

Kohler SM-0641060

Nut M6x1.0 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

10

Kohler SM-0642025

Screw M6x1.0x25 (Only On: 72042, 72063, 72062, 72043)
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

11

1209005

Lever-Governor (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

12

Kohler 25 158 11

Bushing-Linkage (Only On: 72042, 72063, 72062, 72043)
(Superseded to 25 158 11-S)

$5.99

$

In Stock, only 2 left!

0

13

1207901

Linkage-Throttle (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

14

Kohler 25 158 08

Bushing-Linkage (Only On: 72042, 72063, 72062, 72043)
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 18

0
