72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) CENTER CASE Parts Diagram

Yard Tractor

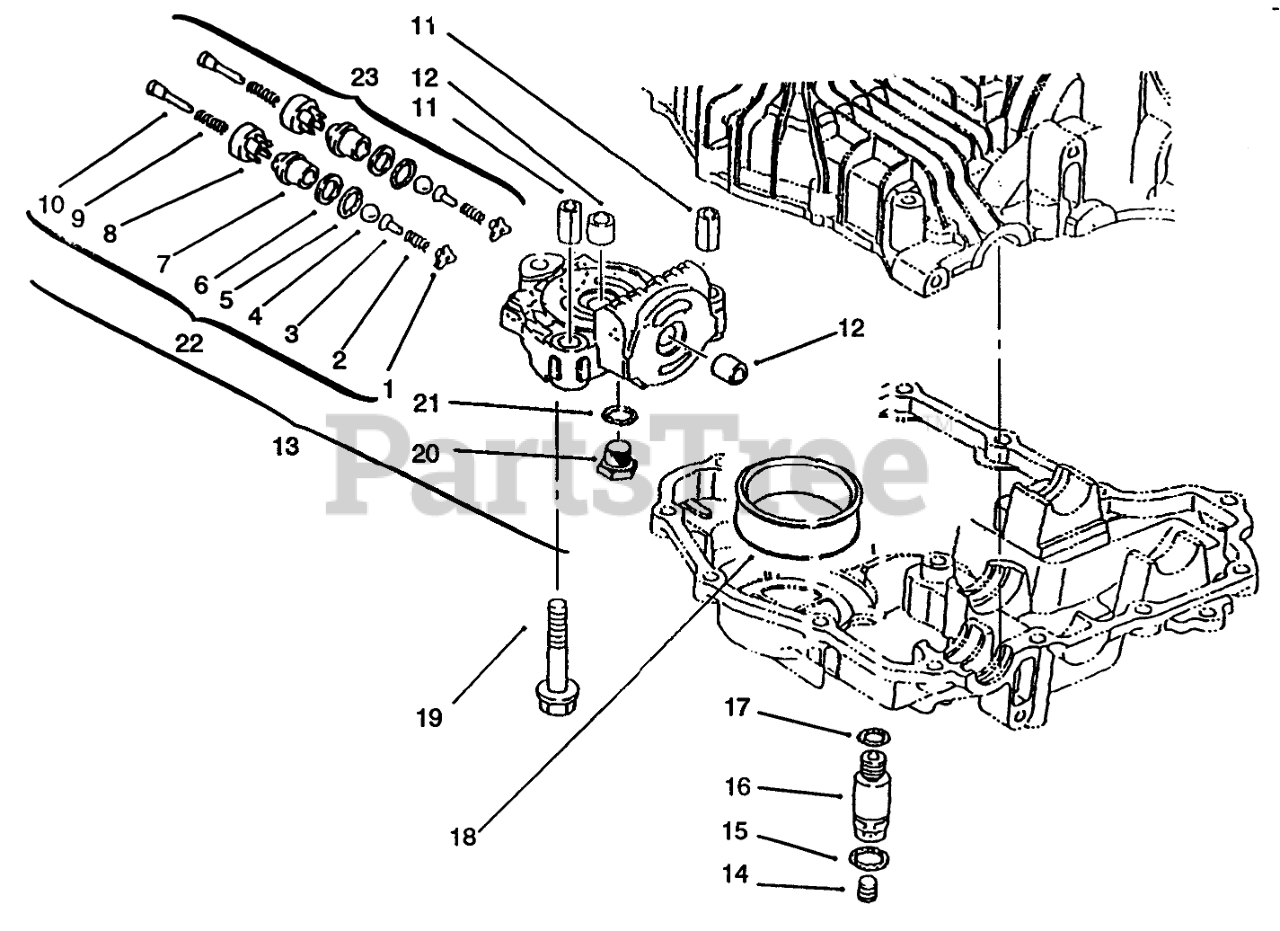

CENTER CASE Parts Diagram

  • Title

1

Toro 93-0461

Holder-Bypass (Only On: 72083, 72043, 72103, 72063)
(Superseded to 93-0482)

Note: Included in a service kit or in an assembly

$

$

Not available

2

Spring (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

3

Holder-Ball (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

4

Ball (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

5

Toro 93-0465

Packing (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

6

Toro 93-0466

Ring-Back Up (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

7

Sleeve A1 (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Valve B (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

9

Spring (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

10

Pin-Push (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

11

Toro 93-0471

Pin-Knock (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

Toro 93-0472

Bushing (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

13

Toro 93-0484

Case INC 11-12 & 20-23 (Only On: 72083, 72043)
(Superseded to 99-3697)

$

$

Not available

14

Toro 93-0474

Plug (Only On: 72083, 72043, 72103, 72063)

$13.99

$

Usually ships in 3-6 days

0

15

Toro 93-0475

Packing (Only On: 72083, 72043, 72103, 72063)

$9.49

$

Usually ships in 3-6 days

0

16

Toro 93-0476

Connector (Only On: 72083, 72043, 72103, 72063)

$102.99

$

Usually ships in 3-6 days

0

17

Toro 93-0481

Packing (Only On: 72083, 72043, 72103, 72063)

$10.99

$

Usually ships in 3-6 days

0

18

Toro 93-0478

Filter (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

19

Toro 93-0479

Bolt (Only On: 72083, 72043, 72103, 72063)

$11.99

$

Usually ships in 3-6 days

0

20

Toro 93-0480

Plug (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

21

Toro 93-0481

Packing (OnlyOn: 72083. 72043, 72103, 72063)

$10.99

$

Usually ships in 3-6 days

0

22

Toro 93-0482

Valve ASM A1 INC 1-10 (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

23

Toro 93-0483

Valve ASM A2 (Only On: 72083, 72043, 72103, 72063)

$

$

Not available
