72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) AXLE SHAFT Parts Diagram

Yard Tractor

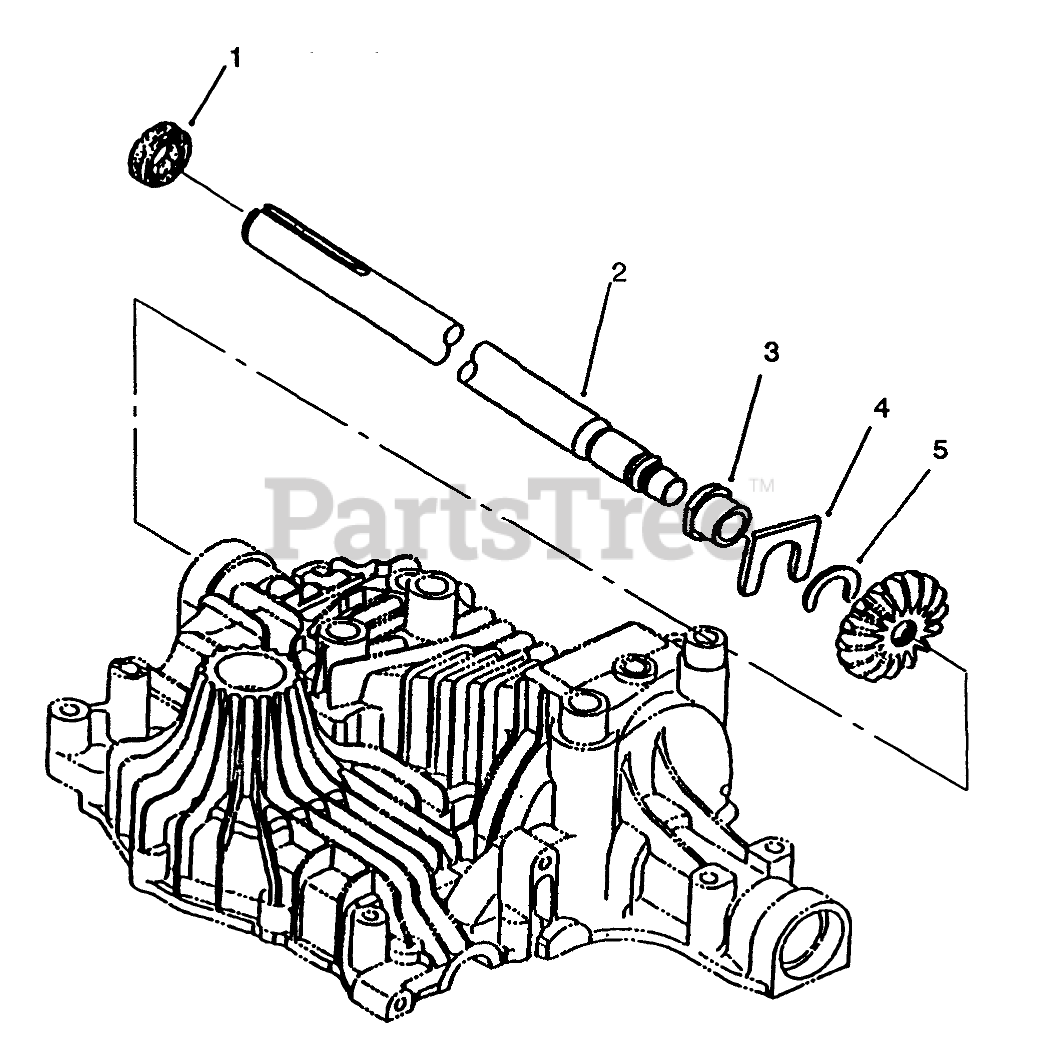

AXLE SHAFT Parts Diagram

  • Title
1

Toro 93-0451

Seal (OnlyOn: 72083, 72043, 72103, 72063)

$

$

Not available

2

Toro 93-0452

Shaft-Axle Right (Only On: 72083, 72043, 72103, 72063)
(Superseded to 99-3699)

$293.99

$

Usually ships in 3-6 days

0

3

Toro 93-0454

Bushing (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

4

Toro 93-0455

Wahser-Thrust (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

5

Toro 93-0456

Ring (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

Toro 93-0453

Shaft-Axle Left (Only On: 72083, 72043, 72103, 72063)
(Superseded to 99-3698)

Note: Not illustrated

$293.99

$

Usually ships in 3-6 days

0
