72083 (266-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) AIR INTAKE/FILTRATION Parts Diagram

Yard Tractor

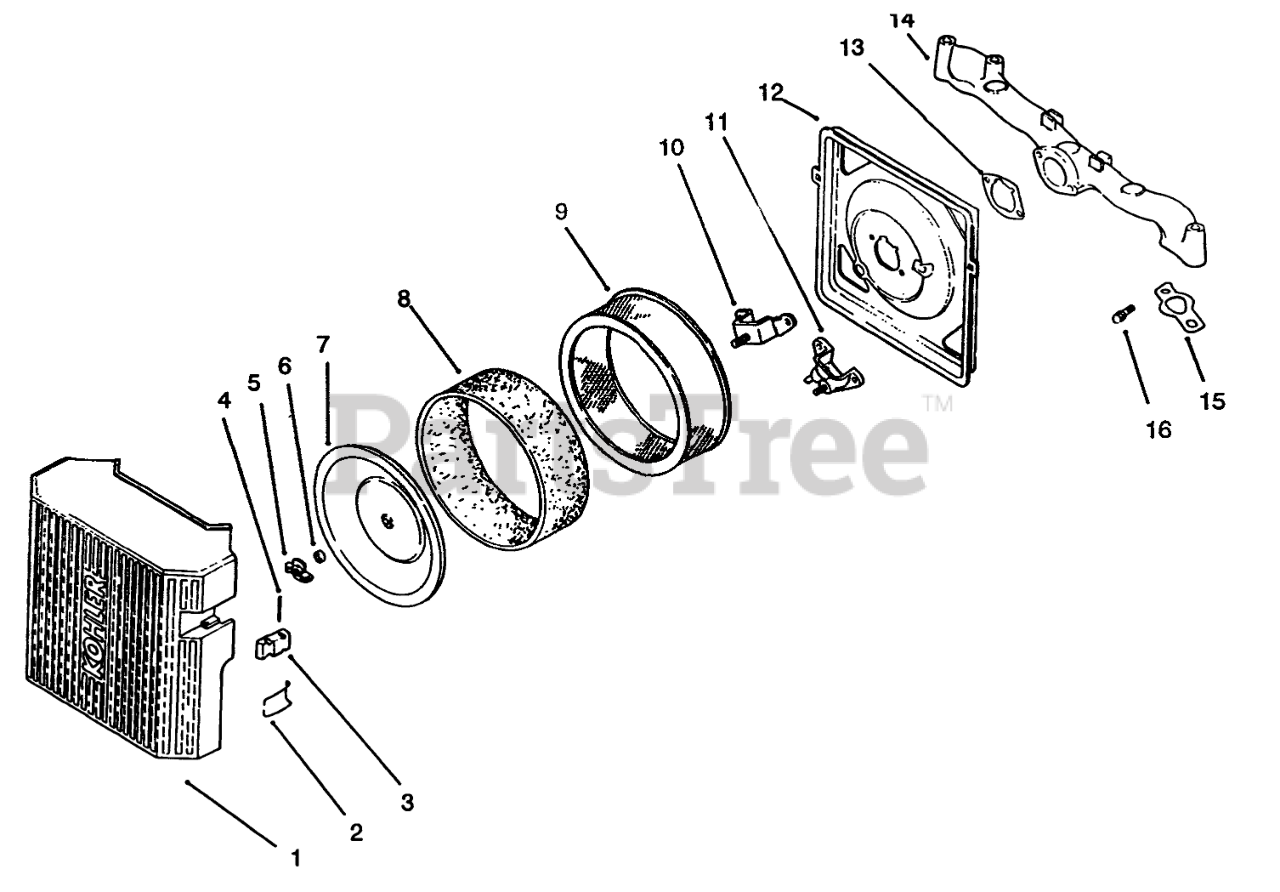

AIR INTAKE/FILTRATION Parts Diagram

  • Title

1

2474301

Kit-A/C Cover INC 2-4 (Only On: 72103, 72083)

$

$

Not available

2

2408904

Spring-Latch (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Not available

3

2434401

Latch-Lever (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Not available

4

2438003

Pin-Latch Lever (Only On: 72103, 72083)

Note: Included in a service kit or in an assembly

$

$

Not available

5

Kohler 12 100 01

Nut-Wing (Only On: 72103, 72083)
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 2 left!

0

6

2403203

Seal-Air Intake (Only On: 72103, 72083)

$

$

Not available

7

Kohler 24 096 01

Cover-Inner Air Cleaner (Only On: 72103, 72083)
(Superseded to 24 096 01-S)

$16.99

$

In Stock, only 1 left!

0

8

2408302

Element-Precleaner (Only On: 72103, 72083)

$

$

Not available

9

4708303

Element-Air Cleaner (Only On: 72103, 72083)

$

$

Not available

10

2410901

Cup-Fuel Spitback (Only On: 72103, 72083)

$

$

Not available

11

2404113

Gasket-Fuel Spitback Cup (Only On: 72103, 72083)

$

$

Not available

12

2409402

Base-Air Cleaner (Only On: 72103, 72083)

$

$

Not available

13

2404114

Gasket-A/C Base (Only On: 72103, 72083)

$

$

Not available

14

2416406

Manifold-Intake (Only On: 72103, 72083)

$

$

Not available

15

Kohler 24 041 01

Gasket-Intake Manifold (Only On: 72103, 72083)
(Superseded to 24 041 01-S)

$2.99

$

In Stock, Qty 7

0

16

Kohler M-0639055

Screw M6x1.0x18 (Only On: 72103, 72083)
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0
