72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) HOOD ASSEMBLY Parts Diagram

Yard Tractor

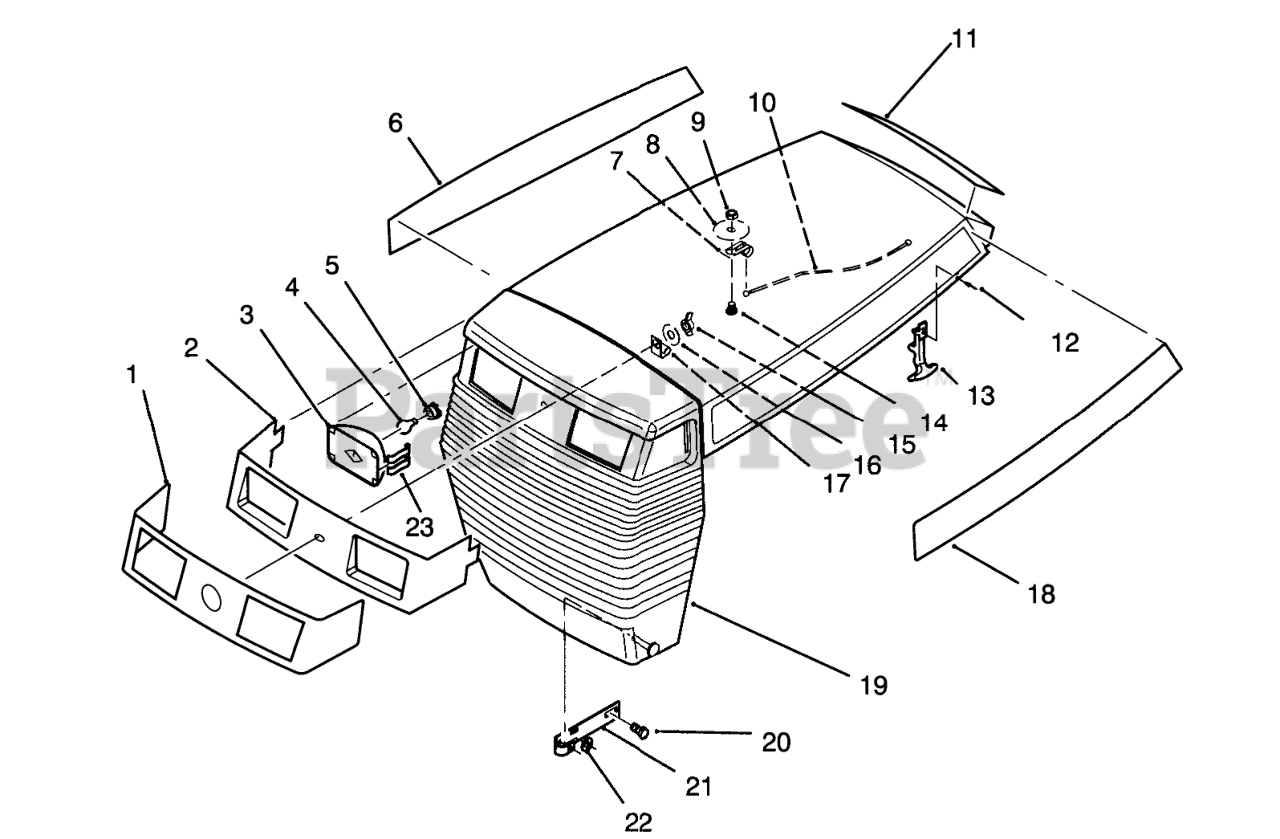

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 116874

DECAL-FRONT HOOD

$

$

Not available

2

Toro 116601

LIGHT-BAR BLACK

$

$

Not available

3

Toro 111684

LIGHT POD

$

$

Not available

4

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

5

Toro 116262

SOCKET-HEADLIGHT

$55.99

$

Usually ships in 3-6 days

0

6

Toro 79-4160

DECAL HOOD RH

$

$

Not available

7

Toro 115413

CLEVIS

$

$

Not available

8

Toro 112925

WASHER-BACKING

$

$

Not available

9

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

10

Toro 78-9341

CABLE-ASS'Y

$

$

Not available

11

Toro 88-0010

DECAL - DANGER

$

$

Not available

12

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 117344

HANDLE ASM

$36.99

$

In Stock, only 1 left!

0

14

Toro 78-8710

SCREW

$0.99

$

Usually ships in 3-6 days

0

15

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

16

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

17

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

18

Toro 79-4170

DECAL-HOOD L.H. 246H

$

$

Not available

19

Toro 88-2781

Hood Assembly (Incl. Ref. #11)

$

$

Not available

20

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

21

Toro 79-4190

BRKT-HOOD MTG L.H R

$

$

Not available

Toro 79-4200

BRKT-HOOD MTG R.H R

Note: Not illustrated

$

$

Not available

22

Toro 79-2590

PUSH-NUT 5/16

$

$

Not available

23

Toro 111685

RETAINER

$

$

Not available

Toro 115204

HARNESS-HEADLIGHT

Note: Not illustrated

$

$

Not available

Toro 116591

Assy. Head Light (Incl. Ref. #2-5 & 23)

Note: Not illustrated

$

$

Not available
