72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) ENGINE TORO POWER PLUS Parts Diagram

Yard Tractor

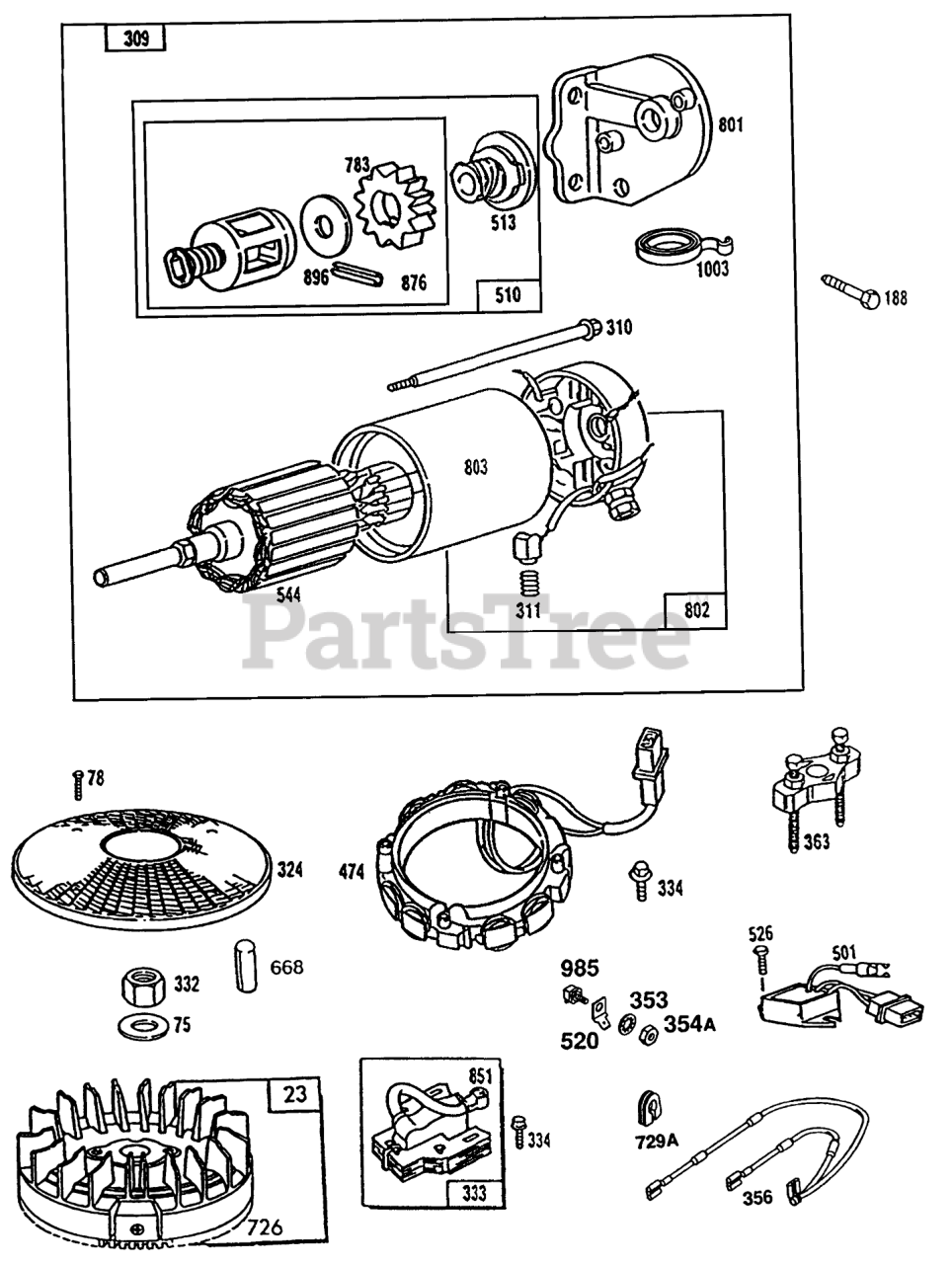

ENGINE TORO POWER PLUS Parts Diagram

  • Title

23

Toro 78-3600

Flywheel-Magneto

$

$

Not available

75

Toro 78-3810

Washer

$

$

Not available

78

Toro 78-3820

Screw

$

$

Not available

188

Toro 78-4110

Screw

$

$

Not available

265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

309

Toro 78-4340

Motor

$

$

Not available

310

Toro 78-4350

Bolt

$

$

Not available

311

Toro 78-4360

Brush Assembly

$

$

Not available

324

Toro 78-4370

Screen

$

$

Not available

332

Toro 78-4380

Nut

$

$

Not available

333

Toro 92-0544

Armature-Magneto

$

$

Not available

334

Toro 78-4400

Screw

$

$

Not available

353

Toro 92-0545

LOCKWASHER

$

$

Not available

354A

Toro 92-0546

Nut

$

$

Not available

356

Toro 92-0547

Wire Assembly

$

$

Not available

363

Toro 78-4470

Flywheel Puller

$

$

Not available

474

Toro 78-4510

Stator

$

$

Not available

501

Toro 78-4520

REGULATOR-ALTERNATOR

$

$

Not available

510

Toro 78-4530

Drive Assembly

$

$

Not available

513

Toro 78-4540

Clutch Assembly

$

$

Not available

520

Toro 92-0548

Terminal-Spade

$

$

Not available

526

Toro 78-4590

Screw

$

$

Not available

544

Toro 78-4620

BRIGGS-490309

$

$

Not available

668

Toro 78-4830

Spacer

$

$

Not available

726

Toro 92-0549

Gear-Flywheel Ring

$

$

Not available

729A

Toro 92-0550

GROMMET

$

$

Not available

783

Toro 78-4860

GEAR

$

$

Not available

801

Toro 92-0551

Cap Assembly Drive End

$

$

Not available

802

Toro 78-4890

BRIGGS-490310

$

$

Not available

803

Toro 78-4900

Housing Assembly

$

$

Not available

851

Toro 77-8430

TERMINAL - CABLE

$

$

Not available

876

Toro 78-5020

Gear Kit

$

$

Not available

896

Toro 78-5050

Pin-Roll

$

$

Not available

985

Toro 92-0552

Insulator

$

$

Currently unavailable

1003

Toro 78-5200

Brush Spring Set

$

$

Not available
