72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 409800000 - 412441622) Power Frame Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

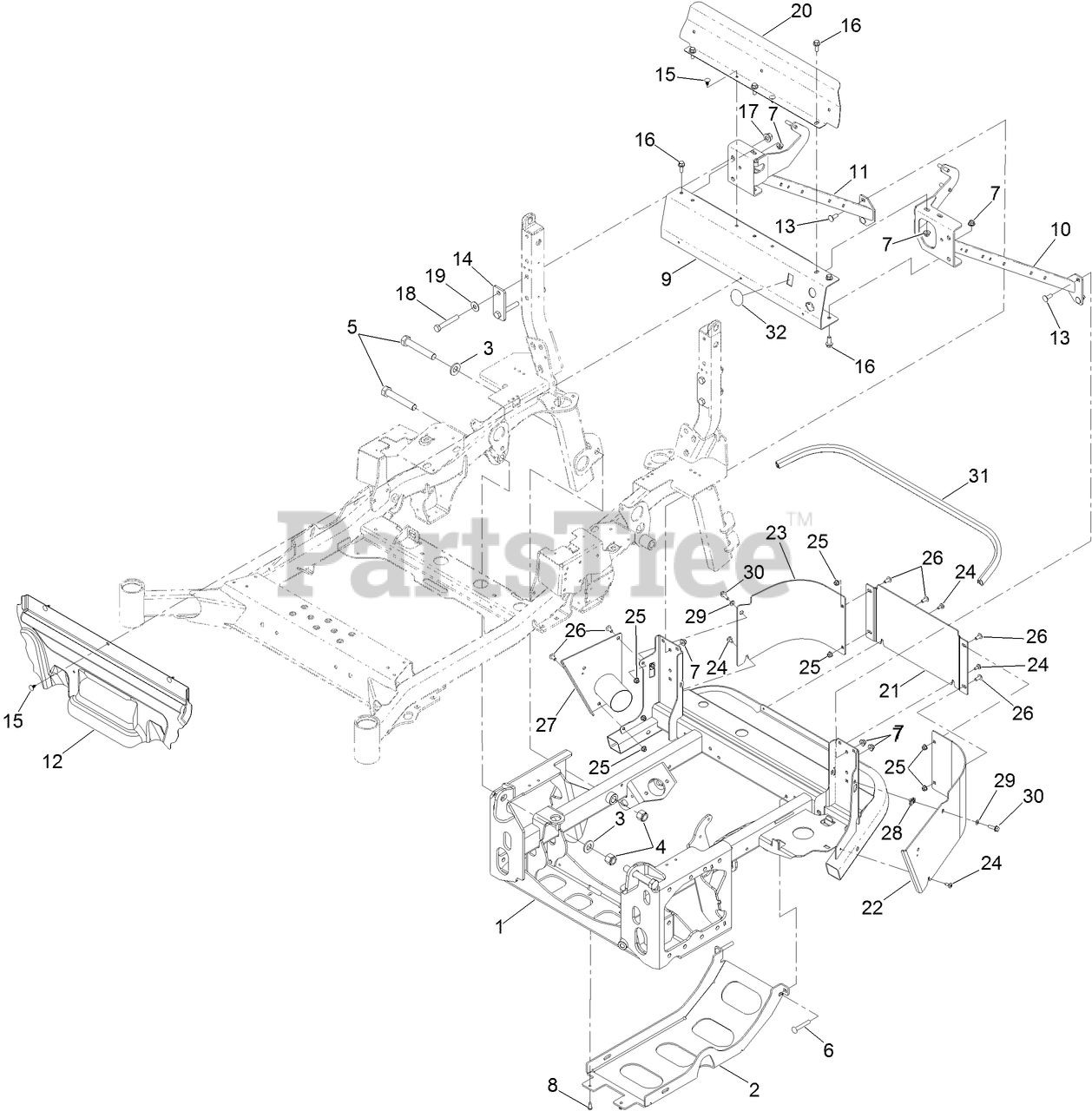

Power Frame Assembly Parts Diagram

  • Title
1

Toro 126-5929-03

FRAME-POWER

$1316.99

$

Usually ships in 3-6 days

0

2

Toro 126-5922-03

PLATE-SKID

$193.99

$

Usually ships in 3-6 days

0

3

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

4

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

5

Toro 328-8

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

6

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 613381

SCREW-BHTF

$5.49

$

In Stock, only 1 left!

0

9

Toro 126-8567-03

CHANNEL-CROSS

$82.99

$

Usually ships in 3-6 days

0

10

Toro 126-8563-03

BRACE-ROPS, LH

$147.99

$

Usually ships in 3-6 days

0

11

Toro 126-8565-03

BRACE-ROPS, RH

$

$

Not available

12

Toro 126-7458

PANEL-DEFLECTOR, HEAT

$193.99

$

Usually ships in 3-6 days

0

13

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

14

Toro 135-0412-03

PLATE-SPACER

$7.49

$

Usually ships in 3-6 days

0

15

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 6

0

16

Toro 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 112-7264

SCREW-HH

$8.99

$

In Stock, only 2 left!

0

19

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

20

Toro 126-6557-03

SHIELD-AIR

$39.99

$

Usually ships in 3-6 days

0

21

Toro 126-8954-03

PLATE-BUMPER, CENTER

$52.99

$

Usually ships in 3-6 days

0

22

Toro 126-8952-03

PLATE-BUMPER, LH

$78.99

$

Usually ships in 3-6 days

0

23

Toro 126-8953-03

PLATE-BUMPER, RH

$55.99

$

Usually ships in 3-6 days

0

24

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

26

Toro 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

27

Toro 135-0880

PLATE-EXHAUST

$52.99

$

Usually ships in 3-6 days

0

28

$3.49

$

Usually ships in 3-6 days

0

29

Toro 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

30

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

31

Toro 126-6845

SEAL-BULB

$28.99

$

Usually ships in 3-6 days

0

32

Toro 135-3728

DECAL-COVER

$3.49

$

Usually ships in 3-6 days

0
