72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406395521 - 407399999) Transmission Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

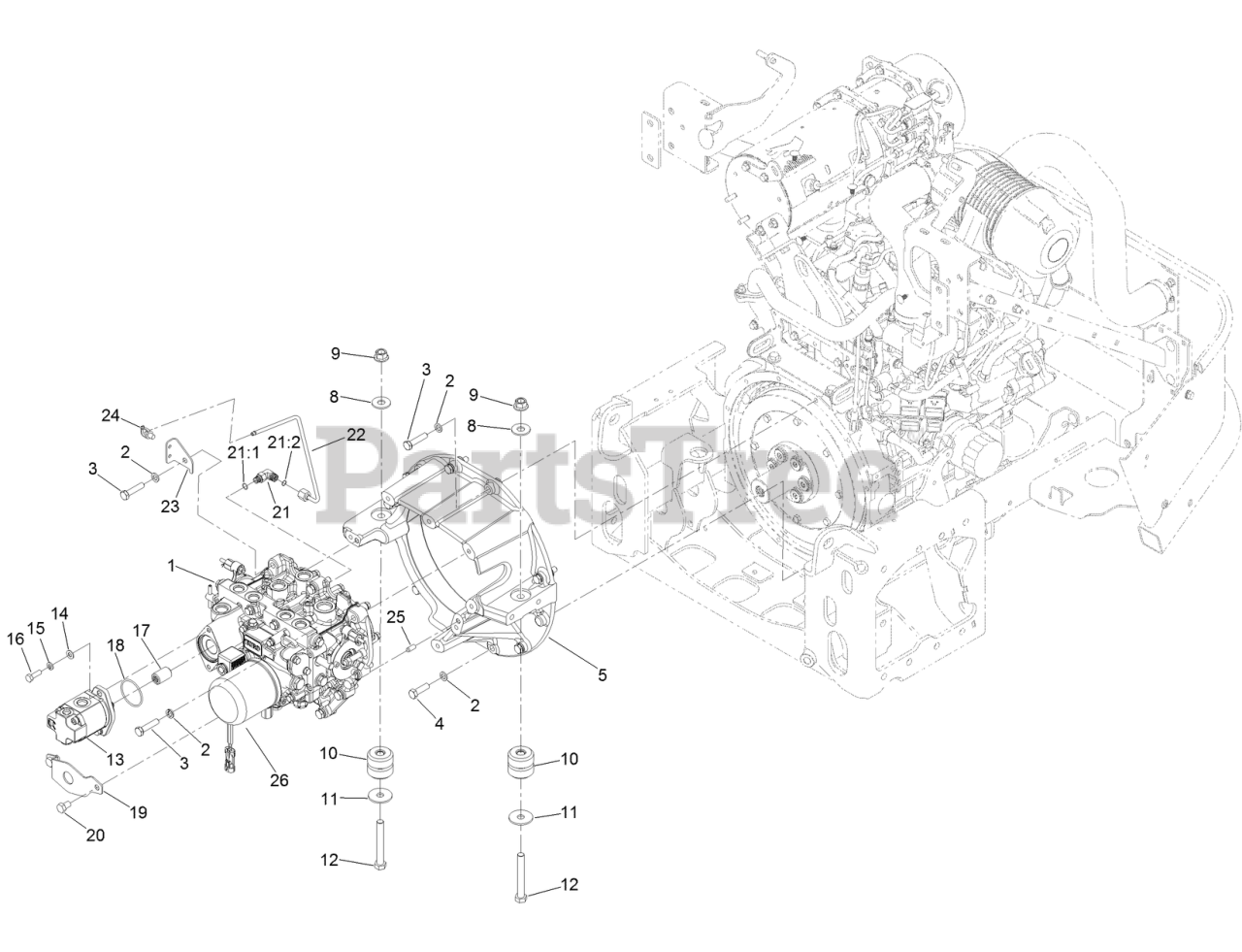

Transmission Assembly Parts Diagram

  • Title

1

Toro 131-5510

TRANSMISSON ASM

$7695.99

$

Usually ships in 3-6 days

0

2

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Toro 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

4

Toro 33115-035

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 125-2836

HOUSING-FLYWHEEL

$902.99

$

Usually ships in 3-6 days

0

8

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 126-6095

MOUNT-ISOLATOR

$18.99

$

Usually ships in 3-6 days

0

11

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

12

Toro 325-15

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 112-9542

HYD GEAR PUMP ASM

$1084.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

17

Toro 108-9920

COUPLER-SPLINE

$52.99

$

Usually ships in 3-6 days

0

18

Toro 108-9919

O-RING

$4.49

$

Usually ships in 3-6 days

0

19

Toro 114-4088

SHIELD-SEAL

$28.99

$

Usually ships in 3-6 days

0

20

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

21

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

21:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

22

Toro 126-8689

TUBE ASM

$37.99

$

Usually ships in 3-6 days

0

23

Toro 126-6806

SUPPORT-TUBE

$9.49

$

Usually ships in 3-6 days

0

24

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

25

Toro 87-1910

PIN-DOWEL

$10.99

$

In Stock, only 3 left!

0

26

Toro 135-3467

FILTER-OIL, HYD

$

$

Currently unavailable
