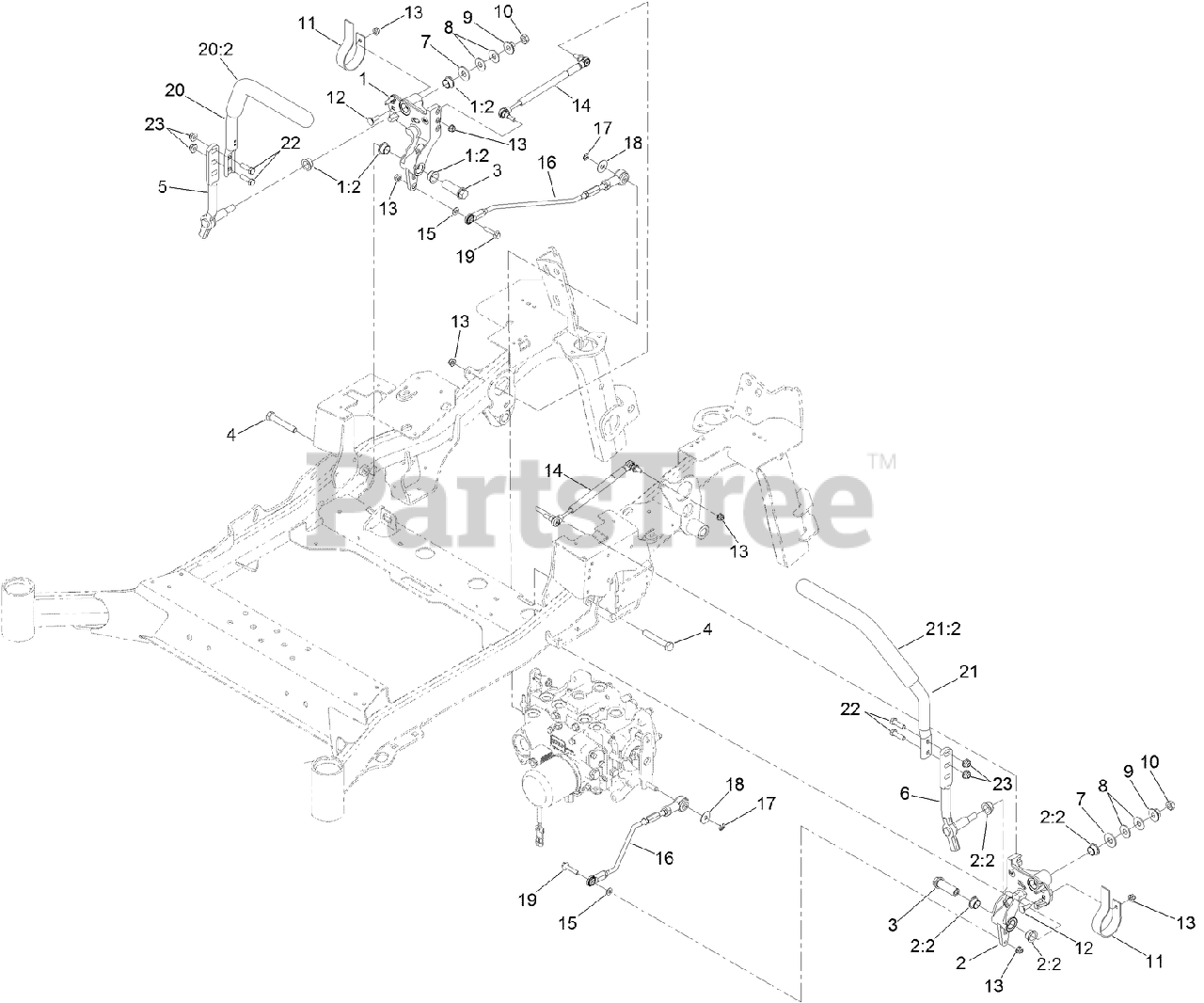

72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406395521 - 407399999) Motion Control Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Motion Control Assembly Parts Diagram

  • Title
1

Toro 116-0880

RH MOTION CONTROL AND BUSHING ASM

$58.99

$

In Stock, only 1 left!

0

1:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Toro 116-0881

LH MOTION CONTROL AND BUSHING ASM

$58.99

$

In Stock, only 1 left!

0

2:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Toro 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

4

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

5

Toro 116-0039

LEVER-CONTROL MOTION, RH

$52.99

$

In Stock, only 1 left!

0

6

Toro 116-0040

LEVER-CONTROL MOTION, LH

$52.99

$

In Stock, only 1 left!

0

7

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

9

Toro 32128-56

NUT-HF

$10.99

$

Usually ships in 3-6 days

0

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 126-6131

FRONT LINKAGE ROD ASM

$192.99

$

Usually ships in 3-6 days

0

17

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

18

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 11

0

19

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

20

Toro 126-7700

RH STEERING HANDLE ASM

$66.99

$

Usually ships in 3-6 days

0

20:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

21

Toro 126-7699

LH STEERING HANDLE ASM

$66.99

$

Usually ships in 3-6 days

0

21:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
