72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 406395520) Roll-Over Protection System Assembly No. 135-5786 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

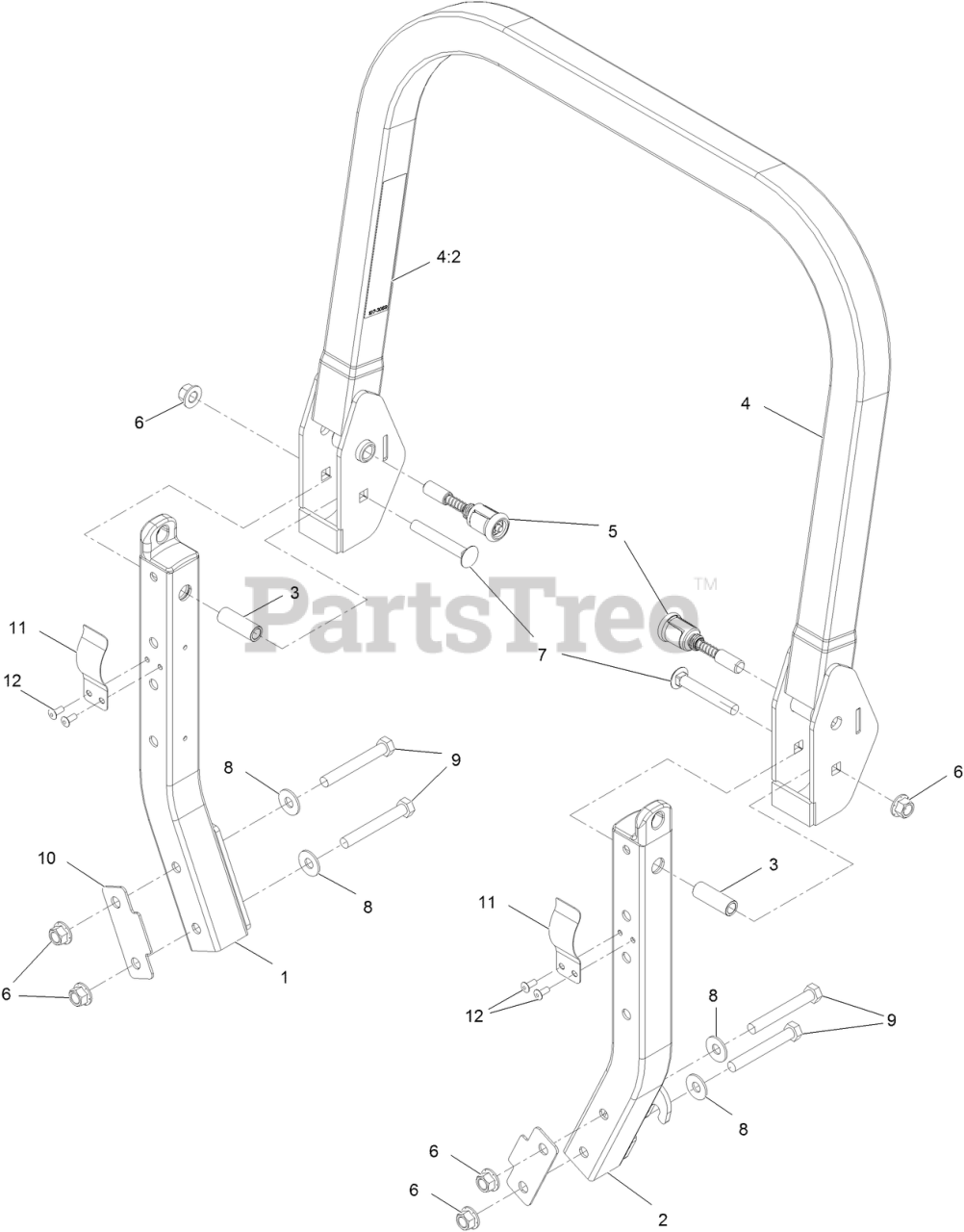

Roll-Over Protection System Assembly No. 135-5786 Parts Diagram

  • Title
1

LOWER-ROPS, RH

Note: Not serviced separately

$

$

Not available

2

LOWER-ROPS, LH

Note: Not serviced separately

$

$

Not available

3

Toro 109-6653

SPACER

$6.49

$

In Stock, only 2 left!

0

4

Toro 126-7085

ROPS UPPER ASM
(Superseded to 142-2385)

$318.99

$

Usually ships in 3-6 days

0

4:2

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

5

Toro 116-0104

PIN-SPRING

$47.99

$

In Stock, only 1 left!

0

6

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Toro 3233-10

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

8

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

9

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

10

Toro 116-0960

SPACER

$7.99

$

Usually ships in 3-6 days

0

11

Toro 110-5696

SPRING-LEAF

$45.99

$

Usually ships in 3-6 days

0

12

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0
