72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 406395520) Electrical Assembly Parts Diagram

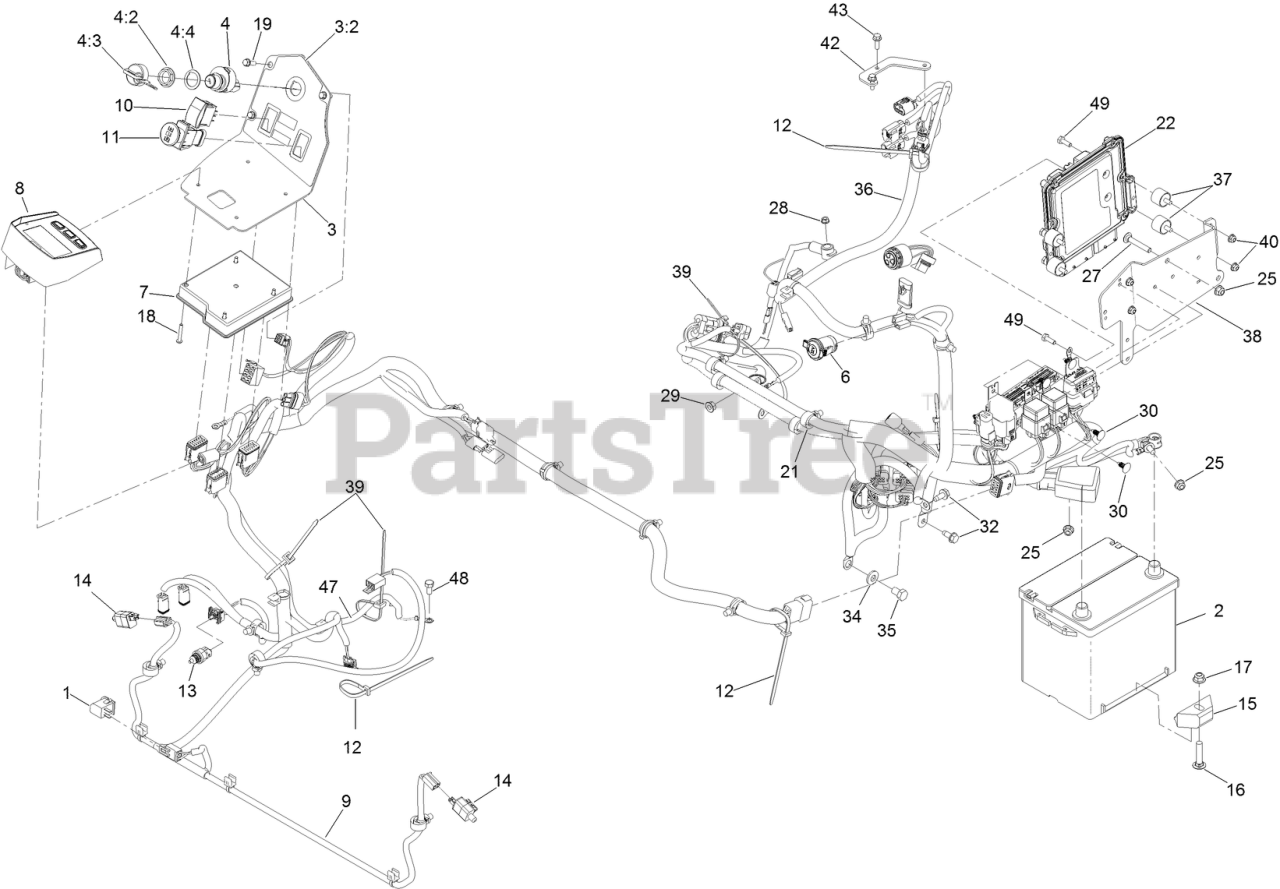

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

2

Toro 106-5187

BATTERY-DRY

$215.99

$

Usually ships in 3-6 days

0

3

Toro 135-6122

CONSOLE ASM

$78.99

$

Usually ships in 3-6 days

0

3:2

Toro 126-9278

DECAL-CONTROL PANEL

$19.99

$

Usually ships in 3-6 days

0

4

Toro 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

4:2

Toro 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

4:3

Toro 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

4:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Toro 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

7

Toro 135-3427

MODULE-MCU

$386.99

$

Usually ships in 3-6 days

0

8

Toro 126-9976

MODULE-HORIZON

$581.99

$

Usually ships in 3-6 days

0

9

Toro 126-7262

HARNESS-WIRE

$644.99

$

Usually ships in 3-6 days

0

10

Toro 100-1535

SWITCH

$90.99

$

In Stock, only 3 left!

0

11

Toro 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

12

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Toro 126-7698

SENSOR-TEMPERATURE

$94.99

$

In Stock, only 2 left!

0

14

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

15

Toro 138-6335

RETAINER-BATTERY

$11.99

$

Usually ships in 3-6 days

0

16

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

21

Toro 126-7406

CABLE-BATTERY

$171.99

$

Usually ships in 3-6 days

0

22

Toro 127-3085

E C U ASM
(Superseded to 121-5592)

$3620.99

$

Usually ships in 3-6 days

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

28

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

29

Toro 127-2371

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Toro 126-7352

HARNESS-WIRE
(Superseded to 142-7958)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$899.99

$

Usually ships in 3-6 days

0

37

Toro 125-2674

MOUNT-CYLINDRICAL

$6.99

$

Usually ships in 3-6 days

0

38

Toro 126-8706-03

MOUNT-CONTROL UNIT, ENGINE

$45.99

$

Usually ships in 3-6 days

0

39

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

40

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

42

Toro 135-0071

BRACKET-WIRING, ENGINE

$11.99

$

Usually ships in 3-6 days

0

43

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

47

Toro 135-3998

HARNESS-WIRE, JUMPER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$30.99

$

Usually ships in 3-6 days

0

48

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

49

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
