72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) FUEL SYSTEM ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

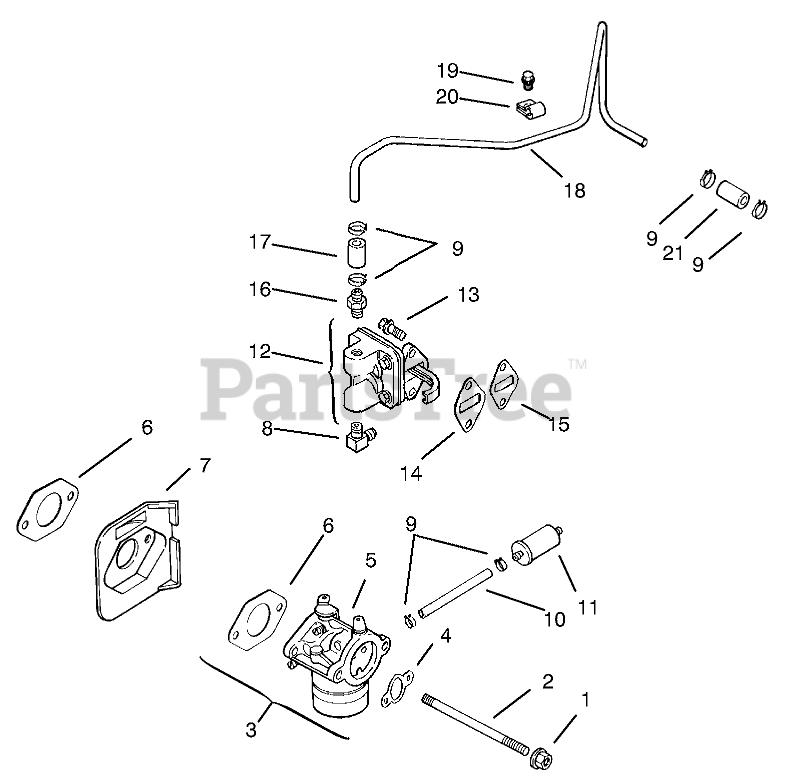

FUEL SYSTEM ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 116-S

Kit-Carburatorw/Gasket Incl 4-6

$

$

Not available

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Included in a service kit or in an assembly

$2.99

$

In Stock, Qty 5

0

5

Toro 12 053 116-S

Carurator ASM (Not Available Separately)(Service With Kits

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 7

0

6

Kohler 12 041 01-S

Gasket-Carburetor

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, Qty 14

0

7

Kohler 12 265 06-S

Deflector-Heat

$

$

Not available

8

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 1 left!

0

9

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

10

Kohler 25 353 02-S

Line-Fuel (3in)

$

$

Not available

11

Kohler 25 050 02-S

Filter-Fuel
(Superseded to 25 050 07-S)

$10.99

$

In Stock, only 3 left!

0

12

Kohler 12 559 01-S

Kit-Pump (Incl 13-15)
(Superseded to 12 559 02-S)

$48.99

$

In Stock, only 2 left!

0

13

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

14

Kohler 25 041 09-S

Gasket-Pump, Fuel
(Superseded to 25 041 10-S)

Note: Included in a service kit or in an assembly

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 12 112 05-S

Spacer-Pump, Fuel

Note: Included in a service kit or in an assembly

$7.49

$

In Stock, only 2 left!

0

16

Kohler 25 326 03-S

Connector-Hose, Straight

$3.99

$

In Stock, only 1 left!

0

17

Kohler 12 353 01-S

Line-Fuel (1-1/4in)

$

$

Not available

18

Kohler 12 123 19-S

Line-Fuel. Metal

$16.99

$

In Stock, only 2 left!

0

19

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0

20

Kohler 12 154 01-S

CLAMP-INSULATED

$2.49

$

In Stock, only 1 left!

0

21

Kohler 41 353 18-S

Line-Fuel (2-1/2in)

$3.49

$

Usually ships in 2-5 days

0
