72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

Lawn & Garden Tractor

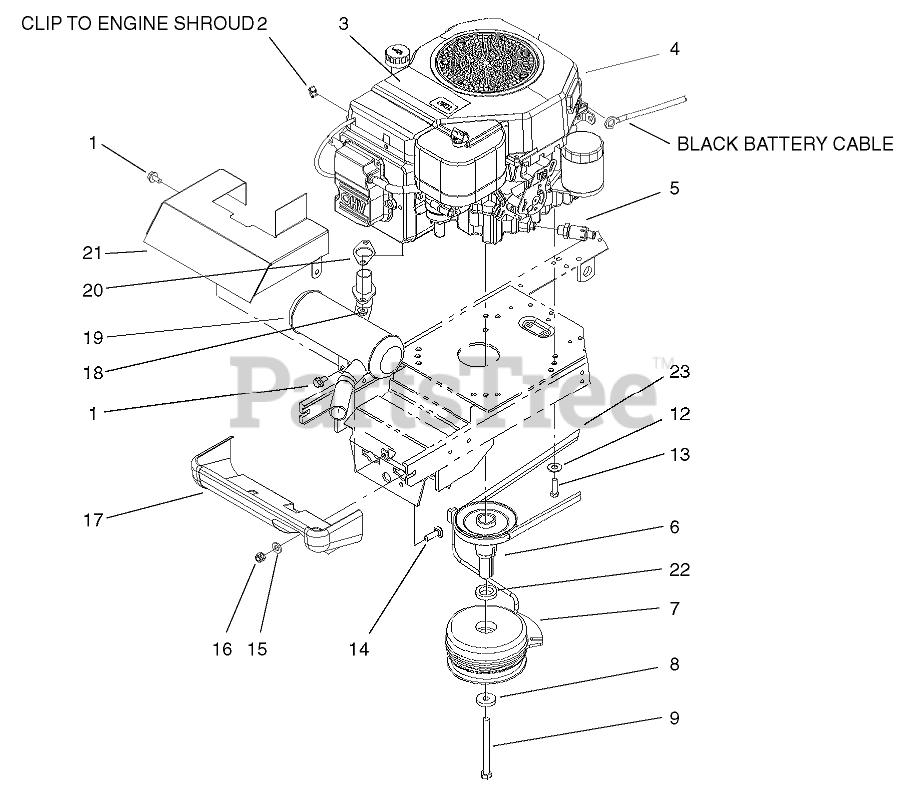

ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 104-4693

Decal-Power

$

$

Not available

4

Toro 104-5070

Engine-Kohler, 16 HP Intl (only on: 72072)

$

$

Currently unavailable

4

Toro 104-2473

Engine-Kohler 16 (only on: 72052)

$4285.99

$

Usually ships in 3-6 days

0

5

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

6

Toro 92-6888

PULLEY-ENGINE

$199.99

$

Usually ships in 3-6 days

0

7

Toro 100-6060

Clutch-Elec PTO (only on: 72072)

$

$

Not available

7

Toro 100-6059

Clutch-PTO (only on: 72052)
(Superseded to 103-9950)

$491.99

$

Usually ships in 3-6 days

0

8

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

9

Toro 104-4675

Bolt-Clutch

$

$

Not available

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

17

Toro 100-3541-01

MUFFLER SHIELD ASM

$

$

Not available

18

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

19

Toro 104-5085

Muffler-16 HP

$

$

Not available

20

Toro 92-6716

Gasket-Exhaust

$

$

Not available

21

Toro 104-5086-03

BAFFLE-MUFFLER SINGLE

$

$

Not available

22

Toro 100-1340

SPACER-CLUTCH

$23.99

$

In Stock, only 1 left!

0

23

Toro 100-3469

V-BELT

$130.99

$

In Stock, only 4 left!

0
