72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) ENGINE CONTROLS ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

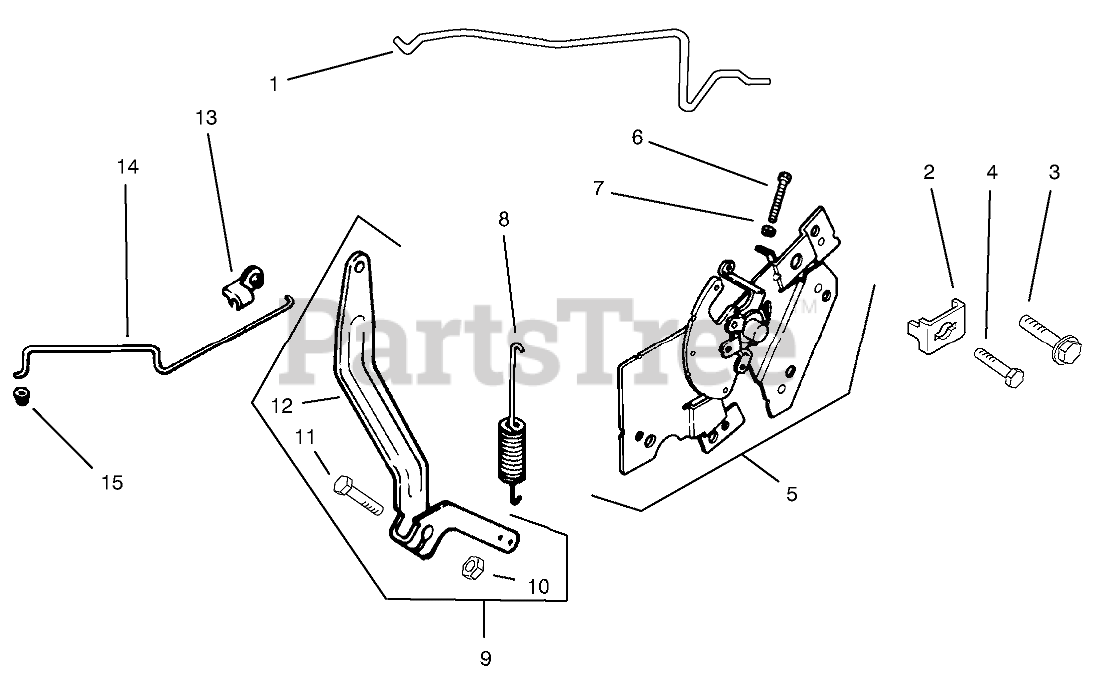

ENGINE CONTROLS ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Kohler 12 079 11-S

Linkage-Choke

$

$

Not available

2

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 536 02-S

Control- Speed ASM (Incl 6,7)

$60.99

$

Usually ships in 2-5 days

0

6

Kohler M-401030-S

Screw (M4x0.7x30)

Note: Included in a service kit or in an assembly

$3.49

$

In Stock, Qty 9

0

7

Kohler M-446030-S

NUT (M4X0.7)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 4 left!

0

8

Kohler 52 089 07-S

Spring-Governor

$

$

Not available

9

Kohler 12 755 83-S

Kit, Governor Lever (Incl 10-12)

$6.49

$

In Stock, only 1 left!

0

10

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 2 left!

0

11

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Included in a service kit or in an assembly

$4.99

$

Usually ships in 2-5 days

0

12

Kohler 12 090 28-S

Lever-Governor

Note: Included in a service kit or in an assembly

$5.99

$

In Stock, only 1 left!

0

13

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

$5.99

$

In Stock, Qty 13

0

14

Kohler 12 079 10-S

Linkage-Throttle

$4.49

$

In Stock, only 1 left!

0

15

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

$5.99

$

In Stock, Qty 19

0
