72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) CYLINDER HEAD / VALVE / BREATHER ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

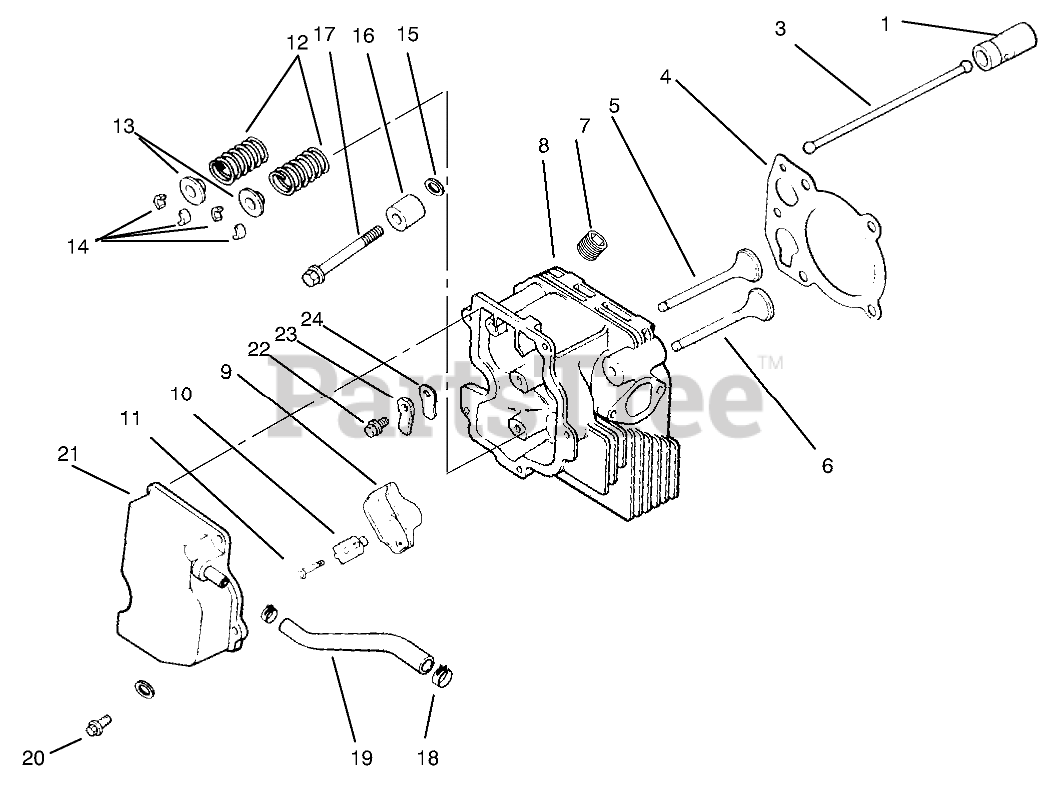

CYLINDER HEAD / VALVE / BREATHER ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Toro 12 351 01-S

Lifter-Valve

$

$

Currently unavailable

3

Kohler 12 411 03-S

Rod-Push
(Superseded to 12 411 05-S)

$

$

Not available

4

Kohler 12 041 08-S

Gasket-Head, Cylinder

$20.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 01-S

Valve-Intake (STD)

$32.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 02-S

Valve-Intake (.25)

$30.99

$

In Stock, only 1 left!

0

6

Kohler 12 016 01-S

Valve-Exhaust (STD)

$54.99

$

Usually ships in 2-5 days

0

6

Kohler 12 016 02-S

Valve-Exhaust (.25)

$

$

Not available

7

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

$3.49

$

In Stock, only 2 left!

0

8

Kohler 12 318 36-S

Cylinder Head
(Superseded to 12 755 97-S)

$

$

Not available

9

Kohler 25 186 01-S

ARM-ROCKER

$12.99

$

In Stock, only 2 left!

0

10

Kohler 12 599 03-S

Pivot-Arm, Rocker

$2.49

$

In Stock, only 1 left!

0

11

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

$2.49

$

In Stock, Qty 18

0

12

Kohler 12 089 34-S

Spring-Valve

$10.99

$

In Stock, only 2 left!

0

13

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

14

Kohler 12 755 03-S

RETAINER KIT

$5.99

$

In Stock, Qty 8

0

15

Kohler 12 468 05-S

Washer-Flat (1/2)

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 12 112 13-S

Spacer-Head Bolt (Exhaust Port)

$10.99

$

Usually ships in 2-5 days

0

17

Kohler 12 086 15-S

Screw, M10x1.5x81
(Superseded to 20 086 02-S)

$3.99

$

In Stock, Qty 12

0

18

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

19

Kohler 12 326 03-S

Hose-Breather

$10.99

$

In Stock, Qty 9

0

20

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

21

Kohler 12 096 07-S

Cover-Valve w/Nipple
(Superseded to 12 755 102-S)

$86.99

$

Usually ships in 2-5 days

0

22

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0

23

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

$4.99

$

In Stock, only 4 left!

0

24

Kohler 24 402 02-S

Reed-Breather

$

$

Not available

Kohler 12 755 94-S

Kit-Cylinder Head (Incl. 3-17,
(Superseded to 12 755 97-S)

Note: Not illustrated

$

$

Not available

Kohler 12 041 01-S

Gasket-Carburetor

Note: Not illustrated

$2.49

$

In Stock, Qty 14

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Not illustrated

$2.99

$

In Stock, Qty 5

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Not illustrated

$7.49

$

In Stock, Qty 9

0
