72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) BRAKE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

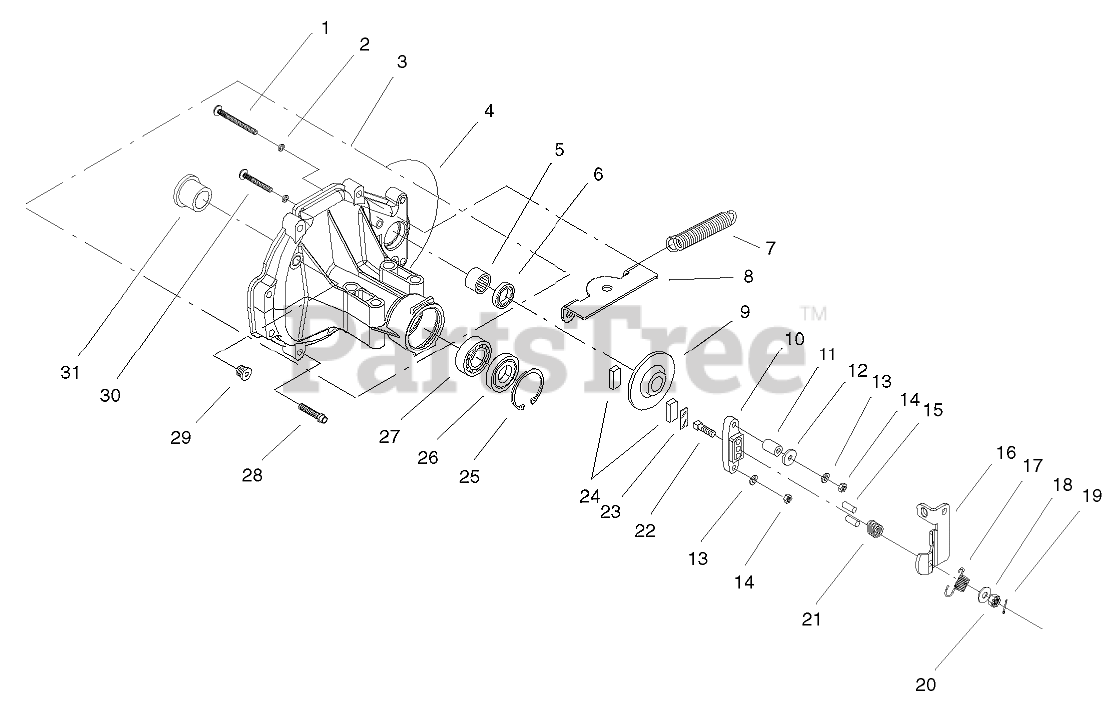

BRAKE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 104-2191

O-RING

$

$

Not available

3

Toro 104-2102

RH HOUSING ASM

$1256.99

$

Usually ships in 3-6 days

0

4

Toro 104-2147

SEALANT

$110.99

$

Usually ships in 3-6 days

0

5

Toro 104-2149

BEARING-NEEDLE

$

$

Not available

6

Toro 104-2152

SEAL-LIP

$

$

Not available

7

Toro 104-2118

SPRING-RETURN

$32.99

$

Usually ships in 3-6 days

0

8

Toro 100-1349

BRACKET-CRANK, BELL

$

$

Not available

9

Toro 104-2153

DISK-BRAKE

$86.99

$

Usually ships in 3-6 days

0

10

Toro 104-2173

YOKE-BRAKE

$

$

Not available

11

Toro 104-2180

SPACER

$8.99

$

Usually ships in 3-6 days

0

12

Toro 104-2183

WASHER

$

$

Not available

13

Toro 104-2177

WASHER-LOCK

$

$

Not available

14

$

$

Not available

15

Toro 104-2176

PIN-BRAKE

$10.99

$

Usually ships in 3-6 days

0

16

Toro 104-0841

ARM-BRAKE

$

$

Not available

17

Toro 104-2184

SPRING-ARM, BRAKE (BIAS)

$17.99

$

Usually ships in 3-6 days

0

18

Toro 104-2146

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

19

Toro 104-2179

PIN-COTTER
(Superseded to 327-27)

$

$

Not available

20

Toro 93-3807

NUT-CASTLE

$23.99

$

Usually ships in 3-6 days

0

21

Toro 104-2188

SPRING-BRAKE, ANTI DRAG

$7.99

$

Usually ships in 3-6 days

0

22

Toro 104-2174

BOLT-SQH

$

$

Not available

23

Toro 104-2181

PUCK-PLATE

$9.49

$

Usually ships in 3-6 days

0

24

Toro 104-2171

PUCK-BRAKE

$20.99

$

Usually ships in 3-6 days

0

25

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

26

$49.99

$

In Stock, only 1 left!

0

27

Toro 104-2143

BEARING-BALL

$41.99

$

Usually ships in 3-6 days

0

28

Toro 104-2148

SCREW-TTH

$

$

Not available

29

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

30

$

$

Not available

31

Toro 104-2139

BEARING-FLANGE

$

$

Not available
