72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) BLOWER HOUSING & BAFFLES ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

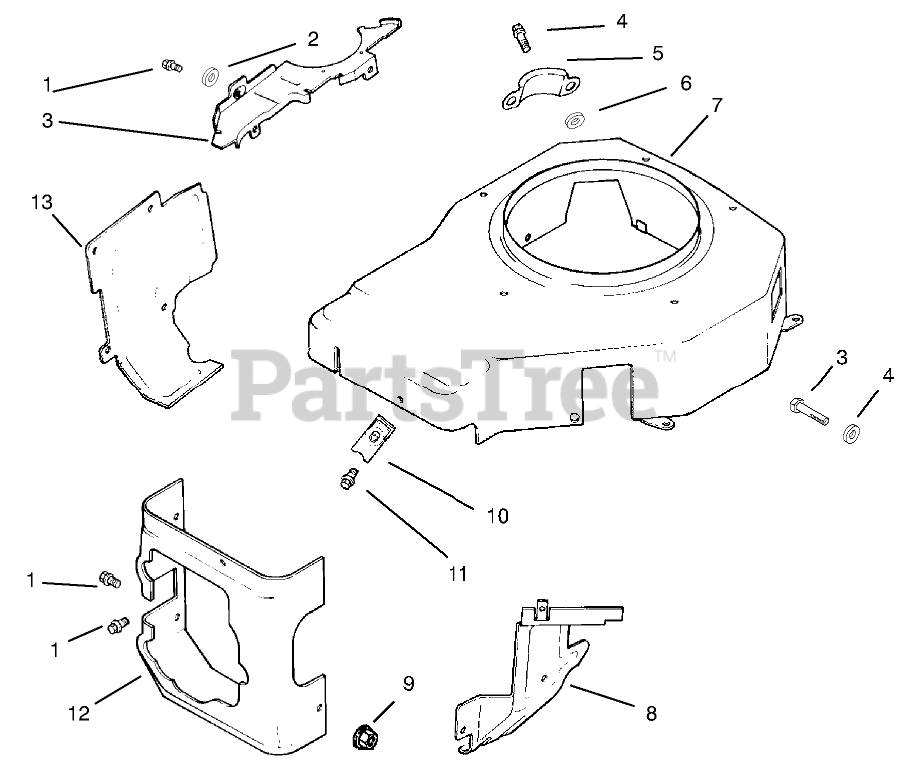

BLOWER HOUSING & BAFFLES ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0

2

Kohler 24 468 10-S

Washer-plain (1/4)

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 146 07-S

Plate-Housing, Blower

$9.49

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler 24 096 05-S

Cover-Pinion

$12.99

$

Usually ships in 2-5 days

0

6

Kohler 220534-S

Washer Plain 5/16

$5.49

$

In Stock, Qty 5

0

7

Kohler 12 027 55-S

Housing-Blower
(Superseded to 12 027 96-S)

$

$

Not available

8

Kohler 12 063 18-S

Baffle (Intake Side)

$

$

Not available

9

Kohler M-541050-S

Nut-HF (M5x0.8)

$2.99

$

In Stock, Qty 10

0

10

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

11

Toro 21 086 37-S

Screw

$

$

Currently unavailable

12

Kohler 12 063 20-S

Baffle (Cylinder Head)

$

$

Not available

13

Kohler 12 063 19-S

Baffle-Cylinder

$

$

Not available
