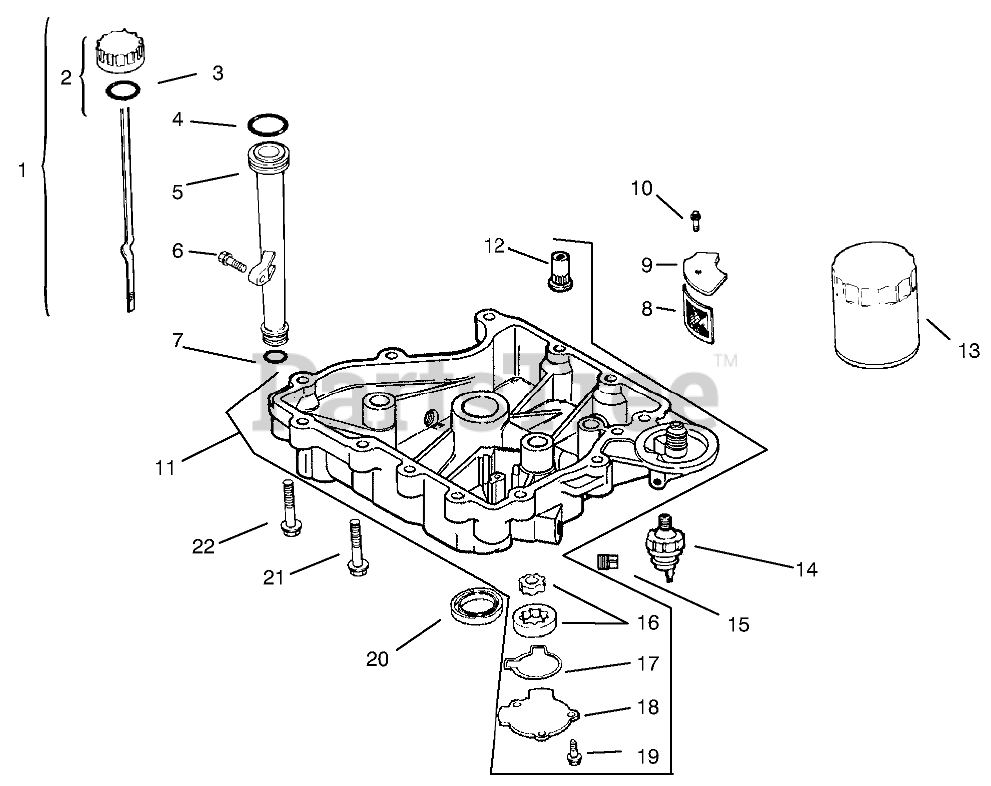

72072 (266-HE) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) OIL PAN / LUBRICATION ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

OIL PAN / LUBRICATION ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Kohler 12 038 01-S

Dipstick (Incl 2-3)

$24.99

$

In Stock, only 2 left!

0

2

Kohler 25 755 13-S

Kit-Oil Cap (Incl 3)

Note: Included in a service kit or in an assembly

$13.99

$

In Stock, only 1 left!

0

3

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

4

Kohler 12 153 02-S

O-RING

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 123 04-S

OIL FILL TUBE KIT
(Superseded to 25 123 07-S)

$16.99

$

In Stock, only 1 left!

0

6

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 153 01-S

O-RING

$4.99

$

In Stock, Qty 16

0

8

Toro 12 162 07-S

Screen-Oil Pickup

$

$

Currently unavailable

9

Kohler 12 096 03-S

Cover-Screen, Oil Pickup

$13.99

$

In Stock, only 1 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 12 199 50-S

Pan-Oil (incl. 12, 16-19)

$581.99

$

Usually ships in 2-5 days

0

12

Kohler 25 462 09-S

Valve-Relief, Oil Pressure

Note: Included in a service kit or in an assembly

$13.99

$

In Stock, only 1 left!

0

13

Kohler 12 050 01-S

FILTER-OIL

$13.99

$

In Stock, Qty 20+

0

14

Kohler 25 099 24-S

Switch-Pressure
(Superseded to 25 099 27-S)

$15.99

$

In Stock, only 4 left!

0

15

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

$2.49

$

In Stock, only 3 left!

0

16

Kohler 12 393 01-S

Oil Pump ASM

Note: Included in a service kit or in an assembly

$

$

Not available

17

Toro 12 156 06-S

O Ring-Oil Pump Cover

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

18

Kohler 12 096 34-S

Cover-Pump, Oil

Note: Included in a service kit or in an assembly

$14.99

$

In Stock, only 1 left!

0

19

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Included in a service kit or in an assembly

$3.99

$

Usually ships in 2-5 days

0

20

Kohler 12 032 03-S

Seal-Oil

$9.99

$

Usually ships in 2-5 days

0

21

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 7

0

22

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$2.49

$

In Stock, Qty 7

0

Kohler 52 518 21-S

Lead-Oil Switch

Note: Not illustrated

$21.99

$

Usually ships in 2-5 days

0
