72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) HYDRO BRAKE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

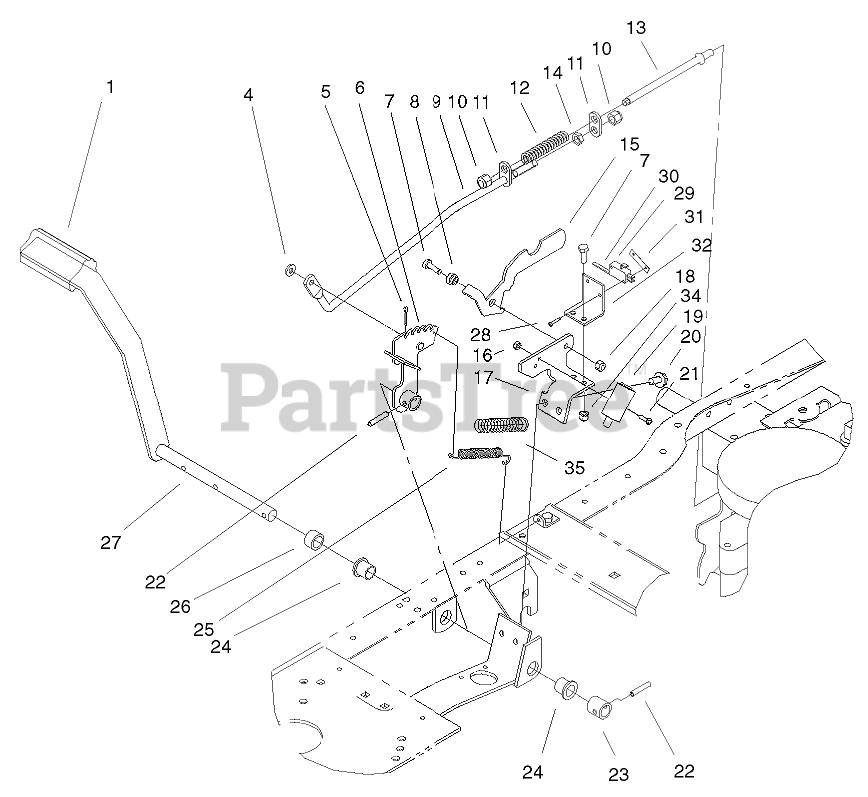

HYDRO BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 100-3456

Brake ASM, Welded

$

$

Not available

7

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-3260

SPACER-SHOULDER-.200

$42.99

$

Usually ships in 3-6 days

0

9

Toro 100-3457

ROD-BRAKE

$

$

Not available

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 100-8710

GUIDE, BRAKE ROD

$

$

Not available

12

Toro 38-4520

SPRING

$18.99

$

In Stock, only 2 left!

0

13

Toro 100-8709

ROD, BRAKE ADJUSTMENT

$

$

Not available

14

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

15

Toro 100-3453-03

CATCH-PARKING BRAKE

$

$

Not available

16

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

17

Toro 100-3454-03

SUPPORT-PARKING BRAKE

$

$

Not available

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

19

Toro 86-4690

SWITCH-INTERLOCK
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

20

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

21

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

23

$

$

Not available

24

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

25

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

26

Toro 92-6982

SPACER-BRAKE

$

$

Not available

27

Toro 100-3476-03

PEDAL-BRAKE

$

$

Not available

28

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 88-9930

SWITCH-MICRO

$41.99

$

In Stock, only 1 left!

0

30

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

31

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

32

Toro 100-8724-03

BRACKET-SWITCH

$34.99

$

Usually ships in 3-6 days

0

34

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

35

Toro 94-1743

TUBING - CONDUIT

$

$

Not available
