72065 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 408864559) Camshaft and Driving Gear Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

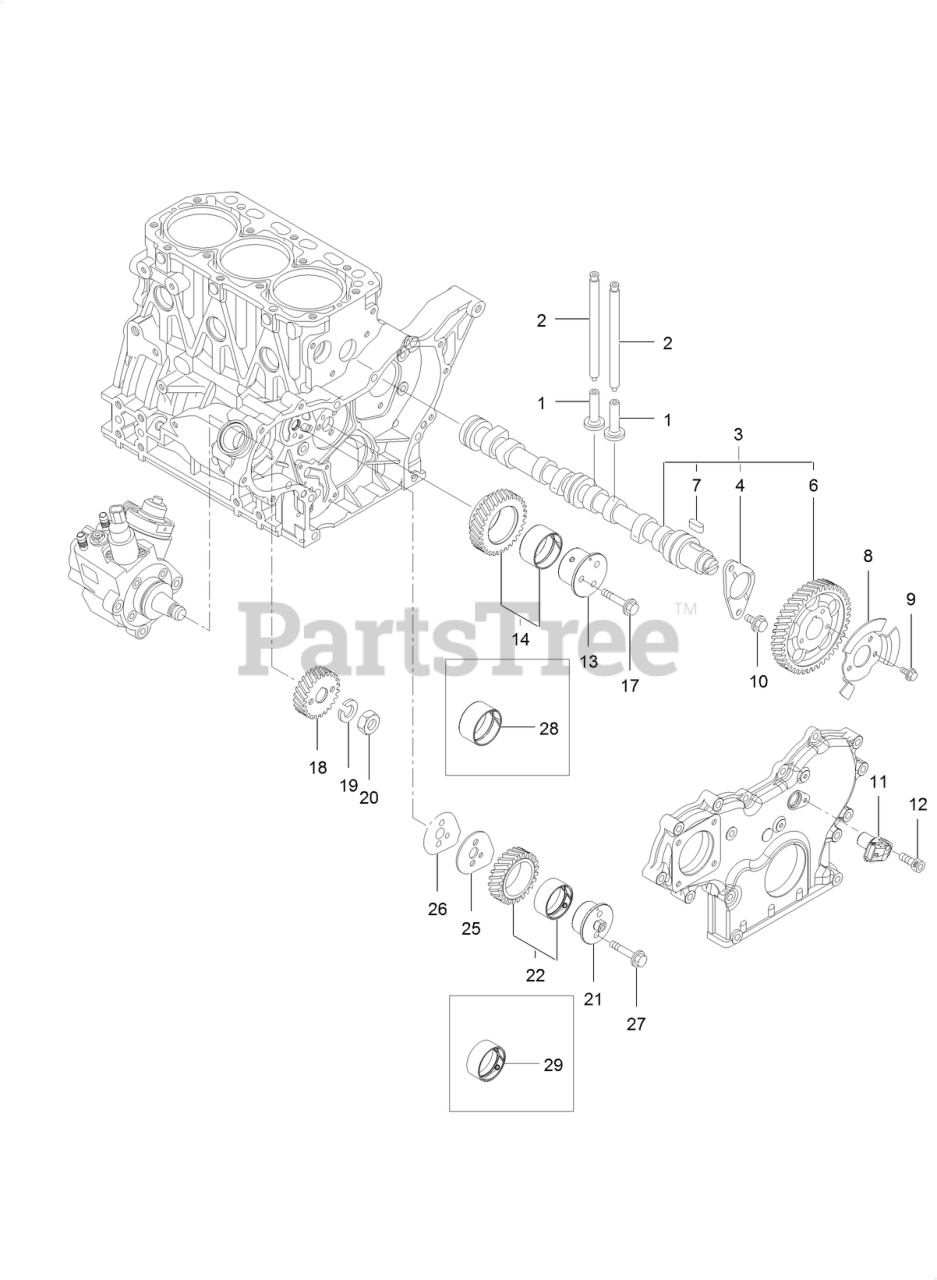

Camshaft and Driving Gear Assembly Parts Diagram

  • Title

1

Toro 125-7016

TAPPET

$17.99

$

Usually ships in 3-6 days

0

2

Toro 125-7017

ROD-PUSH

$10.99

$

Usually ships in 3-6 days

0

3

Toro 127-3797

CAMSHAFT ASM

$337.99

$

Usually ships in 3-6 days

0

4

Toro 125-7008

METAL-THRUST

$27.99

$

Usually ships in 3-6 days

0

6

Toro 125-7185

KEY

$2.49

$

Usually ships in 3-6 days

0

7

Toro 127-3052

GEAR-CAMSHAFT

$250.99

$

Usually ships in 0 days

0

8

Toro 127-3053

PULSER-CAMSHAFT

$20.99

$

Usually ships in 3-6 days

0

9

Toro 125-7205

BOLT

$3.49

$

Usually ships in 3-6 days

0

10

Toro 125-7213

BOLT

$3.49

$

Usually ships in 3-6 days

0

11

Toro 127-3054

SENSOR-REV, GEAR

$186.99

$

Usually ships in 3-6 days

0

12

Toro 127-3184

BOLT

$5.49

$

Usually ships in 3-6 days

0

13

Toro 127-3063

SHAFT-IDLE, GEAR A

$

$

Currently unavailable

14

Toro 127-3066

IDLE GEAR A ASM

$144.99

$

Usually ships in 3-6 days

0

17

Toro 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0

18

Toro 127-3070

GEAR-PUMP, SUPPLY

$129.99

$

Usually ships in 3-6 days

0

19

Toro 127-3167

WASHER-SPRING

$2.49

$

Usually ships in 0 days

0

20

Toro 127-3185

NUT-LOCK

$5.49

$

Usually ships in 0 days

0

21

Toro 127-3064

SHAFT-IDLE, GEAR B

$

$

Currently unavailable

22

Toro 127-3067

IDLE GEAR B ASM

$118.99

$

Usually ships in 3-6 days

0

25

Toro 127-3068

PLATE-IDLE, SHAFT

$

$

Currently unavailable

26

Toro 127-3069

GASKET-IDLE, SHAFT B

$4.49

$

Usually ships in 3-6 days

0

27

Toro 125-7218

BOLT

$4.49

$

Usually ships in 3-6 days

0

28

Toro 125-6927

BUSHING

$89.99

$

Usually ships in 3-6 days

0

29

Toro 127-3065

BUSHING

$85.99

$

Usually ships in 3-6 days

0
