72064 (265-H) - Toro Lawn & Garden Tractor (SN: 089000001 - 089000599) (1998) FUEL SYSTEM Parts Diagram

Lawn & Garden Tractor

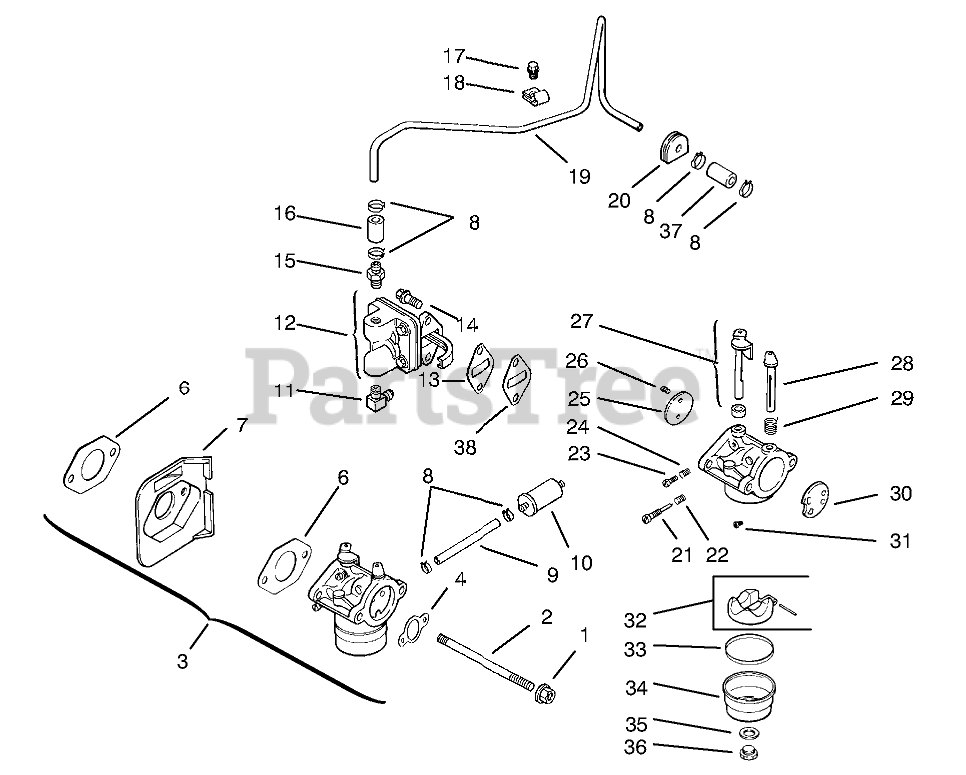

FUEL SYSTEM Parts Diagram

  • Title

1

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 9

0

2

Kohler M-0629122

Stud
(Superseded to M-629122)

$5.99

$

Usually ships in 2-5 days

0

3

1285357

Kit-Carburator w/Gasket Incl 4-6

$

$

Not available

4

1204102

Gasket-Air Cleaner

Note: Included in a service kit or in an assembly

$

$

Not available

5

1205357

Carurator ASM Incl 21-36

Note: Included in a service kit or in an assembly

$

$

Not available

6

1204101

Gasket-Carburetor

Note: Included in a service kit or in an assembly

$

$

Not available

7

1226504

Deflector-Heat

$

$

Not available

8

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

9

Toro 1235310

Line-Fuel

$

$

Currently unavailable

10

2505002

Filter-Fuel

$

$

Not available

11

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

12

1255901

Kit-Pump INC 13-14

$

$

Not available

13

2504109

Gasket-Fuel Pump

Note: Included in a service kit or in an assembly

$

$

Not available

14

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

15

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

16

1235301

Line-Fuel

$

$

Not available

17

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

18

1215401

Clip, tube

$

$

Not available

19

1212319

Line-Fuel

$

$

Not available

20

1231301

Grommet

$

$

Not available

21

1236805

Needle-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

22

1208909

Spring-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

23

1208604

Screw-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

24

1208909

Spring-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

25

1214603

Plate-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

26

2508627

Screw

Note: Included in a service kit or in an assembly

$

$

Not available

27

1214409

Shaft-w/Lever & Seal

Note: Included in a service kit or in an assembly

$

$

Not available

28

1214408

Shaft-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

29

1208910

Spring-Choke Return

Note: Included in a service kit or in an assembly

$

$

Not available

30

1214602

Plate-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

31

1233703

Jet-Main

Note: Included in a service kit or in an assembly

$

$

Not available

32

1275702

Kit-Float

Note: Included in a service kit or in an assembly

$

$

Not available

33

1204105

Gasket-Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

34

1210401

Bowl-Fuel

Note: Included in a service kit or in an assembly

$

$

Not available

35

1204106

Gasket-Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

36

1208605

Screw-Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

37

2535302

Line-Fuel 3"

$

$

Not available

38

1211205

Spacer

$

$

Not available

1204101

Gasket-Carburetor

Note: Not illustrated

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
