72064 (265-H) - Toro Lawn & Garden Tractor (SN: 089000001 - 089000599) (1998) BATTERY Parts Diagram

Lawn & Garden Tractor

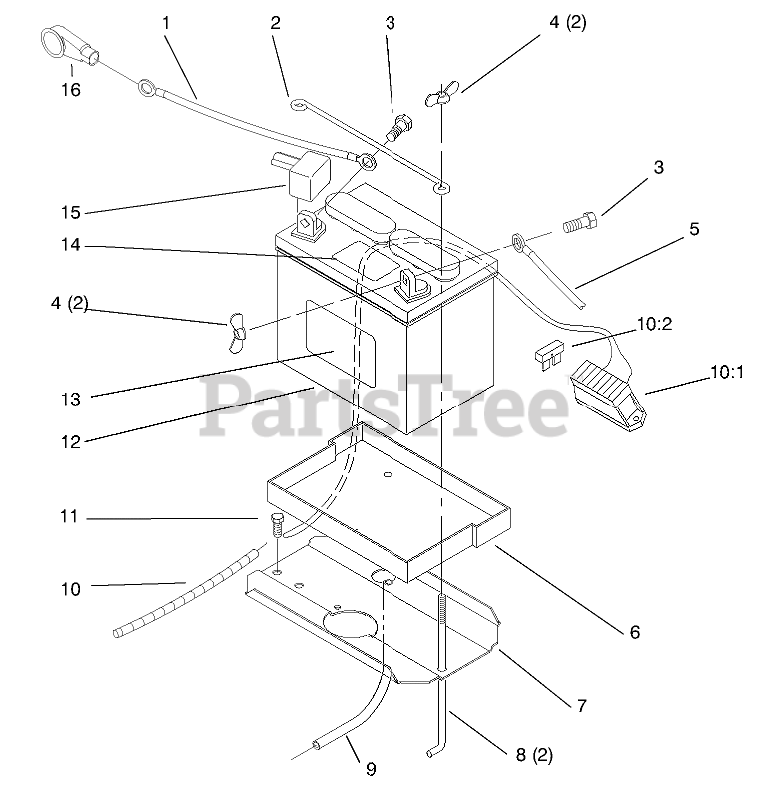

BATTERY Parts Diagram

  • Title

1

Toro 92-6990

WIRE -10" RED

$37.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$29.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

13

Toro 93-6668

Decal Instrt (Only On: 72064

$20.99

$

Usually ships in 3-6 days

0

5

Toro 111078

WIRE -BLACK

$27.99

$

Usually ships in 3-6 days

0

6

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

7

Toro 78-6820-03

PLATE-BATTERY

$

$

Not available

8

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

9

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

10

Toro 94-2862

HARNESS - WIRE 15H

$

$

Not available

10:1

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

10:2

Toro 110928

FUSE-BLADE, 5 AMP

$8.49

$

Usually ships in 3-6 days

0

10:2

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

10:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

10:2

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

12

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

14

Toro 93-7276

Decal Danger (Only On: 72064

$19.99

$

Usually ships in 3-6 days

0

15

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0
