72064 (265-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) OIL PAN/LUBRICATION Parts Diagram

Lawn & Garden Tractor

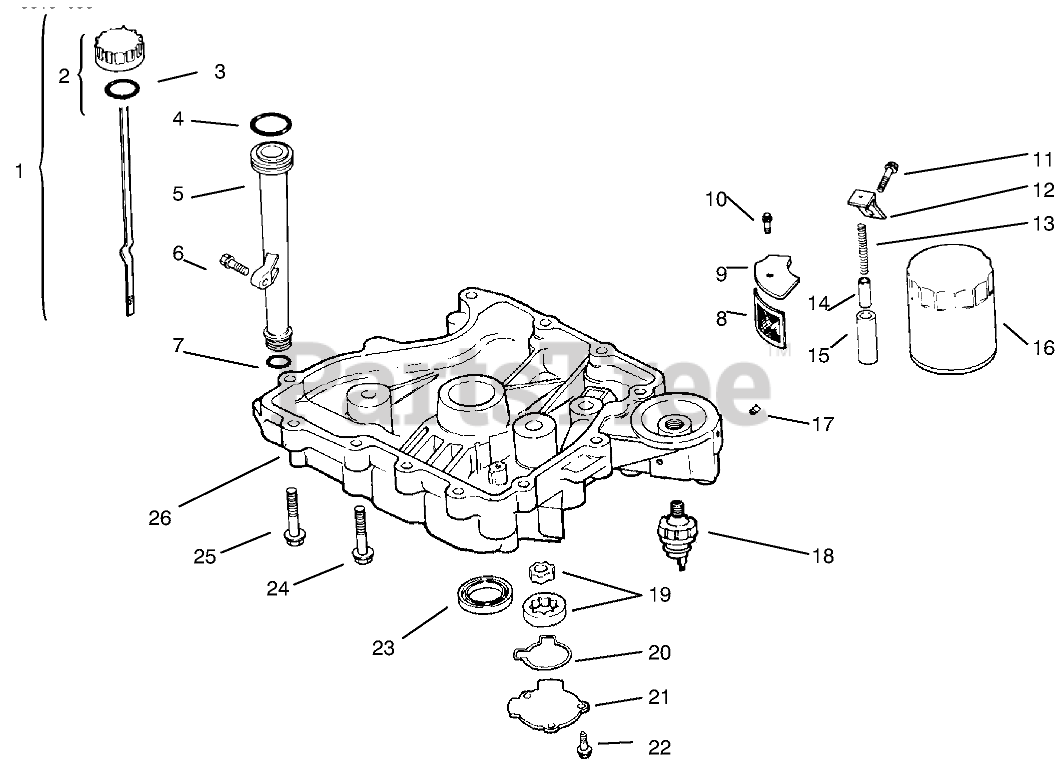

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

1203801

Dipstick INC 2-3

$

$

Not available

2

2575513

Kit-Oil Cap INC 3

Note: Included in a service kit or in an assembly

$

$

Not available

3

1215303

O Ring-Fill Cap

Note: Included in a service kit or in an assembly

$

$

Not available

4

1215302

"O" Ring-Upper Tube

$

$

Not available

5

1212304

Tube-Oil Fill

$

$

Not available

6

Kohler M-0545020

Screw

$

$

Not available

7

1215301

O Ring-Lower Fill Tube

$

$

Not available

8

1216207

Screen-Oil Pickup

$

$

Not available

9

1209603

Cover-Oil Pickup Screen

$

$

Not available

10

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

11

Kohler M-1039025

Screw
(Superseded to M-1039025-S)

$2.49

$

Usually ships in 2-5 days

0

12

1212602

Bracket-Oil Pump Relief

$

$

Not available

13

1208903

Spring-Oil Relief Valve

$

$

Not available

14

1246201

Piston-Oil Relief Valve

$

$

Not available

15

1220801

Body-Oil Relief Valve

$

$

Not available

16

1205001

Filter-Oil

$

$

Not available

17

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

18

5209906

Switch-Oil Pressure

$

$

Not available

19

1239301

Pump-Oil

$

$

Not available

20

1203204

O Ring-Oil Pump Cover

$

$

Not available

21

1209602

Cover-Oil Pump

$

$

Not available

22

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

23

1203203

Seal-Crankshaft

$

$

Not available

24

2408616

Screw M8x1.25x45

$

$

Not available

25

2408617

Screw M8x1.25x45

$

$

Not available

26

1219921

Pan-Oil

$

$

Not available

5251821

Lead-Oil Switch w/Tabs

Note: Not illustrated

$

$

Not available
