72064 (265-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) CYLINDER HEAD/VALVE/BREATHER Parts Diagram

Lawn & Garden Tractor

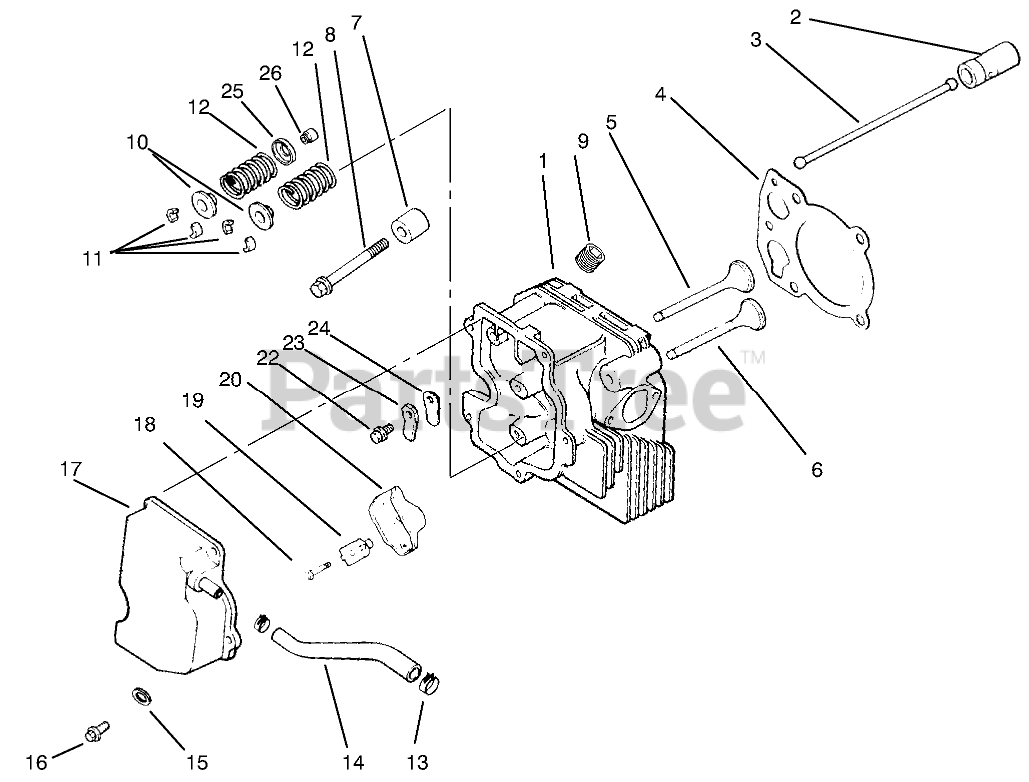

CYLINDER HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

1231815

Cylinder Head

$

$

Not available

2

Toro 1235120

Lifter-Valve

$

$

Currently unavailable

3

1241101

Rod-Push

$

$

Not available

4

1204110

Gasket-Cylinder Head

$

$

Not available

5

1201701

Valve-Intake STD

$

$

Not available

5

1201702

Valve-Intake .25

$

$

Not available

6

1201601

Valve-Exhaust STD

$

$

Not available

6

1201602

Valve-Exhaust .25

$

$

Not available

7

1211213

Spacer-Head Bolt Exhaust

$

$

Not available

8

1208615

Screw M10x1.5x80

$

$

Not available

9

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

10

1217301

Cap-Valve Spring

$

$

Not available

11

1275503

Kit-Retainer

$

$

Not available

12

1208901

Spring-Valve

$

$

Not available

13

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

14

1232603

Hose-Breather

$

$

Not available

15

1246805

Washer-Flat

$

$

Not available

16

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

17

1209607

Cover-Valve w/Nipple

$

$

Not available

18

Kohler M-0640034

Screw

$

$

Not available

19

1259903

Pivot-Rocket Arm

$

$

Not available

20

2518601

Arm-Rocker

$

$

Not available

22

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

23

1201801

Retainer-Breather Reed

$

$

Not available

24

2440202

Reed-Breather

$

$

Not available

25

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

26

2403205

Seal-Valve Stem

$

$

Not available

1275563

Kit-Cylinder Head (Incl. 3-12,17-20 25 & 26)

Note: Not illustrated

$

$

Not available
